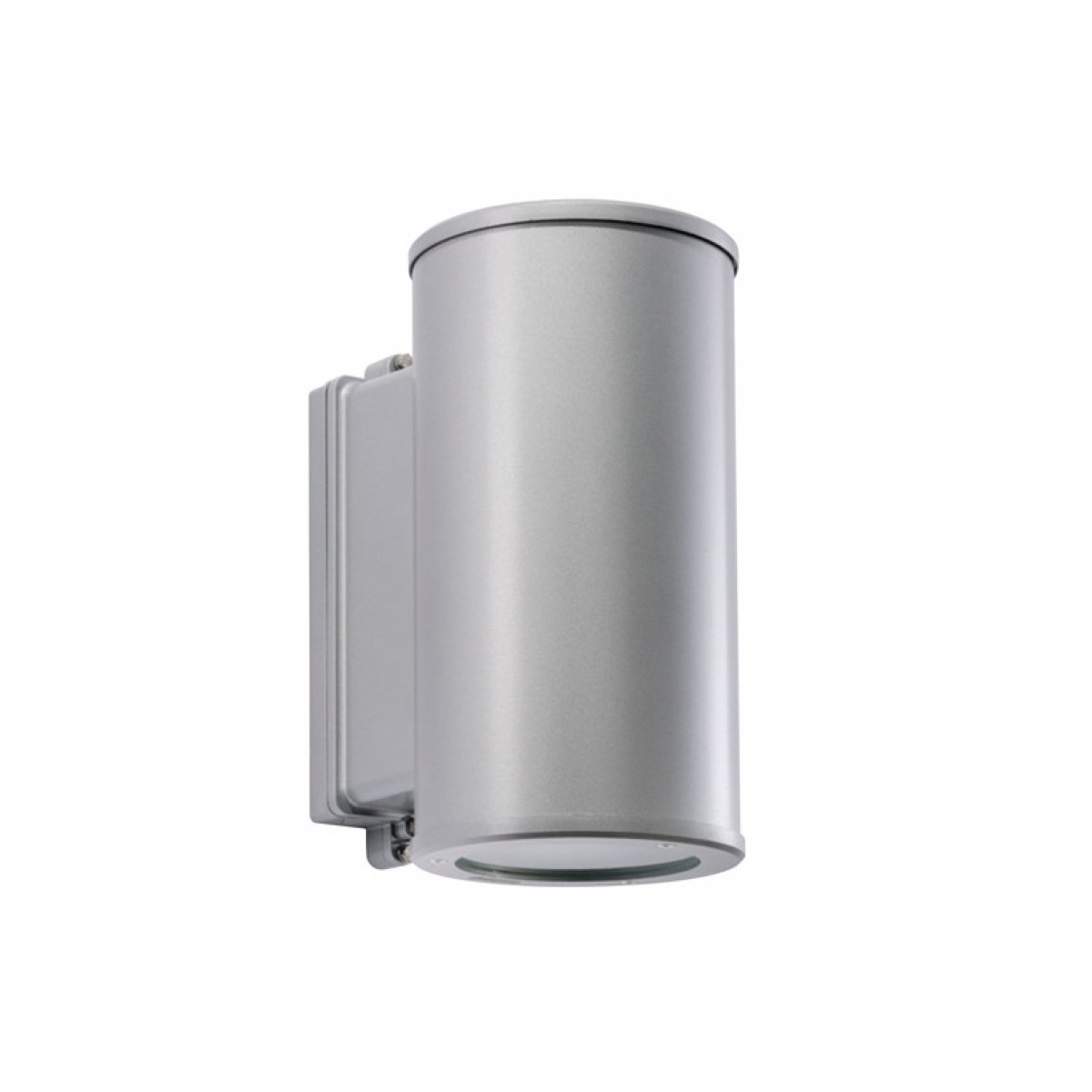

Spectre Wall

IP65 wall mounted luminaire for outdoor applications

IK08

IP65

Please note this product has been withdrawn. Contact us for alternative.

Spectre Wall

Optics

Direct/indirect distribution
4000K and 3000K LED options
Internal anodised aluminium reflector
4mm thick clear toughened glass visor

Body

IP65, IK08 protection rated
Die cast aluminium body
Finished in silver/grey RAL 9007
Primed and coated for resistance to corrosive and saline environments
For outdoor applications within 3km of the coast, an enhanced paint finish can be offered on request
Fixed output as standard, DALI optional
Requires dedicated wall mounting bracket, to be ordered separately

Family Datasheet

Product Downloads

Direct/Indirect
4000K LED	Fixed Output		LL/CW	L70
2663 lumen, 45.6W LED	SWTLH24K		58	50k
DIALux Relux .ldt .ies Revit

Accessories

Essential wall bracket		SWBKT

Options

DALI dimming	Change 'H' to 'Y'	ie. SWTLY24K
3000K	Change 4K to 3K	i.e. SWTLH23K

This product uses 1 DALI driver

Dimensions Diagram 1

L	W	H	KG	FC (W)	FC (H)
280	185	350	6.9	72	210

Cable entry 95mm below centre of mounting bracket to hole centre, suitable for 9-12mm diameter cable

Photometic Performance

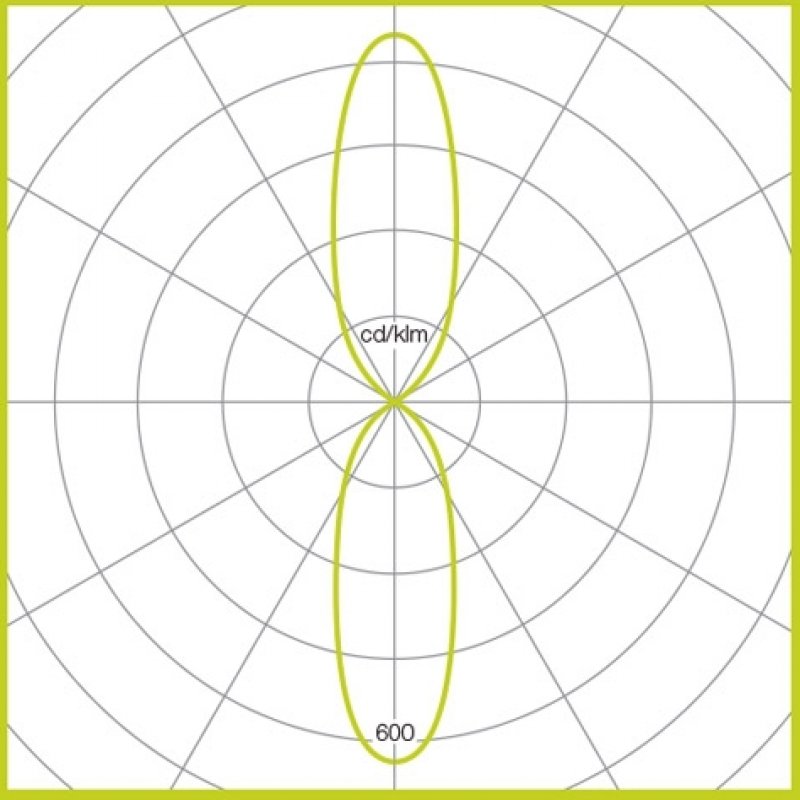

Photometic Performance Diagram - Direct/Indirect LED 2663 Lumens

Direct/Indirect LED 2663 Lumens

LOR = 100.0%

LED Performance

Colour Temp	RA (CRI)	Colour consistency
4000K	>90	MacAdam 3 SDCM

Spectre Wall mounted IP65 direct only or direct/indirect luminaire. Die cast alluminium body with toughened glass visor. Primed and coated for resistance to corrosion and saline environments. Requires wall mounting bracket, supplied separately - as Whitecroft SPECTRE WALL
