ACL Xtreme

Surface mounted linear LED luminaire suitable for outdoor locations.

ACL Xtreme

Overview

ACL Xtreme - Openable tubular luminaire with high lumen output LED luminaire for outdoor applications. Resistant to chemicals and UV radiation. Supplied with LiFePO4 integral emergency kit.

Optics

Output options between 2000 to 6000 lumens (15 to 38W)
4000K LED
L80 100,00 hours at 35ºC
Fixed output or DALI driver option
Integrated 3 hour LiFeP04. 3hr Keyswitch (EM), auto-test (EP) and wireless auto-test (EW) availabe.
LiFeP04 offers several benefits versus NiCAD battery technology:
- Improved Warranty (5 years)
- Reduced energy in operation (up to 45%)
- Longer Life (6-8 years)
- Increased switching cycles
- Lower embodied carbon

Emergency: 455lm

Body

IP69, IK10 rated protection
Suitable for mounting on solid substrates (walls and ceilings) in exposed outdoor locations
High thickness PMMA, clear finish profile
High-temperature resistant MVQ silicone gasket
PA66 + fibreglass black finished end-caps
Fire protection:
- Flammability (UL94): HB
- Glow wire test (EN 60695-2-11): 650º
Suitable for ambient temperature ranges: -40 to 50ºC
Please note that this product is not suitable for costal applications up to 3km from the shore. For more information, please contact Whitecroft lighting.

Family Datasheet

Product Downloads

ACL Xtreme 2000lumens

Number of Parts: 6

Info & Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Emergency Type	Length / Diameter (mm)	Driver Type	Downloads
AZLH14K	2000	15	N/A	888	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2000},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLH14KLEM	2000	15	3 hr EM LiFeP04	888	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2000},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLH14KLEP	2000	15	3 hr EP LiFeP04	888	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2000},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY14K	2000	15	N/A	888	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2000},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY14KLEM	2000	15	3 hr EM LiFeP04	888	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2000},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY14KLEP	2000	15	3 hr EP LiFeP04	888	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2000},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}

ACL Xtreme 4000lumens

Number of Parts: 6

Info & Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Emergency Type	Length / Diameter (mm)	Driver Type	Downloads
AZLH24K	4000	27	N/A	1451	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4000},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLH24KLEM	4000	27	3 hr EM LiFeP04	1451	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4000},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLH24KLEP	4000	27	3 hr EP LiFeP04	1451	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4000},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY24K	4000	27	N/A	1451	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4000},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY24KLEM	4000	27	3 hr EM LiFeP04	1451	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4000},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY24KLEP	4000	27	3 hr EP LiFeP04	1451	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4000},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}

ACL Xtreme 6000lumens

Number of Parts: 6

Info & Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Emergency Type	Length / Diameter (mm)	Driver Type	Downloads
AZLH34K	6000	38	N/A	1732	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6000},{"Name":"Circuit Watts","Value":38},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":157.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLH34KLEM	6000	38	3 hr EM LiFeP04	1732	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6000},{"Name":"Circuit Watts","Value":38},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":157.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLH34KLEP	6000	38	3 hr EP LiFeP04	1732	Fixed Output	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6000},{"Name":"Circuit Watts","Value":38},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":157.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY34K	6000	38	N/A	1732	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6000},{"Name":"Circuit Watts","Value":38},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":157.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY34KLEM	6000	38	3 hr EM LiFeP04	1732	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6000},{"Name":"Circuit Watts","Value":38},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":157.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}
AZLY34KLEP	6000	38	3 hr EP LiFeP04	1732	DALI LED Driver	View	[{"Name":"LED Life Performance","Value":"100K"},{"Name":"Emergency Output","Value":455},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6000},{"Name":"Circuit Watts","Value":38},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":157.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"ACL-XTREME-p2.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"ACL-XTREME-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"ACL-XTREME-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AZLH34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AZLH34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AZLH34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"ACL-Xtreme_LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"ACL-Xtreme_ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"ACL-Xtreme_IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"ACL-Xtreme_REVIT.zip"}}

VERSION	X	Xm	Y	W1	KG
2000lm	888	725	125	138	3.6
4000lm	1451	1287	125	138	5.3
6000lm	1732	1569	125	138	6.2

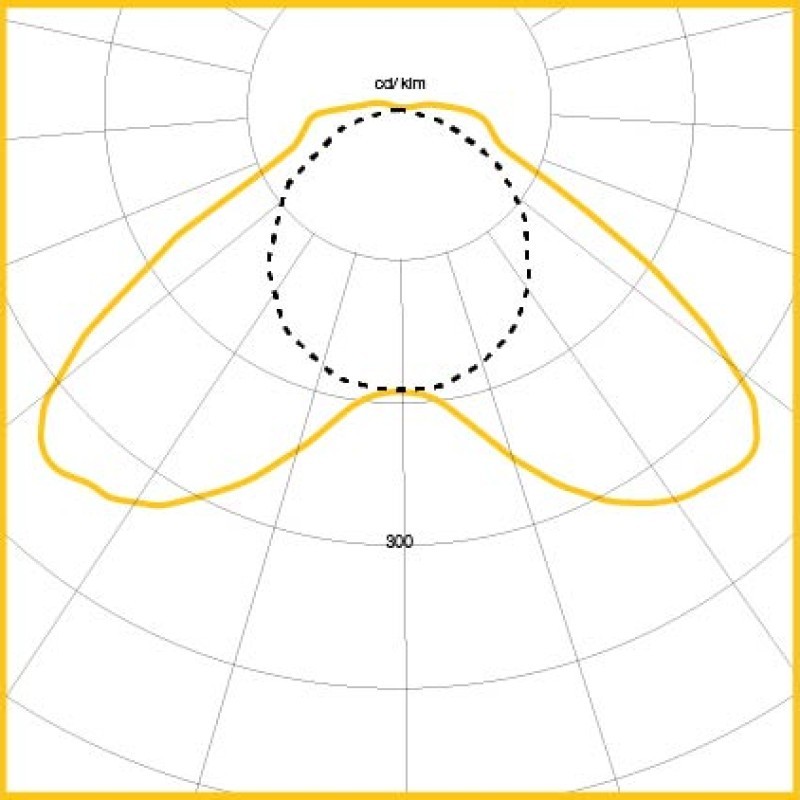

Photometic Performance

LOR = 100%

LED Performance

Colour Temp	RA (CRI)	Life expectancy
4000K	CRI80	L80 100,00 hours at 35ºC

IP69 surface mounted LED luminaire for outdoor applications. – as Whitecroft Lighting ACL XTREME

Product Downloads

Download

Add to ZIP

PDF ACL Xtreme Datasheet

ZIP ACL-Xtreme_LDT

ZIP ACL-Xtreme_IES

ZIP ACL-Xtreme_ULD

PDF Installation leaflet

ZIP ACL-Xtreme_REVIT
