LDR65

LDR65

LDR65

LDR65

Optics

  • 650 lumen (9W) COB
  • Available with 3000K and 4000K LED
  • Multi-faceted reflector
  • IP65 as standard

Body

  • Cast aluminium body & heatsink
  • 85mm twist lock white steel bezel with IP rated ceiling gasket
  • Fire rated FR90
  • Multi-faceted, high grade anodised aluminium reflector with clear glass front
  • Ceiling mounting springs
  • For ceiling thicknesses up to 30mm
  • Supplied complete with remote mounted driver
4000k LL/CW L70 B50
L80
L90
Fixed Output LDR65H4KW 73 >100k >100k >100k
DALI LDR65Y4KW 73 >100k >100k >100k

For 3000K colour temperature, please contact Whitecroft

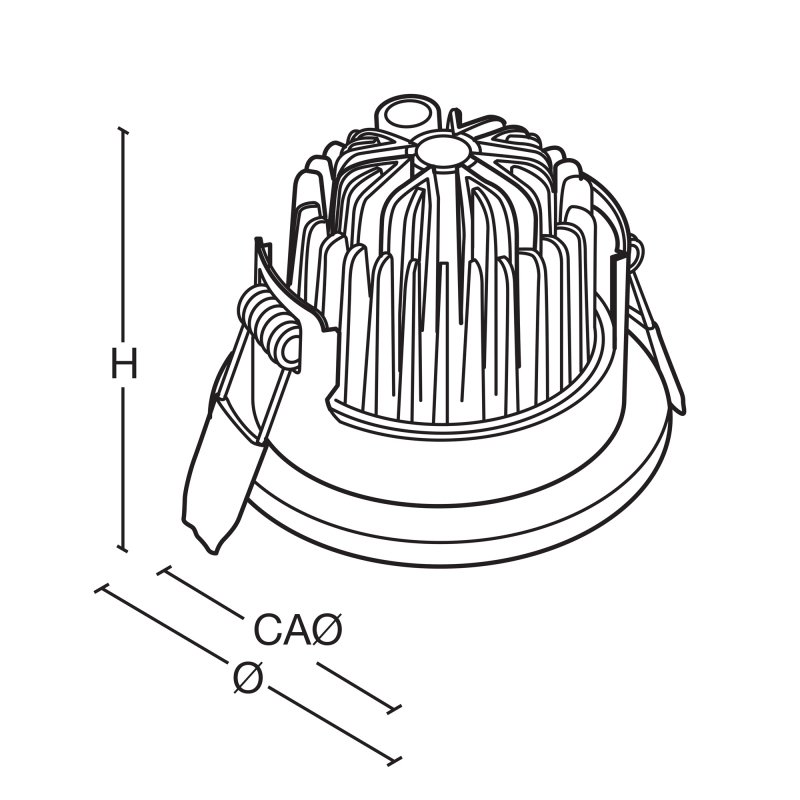

Dimensions Diagram 1
H KG Ø CAØ
60 0.4 85 73

Photometic Performance

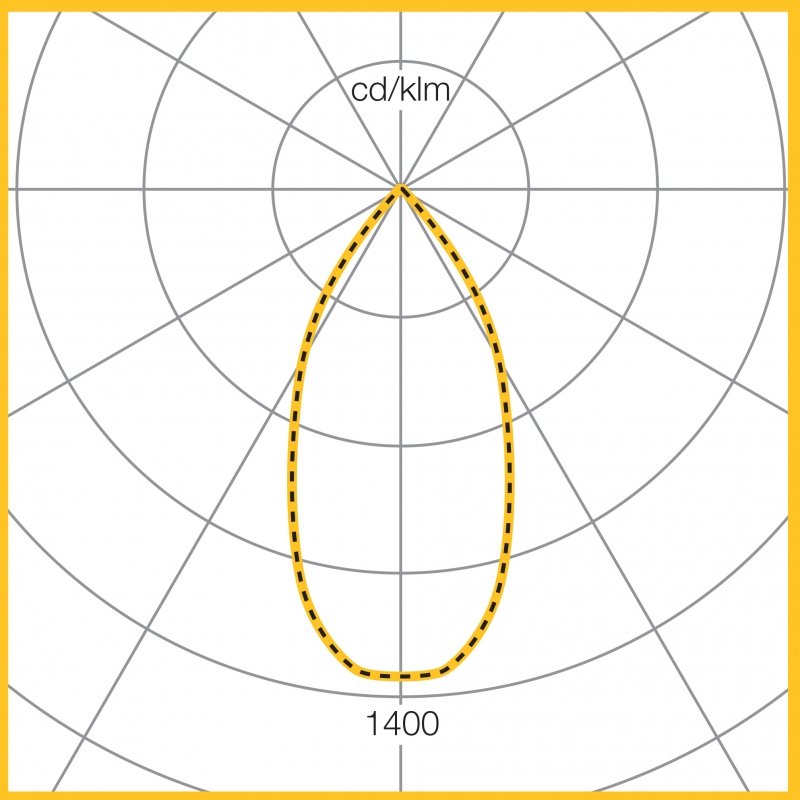

Photometic Performance Diagram - 9W LED 650 lumens
9W LED 650 lumens
LOR = 100%
SHR MAX = 1.05

LED Performance

Colour Temp RA (CRI) Colour consistency
4000K >80 MacAdam 3 SDCM

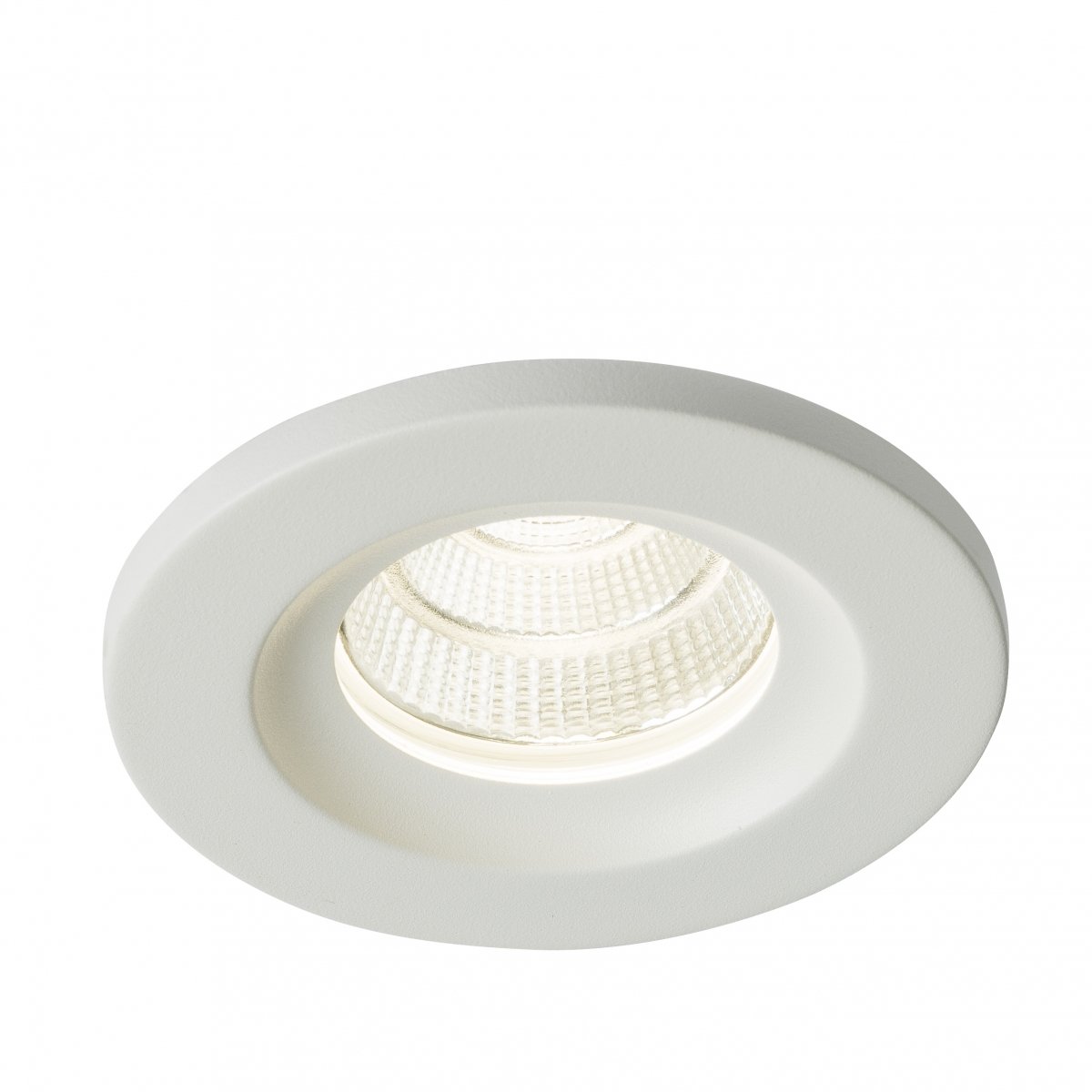

IP65 recessed LED downlight with cast aluminium body and heatsink. Multi-faceted anodised aluminium reflector with clear glass front – as Whitecroft Lighting LDR65.
