SQ165 White/Semi-Specular

SQ165 White/Semi-Specular

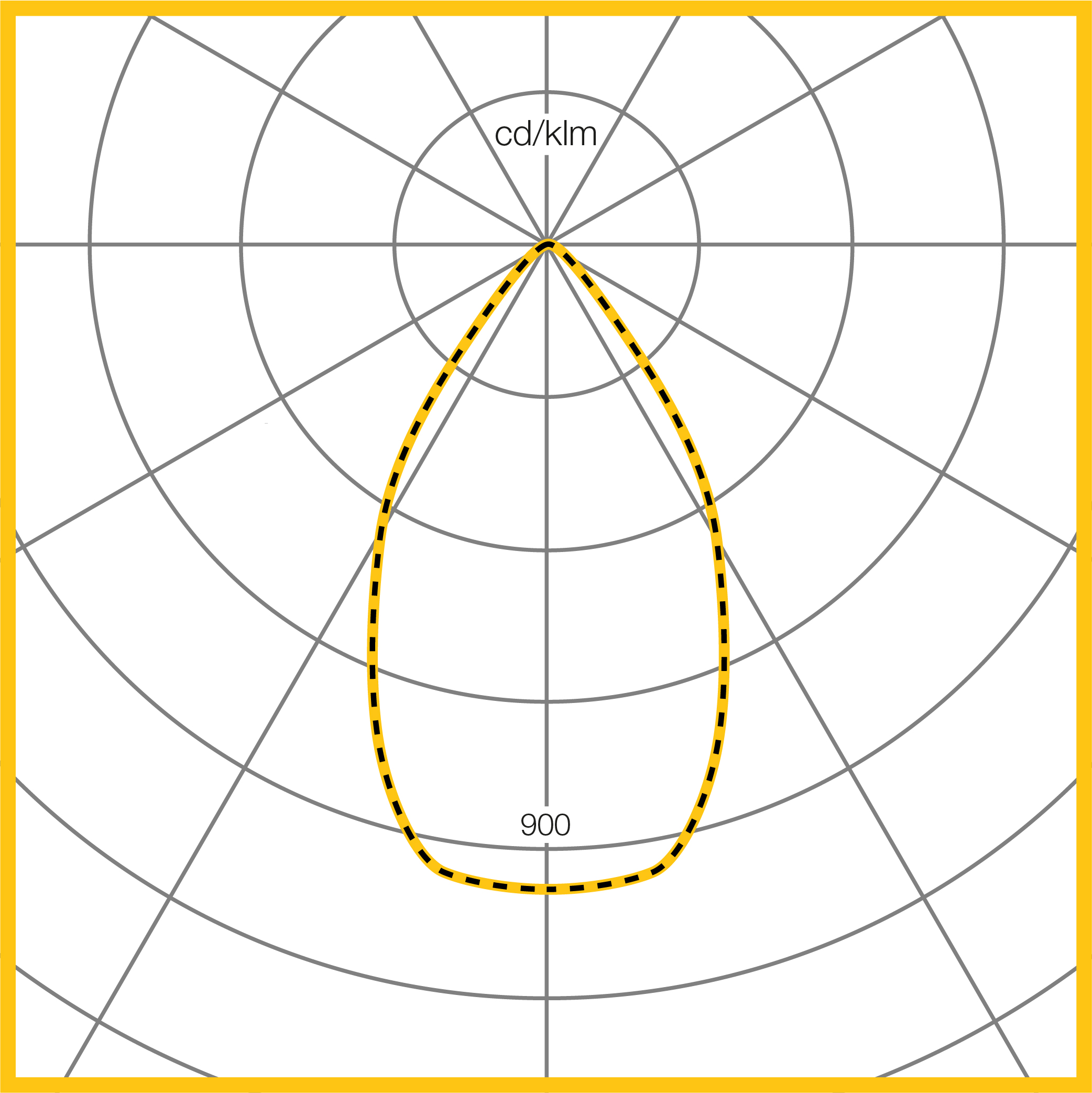

SQ165 White/Specular

SQ165 White/Specular

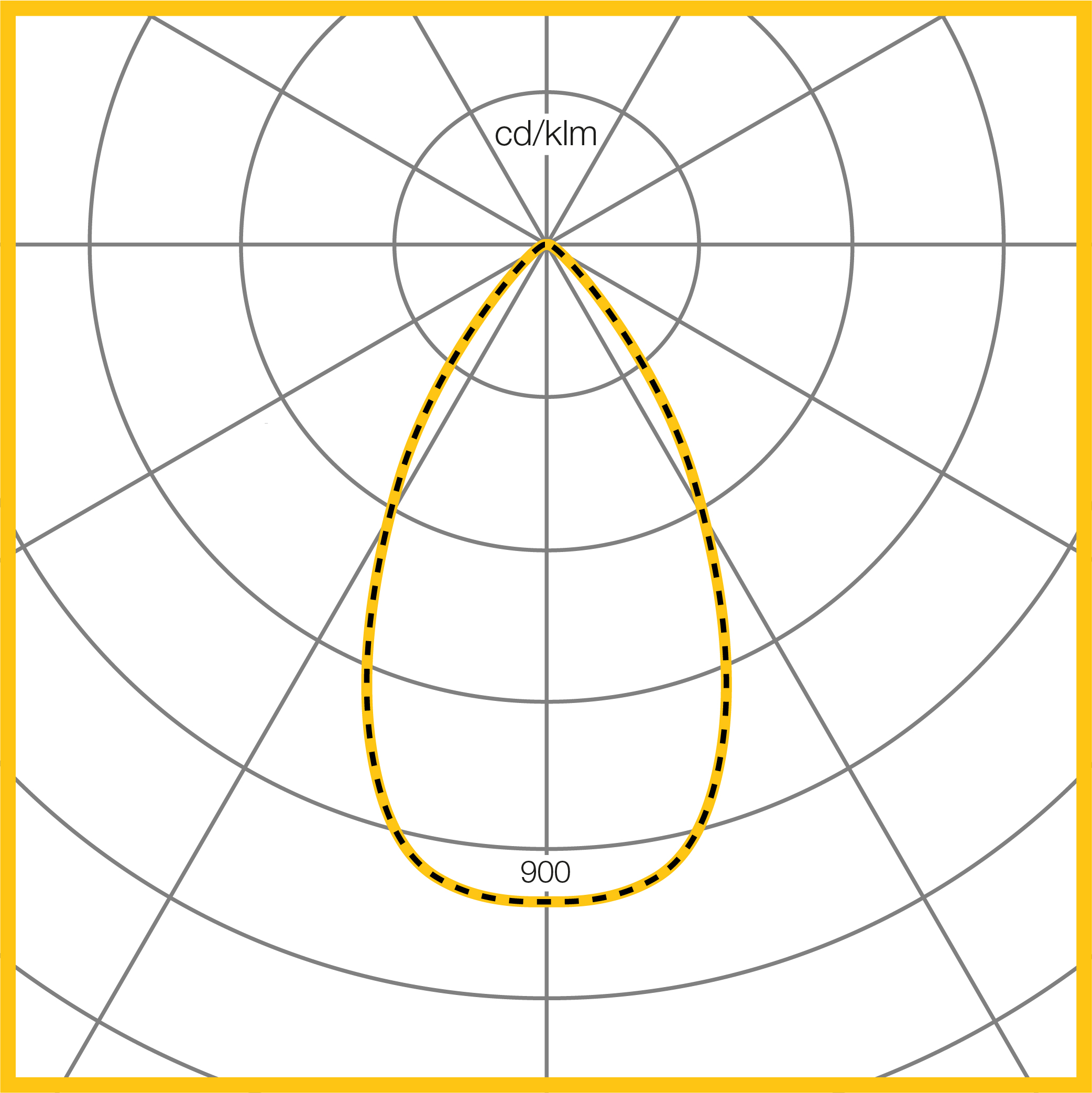

SQ165 White/White

SQ165 White/White

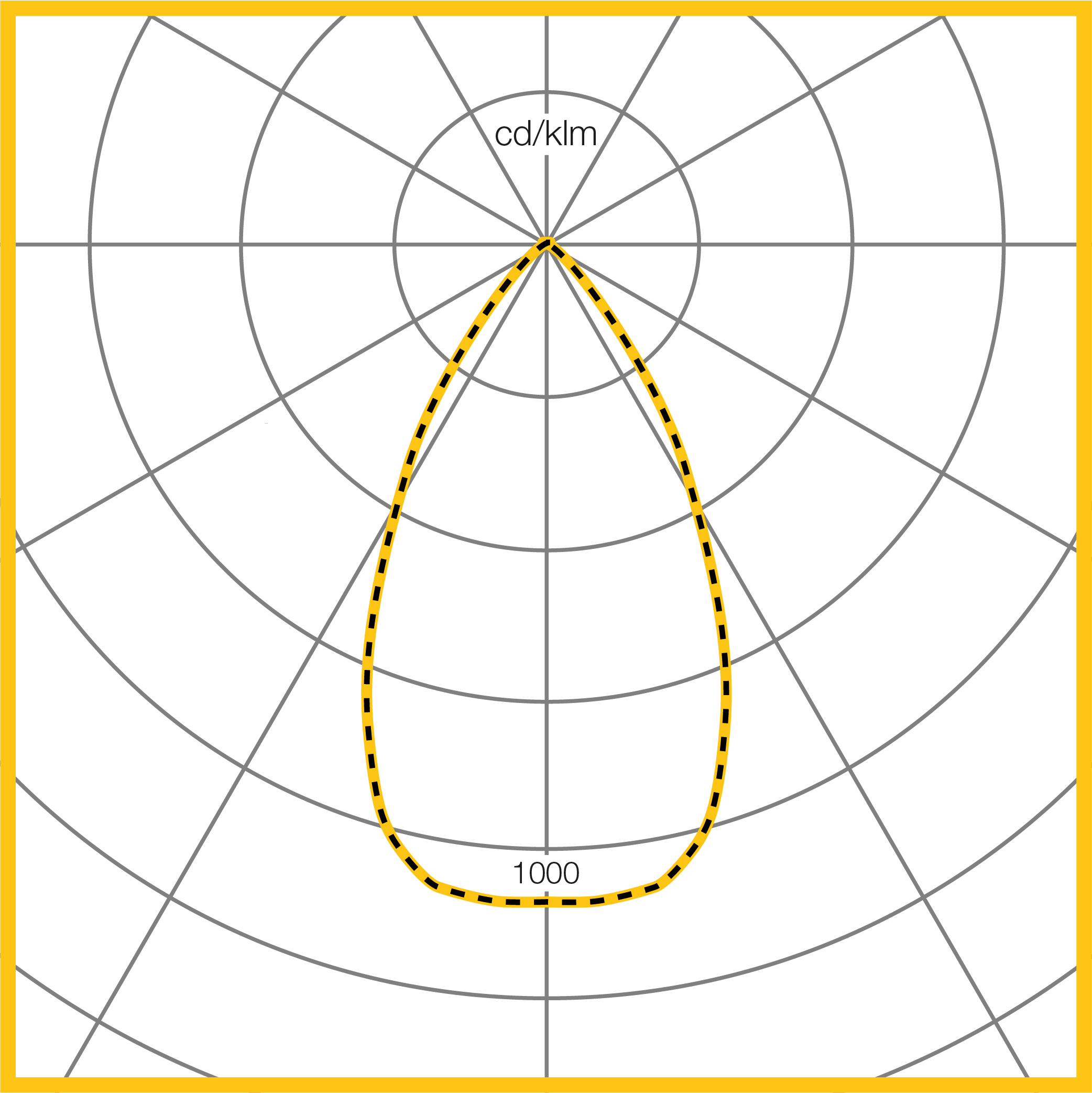

SQ165 Black/Black

SQ165 Black/Black

SQ165 White/Semi-Specular

SQ165 White/Semi-Specular

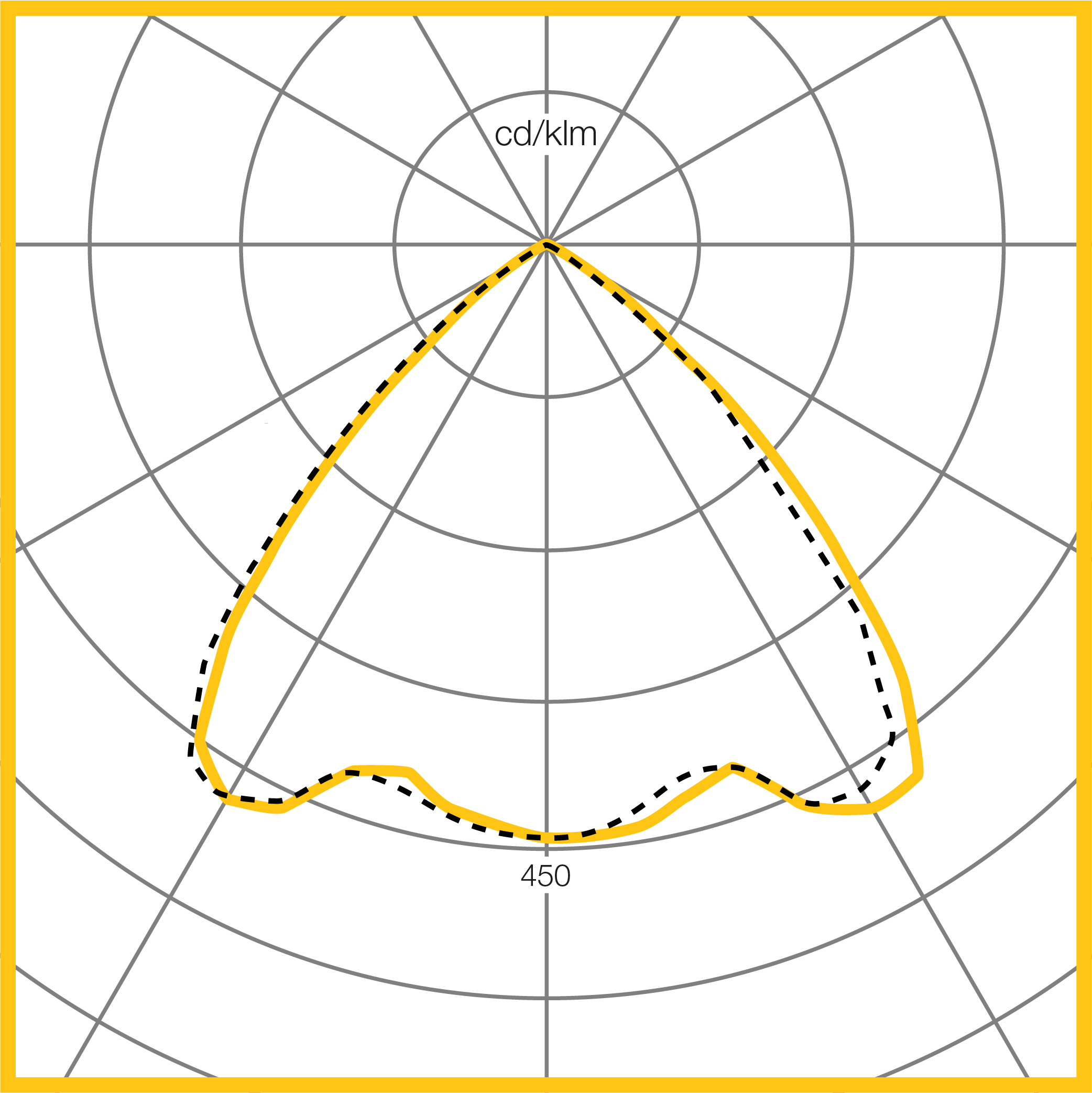

SQ165 White/Specular

SQ165 White/Specular

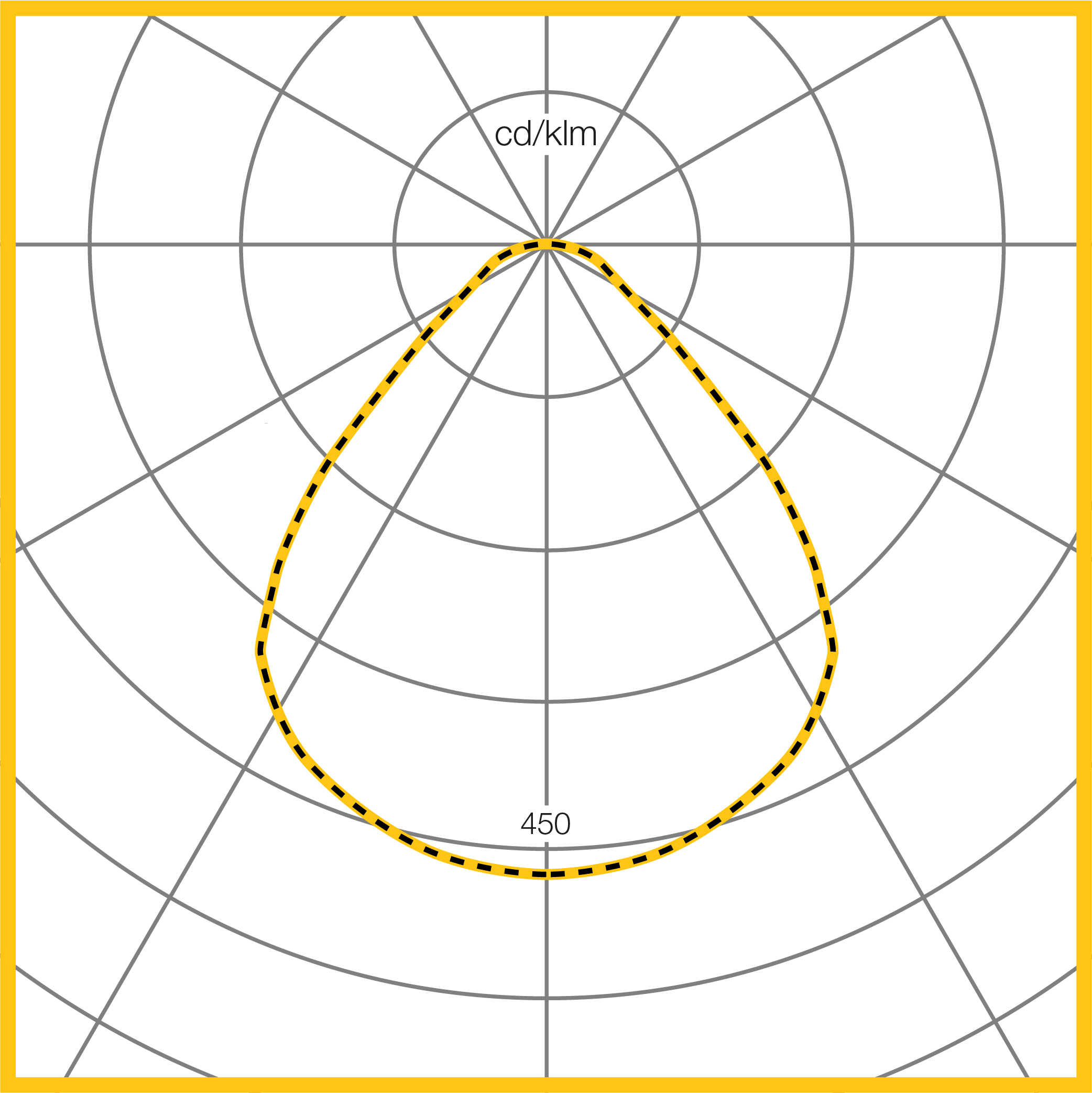

SQ165 White/White

SQ165 White/White

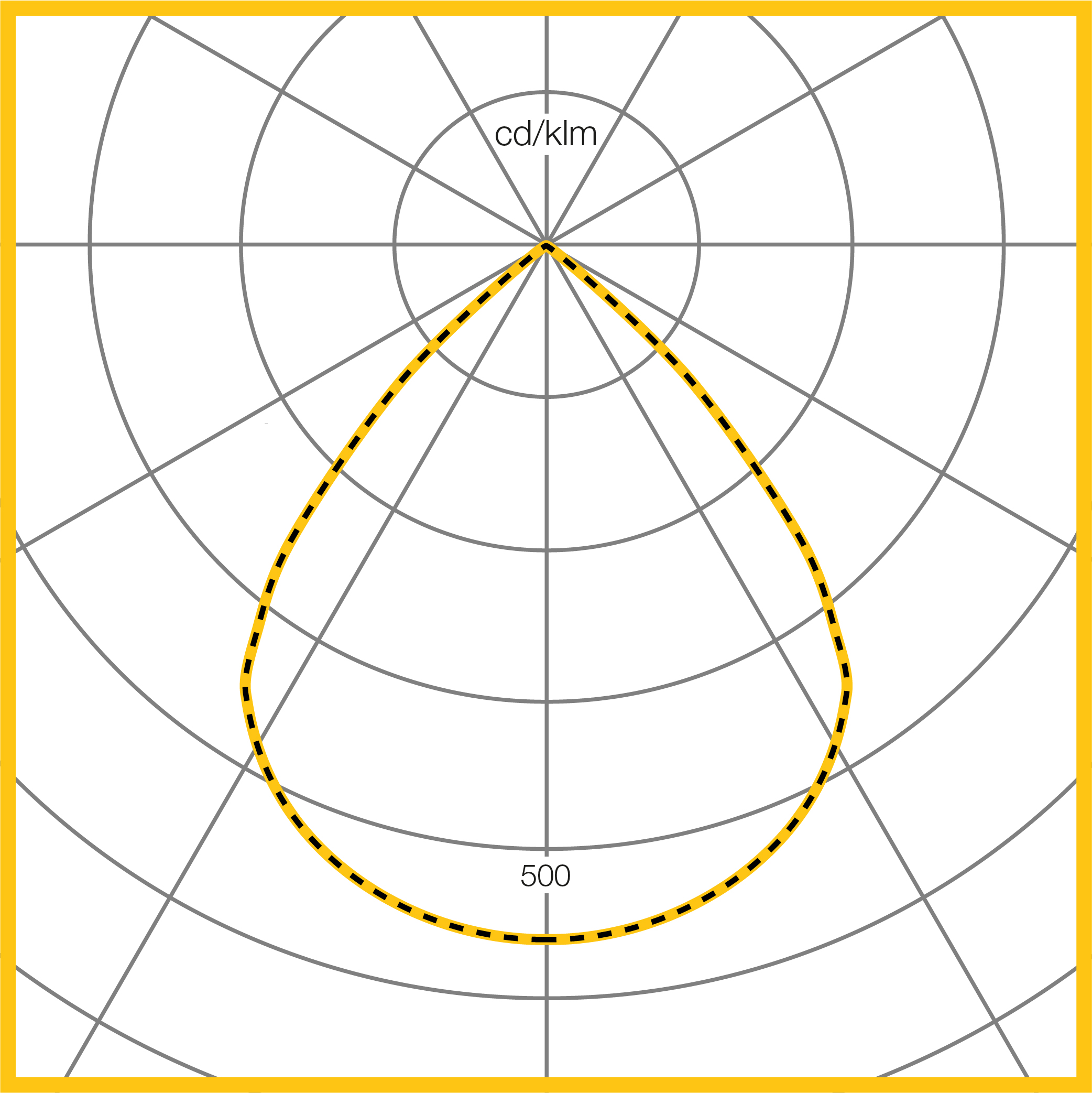

SQ165 Black/Black

SQ165 Black/Black

Overview

The Mirage 3 SQ165 series features a range of outputs, choice of four reflector finishes and a two distribution patterns offering a flexible solution to suit a mulitude of applications.

Optics

  • Light outputs ranging from 512 lumens to 4086 lumens
  • Efficacies up to 126.9 ll/cw
  • Available in four reflector finishes:
     - Black
     - White
     - Semi-Specular
     - Specular
  • Available with colour temperature of 3000K and 4000K
  • Ra80 and Ra90 colour rendering as standard
  • Medium and wide beam distributions ideal for general area lighting



















Lifetime Data
Version L70B50 L80B50 L90B50
8.4W >100K >100K 65K
16.6W >100K >100K 65K
26.5W >100K >100K 65K
35W >100K 86K 41K



Emergency Outputs
Version Medium Beam Wide Beam
8.4W 41% 41%
16,6W 20% 20%
26.5W 12% 12%
35W 9% 9%



Body

  • Precision injection moulded reflectors available in black, white, semi-specular and specular
  • Slim 11mm bezel finished in:
    • Black, closest RAL colour 9005
    • White, closest RAL colour 9003
  • Graphite embedded heatsink
  • Rapid installation guaranteed with simple spring assembly
  • Luminaire supplied complete with driver
  • Suitable for ceilings 1-50mm thick
  • Integral emergency options; 3hr and COMEPS
  • Also available with 'EW' Routefinder Wireless for addressable emergency testing without the need for a 2 core communication cable.

Click on part code below for downloads

Part Code Product Colour Colour Temperature Driver Type Emergency Type Distribution Length / Diameter (mm) Output (lm) Power (W) Accessory
M4MY24K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 1017 8.4 N
M4MY24K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 1017 8.4 N
M4MY24K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 1017 8.4 N
M4MY34K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 2030 16.6 N
M4MY34K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 2030 16.6 N
M4MY34K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 2030 16.6 N
M4MY44K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 3070 26.5 N
M4MY44K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 3070 26.5 N
M4MY44K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 3070 26.5 N
M4MY54K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 3984 35 N
M4MY54K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 3984 35 N
M4MY54K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 3984 35 N
M4WY24K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 1013 8.4 N
M4WY24K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 1013 8.4 N
M4WY24K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 1013 8.4 N
M4WY34K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 2011 16.6 N
M4WY34K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 2011 16.6 N
M4WY34K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 2011 16.6 N
M4WY44K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 3027 26.5 N
M4WY44K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 3027 26.5 N
M4WY44K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 3027 26.5 N
M4WY54K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 3927 35 N
M4WY54K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 3927 35 N
M4WY54K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 3927 35 N
M4MH24K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 1017 8.4 N
M4MH24K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 1017 8.4 N
M4MH24K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 1017 8.4 N
M4MH34K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 2030 16.6 N
M4MH34K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 2030 16.6 N
M4MH34K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 2030 16.6 N
M4MH44K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 3070 26.5 N
M4MH44K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 3070 26.5 N
M4MH44K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 3070 26.5 N
M4MH54K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 3984 35 N
M4MH54K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 3984 35 N
M4MH54K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 3984 35 N
M4WH24K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 1013 8.4 N
M4WH24K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 1013 8.4 N
M4WH24K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 1013 8.4 N
M4WH34K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 2011 16.6 N
M4WH34K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 2011 16.6 N
M4WH34K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 2011 16.6 N
M4WH44K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 3027 26.5 N
M4WH44K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 3027 26.5 N
M4WH44K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 3027 26.5 N
M4WH54K8M1 SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 3927 35 N
M4WH54K8M1EM SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 3927 35 N
M4WH54K8M1EP SemiSpec Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 3927 35 N
M4MY23K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 945.81 8.4 N
M4MY23K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 945.81 8.4 N
M4MY23K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 945.81 8.4 N
M4MY33K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 1887.9 16.6 N
M4MY33K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 1887.9 16.6 N
M4MY33K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 1887.9 16.6 N
M4MY43K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 2855.1 26.5 N
M4MY43K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 2855.1 26.5 N
M4MY43K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 2855.1 26.5 N
M4MY53K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 3705.12 35 N
M4MY53K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 3705.12 35 N
M4MY53K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 3705.12 35 N
M4WY23K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Wide 173 942.09 8.4 N
M4WY23K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Wide 173 942.09 8.4 N
M4WY23K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Wide 173 942.09 8.4 N
M4WY33K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Wide 173 1870.23 16.6 N
M4WY33K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Wide 173 1870.23 16.6 N
M4WY33K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Wide 173 1870.23 16.6 N
M4WY43K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Wide 173 2815.11 26.5 N
M4WY43K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Wide 173 2815.11 26.5 N
M4WY43K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Wide 173 2815.11 26.5 N
M4WY53K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Wide 173 3652.11 35 N
M4WY53K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Wide 173 3652.11 35 N
M4WY53K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Wide 173 3652.11 35 N
M4MH23K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Medium 173 945.81 8.4 N
M4MH23K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Medium 173 945.81 8.4 N
M4MH23K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Medium 173 945.81 8.4 N
M4MH33K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Medium 173 1887.9 16.6 N
M4MH33K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Medium 173 1887.9 16.6 N
M4MH33K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Medium 173 1887.9 16.6 N
M4MH43K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Medium 173 2855.1 26.5 N
M4MH43K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Medium 173 2855.1 26.5 N
M4MH43K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Medium 173 2855.1 26.5 N
M4MH53K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Medium 173 3705.12 35 N
M4MH53K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Medium 173 3705.12 35 N
M4MH53K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Medium 173 3705.12 35 N
M4WH23K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Wide 173 942.09 8.4 N
M4WH23K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Wide 173 942.09 8.4 N
M4WH23K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Wide 173 942.09 8.4 N
M4WH33K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Wide 173 1870.23 16.6 N
M4WH33K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Wide 173 1870.23 16.6 N
M4WH33K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Wide 173 1870.23 16.6 N
M4WH43K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Wide 173 2815.11 26.5 N
M4WH43K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Wide 173 2815.11 26.5 N
M4WH43K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Wide 173 2815.11 26.5 N
M4WH53K8M1 SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output N/A Wide 173 3652.11 35 N
M4WH53K8M1EM SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output 3hr Maint Wide 173 3652.11 35 N
M4WH53K8M1EP SemiSpec Reflector,White Bezel 3000K, RA80 Fixed Output COMEPS Wide 173 3652.11 35 N
M4MY24K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Medium 173 844.11 8.4 N
M4MY24K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Medium 173 844.11 8.4 N
M4MY24K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Medium 173 844.11 8.4 N
M4MY34K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Medium 173 1684.9 16.6 N
M4MY34K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Medium 173 1684.9 16.6 N
M4MY34K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Medium 173 1684.9 16.6 N
M4MY44K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Medium 173 2548.1 26.5 N
M4MY44K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Medium 173 2548.1 26.5 N
M4MY44K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Medium 173 2548.1 26.5 N
M4MY54K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Medium 173 3306.72 35 N
M4MY54K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Medium 173 3306.72 35 N
M4MY54K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Medium 173 3306.72 35 N
M4WY24K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Wide 173 840.79 8.4 N
M4WY24K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Wide 173 840.79 8.4 N
M4WY24K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Wide 173 840.79 8.4 N
M4WY34K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Wide 173 1669.13 16.6 N
M4WY34K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Wide 173 1669.13 16.6 N
M4WY34K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Wide 173 1669.13 16.6 N
M4WY44K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Wide 173 2512.41 26.5 N
M4WY44K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Wide 173 2512.41 26.5 N
M4WY44K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Wide 173 2512.41 26.5 N
M4WY54K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver N/A Wide 173 3259.41 35 N
M4WY54K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver 3hr Maint Wide 173 3259.41 35 N
M4WY54K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 DALI LED Driver COMEPS Wide 173 3259.41 35 N
M4MH24K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Medium 173 844.11 8.4 N
M4MH24K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Medium 173 844.11 8.4 N
M4MH24K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Medium 173 844.11 8.4 N
M4MH34K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Medium 173 1684.9 16.6 N
M4MH34K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Medium 173 1684.9 16.6 N
M4MH34K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Medium 173 1684.9 16.6 N
M4MH44K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Medium 173 2548.1 26.5 N
M4MH44K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Medium 173 2548.1 26.5 N
M4MH44K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Medium 173 2548.1 26.5 N
M4MH54K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Medium 173 3306.72 35 N
M4MH54K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Medium 173 3306.72 35 N
M4MH54K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Medium 173 3306.72 35 N
M4WH24K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Wide 173 840.79 8.4 N
M4WH24K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Wide 173 840.79 8.4 N
M4WH24K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Wide 173 840.79 8.4 N
M4WH34K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Wide 173 1669.13 16.6 N
M4WH34K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Wide 173 1669.13 16.6 N
M4WH34K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Wide 173 1669.13 16.6 N
M4WH44K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Wide 173 2512.41 26.5 N
M4WH44K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Wide 173 2512.41 26.5 N
M4WH44K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Wide 173 2512.41 26.5 N
M4WH54K9M1 SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output N/A Wide 173 3259.41 35 N
M4WH54K9M1EM SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output 3hr Maint Wide 173 3259.41 35 N
M4WH54K9M1EP SemiSpec Reflector,White Bezel 4000K, Ra90 Fixed Output COMEPS Wide 173 3259.41 35 N
M4MY23K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Medium 173 783.09 8.4 N
M4MY23K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Medium 173 783.09 8.4 N
M4MY23K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Medium 173 783.09 8.4 N
M4MY33K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Medium 173 1563.1 16.6 N
M4MY33K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Medium 173 1563.1 16.6 N
M4MY33K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Medium 173 1563.1 16.6 N
M4MY43K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Medium 173 2363.9 26.5 N
M4MY43K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Medium 173 2363.9 26.5 N
M4MY43K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Medium 173 2363.9 26.5 N
M4MY53K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Medium 173 3067.68 35 N
M4MY53K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Medium 173 3067.68 35 N
M4MY53K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Medium 173 3067.68 35 N
M4WY23K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Wide 173 780.01 8.4 N
M4WY23K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Wide 173 780.01 8.4 N
M4WY23K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Wide 173 780.01 8.4 N
M4WY33K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Wide 173 1548.47 16.6 N
M4WY33K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Wide 173 1548.47 16.6 N
M4WY33K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Wide 173 1548.47 16.6 N
M4WY43K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Wide 173 2330.79 26.5 N
M4WY43K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Wide 173 2330.79 26.5 N
M4WY43K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Wide 173 2330.79 26.5 N
M4WY53K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver N/A Wide 173 3023.79 35 N
M4WY53K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver 3hr Maint Wide 173 3023.79 35 N
M4WY53K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 DALI LED Driver COMEPS Wide 173 3023.79 35 N
M4MH23K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Medium 173 783.09 8.4 N
M4MH23K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Medium 173 783.09 8.4 N
M4MH23K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Medium 173 783.09 8.4 N
M4MH33K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Medium 173 1563.1 16.6 N
M4MH33K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Medium 173 1563.1 16.6 N
M4MH33K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Medium 173 1563.1 16.6 N
M4MH43K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Medium 173 2363.9 26.5 N
M4MH43K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Medium 173 2363.9 26.5 N
M4MH43K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Medium 173 2363.9 26.5 N
M4MH53K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Medium 173 3067.68 35 N
M4MH53K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Medium 173 3067.68 35 N
M4MH53K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Medium 173 3067.68 35 N
M4WH23K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Wide 173 780.01 8.4 N
M4WH23K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Wide 173 780.01 8.4 N
M4WH23K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Wide 173 780.01 8.4 N
M4WH33K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Wide 173 1548.47 16.6 N
M4WH33K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Wide 173 1548.47 16.6 N
M4WH33K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Wide 173 1548.47 16.6 N
M4WH43K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Wide 173 2330.79 26.5 N
M4WH43K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Wide 173 2330.79 26.5 N
M4WH43K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Wide 173 2330.79 26.5 N
M4WH53K9M1 SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output N/A Wide 173 3023.79 35 N
M4WH53K9M1EM SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output 3hr Maint Wide 173 3023.79 35 N
M4WH53K9M1EP SemiSpec Reflector,White Bezel 3000K, RA90 Fixed Output COMEPS Wide 173 3023.79 35 N

Click on part code below for downloads

Part Code Product Colour Colour Temperature Driver Type Emergency Type Distribution Length / Diameter (mm) Output (lm) Power (W) Accessory
M4MY24K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 1036 8.4 N
M4MY24K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 1036 8.4 N
M4MY24K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 1036 8.4 N
M4MY34K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 2064 16.6 N
M4MY34K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 2064 16.6 N
M4MY34K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 2064 16.6 N
M4MY44K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 3105 26.5 N
M4MY44K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 3105 26.5 N
M4MY44K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 3105 26.5 N
M4MY54K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Medium 173 4029 35 N
M4MY54K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Medium 173 4029 35 N
M4MY54K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Medium 173 4029 35 N
M4WY24K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 1066 8.4 N
M4WY24K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 1066 8.4 N
M4WY24K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 1066 8.4 N
M4WY34K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 2083 16.6 N
M4WY34K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 2083 16.6 N
M4WY34K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 2083 16.6 N
M4WY44K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 3084 26.5 N
M4WY44K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 3084 26.5 N
M4WY44K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 3084 26.5 N
M4WY54K8W1 White Reflector,White Bezel 4000K, Ra80 DALI LED Driver N/A Wide 173 4086 35 N
M4WY54K8W1EM White Reflector,White Bezel 4000K, Ra80 DALI LED Driver 3hr Maint Wide 173 4086 35 N
M4WY54K8W1EP White Reflector,White Bezel 4000K, Ra80 DALI LED Driver COMEPS Wide 173 4086 35 N
M4MH24K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 1036 8.4 N
M4MH24K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 1036 8.4 N
M4MH24K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 1036 8.4 N
M4MH34K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 2064 16.6 N
M4MH34K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 2064 16.6 N
M4MH34K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 2064 16.6 N
M4MH44K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 3105 26.5 N
M4MH44K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 3105 26.5 N
M4MH44K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 3105 26.5 N
M4MH54K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Medium 173 4029 35 N
M4MH54K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Medium 173 4029 35 N
M4MH54K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Medium 173 4029 35 N
M4WH24K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 1066 8.4 N
M4WH24K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 1066 8.4 N
M4WH24K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 1066 8.4 N
M4WH34K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 2083 16.6 N
M4WH34K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 2083 16.6 N
M4WH34K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 2083 16.6 N
M4WH44K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 3084 26.5 N
M4WH44K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 3084 26.5 N
M4WH44K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 3084 26.5 N
M4WH54K8W1 White Reflector,White Bezel 4000K, Ra80 Fixed Output N/A Wide 173 4086 35 N
M4WH54K8W1EM White Reflector,White Bezel 4000K, Ra80 Fixed Output 3hr Maint Wide 173 4086 35 N
M4WH54K8W1EP White Reflector,White Bezel 4000K, Ra80 Fixed Output COMEPS Wide 173 4086 35 N
M4MY23K8W1 White Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 963.48 8.4 N
M4MY23K8W1EM White Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 963.48 8.4 N
M4MY23K8W1EP White Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 963.48 8.4 N
M4MY33K8W1 White Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 1919.52 16.6 N
M4MY33K8W1EM White Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 1919.52 16.6 N
M4MY33K8W1EP White Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 1919.52 16.6 N
M4MY43K8W1 White Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 2887.65 26.5 N
M4MY43K8W1EM White Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 2887.65 26.5 N
M4MY43K8W1EP White Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 2887.65 26.5 N
M4MY53K8W1 White Reflector,White Bezel 3000K, RA80 DALI LED Driver N/A Medium 173 3746.97 35 N
M4MY53K8W1EM White Reflector,White Bezel 3000K, RA80 DALI LED Driver 3hr Maint Medium 173 3746.97 35 N
M4MY53K8W1EP White Reflector,White Bezel 3000K, RA80 DALI LED Driver COMEPS Medium 173 3746.97 35 N
