Optics

  • Light Output Options:
    • 585 - 627 lumens (6W)
    • 756 - 811 lumens (8W)
  • Choice of 3000K or 4000K colour temperature
  • Moulded polycarbonate reflector with medium beam distribution
  • Low glare black or soft white internal baffle
  • Available with 3 hour self contained or DALI addressable emergency
  • Emergency outputs:
    • 6W, 4000K - 241 lumens
    • 8W, 4000K - 231 lumens

Body

  • Die-cast white aluminium bezel
  • Fixed output or Dali driver included
  • Integral IP44 protective lens as standard
  • White RAL Colour: RAL9003
  • Class 2 double insulated wiring
  • Ambient operating temperature between –25°C to +25°C

Downlighter, Black Baffle

Description Fixed Output 3hr Emergency LL/CW L70 B50
L80
618 lumen (6W), 4000K LSDMBH14K LSDMBH14KEM 99 60k 49k
799 lumen (8W), 4000K LSDMBH24K LSDMBH24KEM 94 55k 35k
585 lumen (6W), 3000K LSDMBH13K LSDMBH13KEM 97 60k 49k
756 lumen (8W), 3000K LSDMBH23K LSDMBH23KEM 92 55k 35k

Downlighter, White Baffle

Description Fixed Output 3hr Emergency LL/CW L70 B50
L80
627 lumen (6W), 4000K LSDMWH14K LSDMWH14KEM 101 60K 49K
811 lumen (8W), 4000K LSDMWH24K LSDMWH24KEM 95 55K 35K
593 lumen (6W), 3000K LSDMWH13K LSDMWH13KEM 98 60K 49K
767 lumen (8W), 3000K LSDMWH23K LSDMWH23KEM 93 55K 35K

Options

DALI Dimming Replace H with Y i.e LSDMBY14K
COMEPS DALI Emergency Replace 'EM' with 'EP' i.e. LSDMBH14KEP

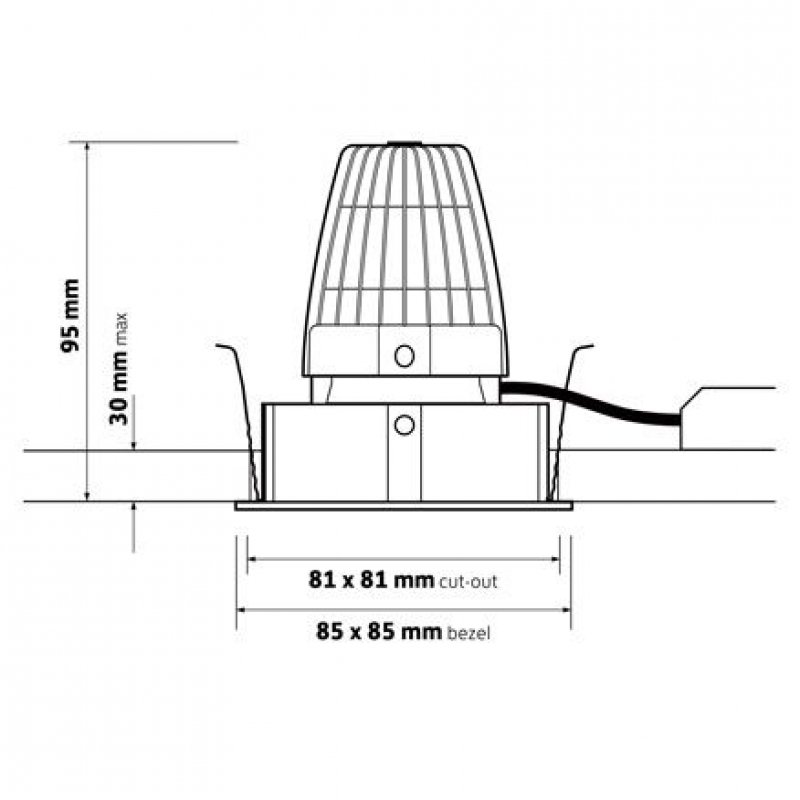

Dimensions Diagram 1
VERSION L W H KG Cut Aperture
Downlighter 85 85 95 0.4 81x81

Photometic Performance

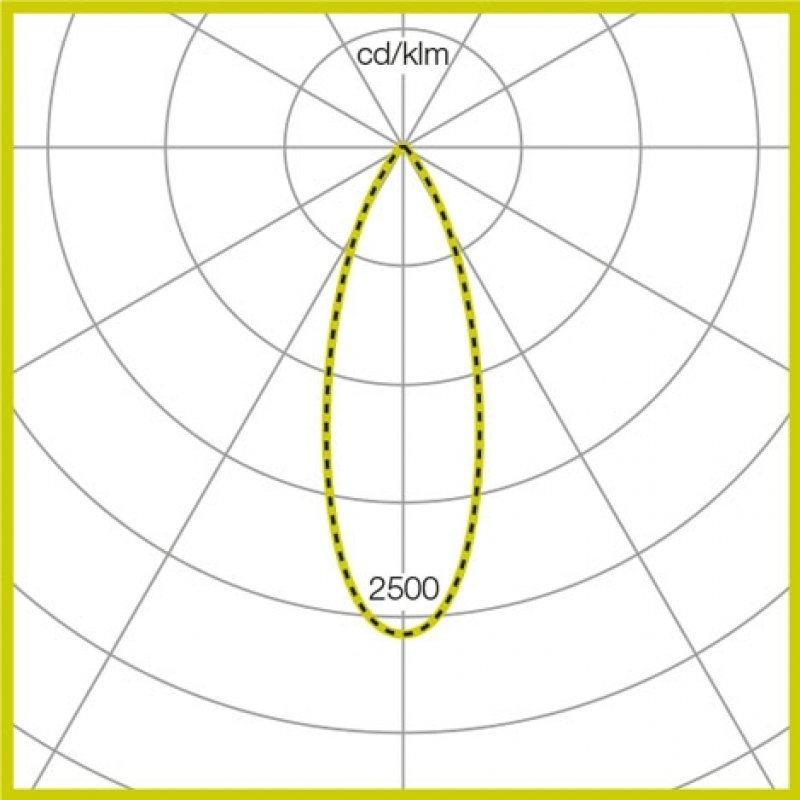

Photometic Performance Diagram - Downlighter 8W LED 4000K 811 Lumen
Downlighter 8W LED 4000K 811 Lumen
LOR = 100%

LED Performance

Colour Temp RA (CRI) Colour consistency
3000K/4000K 80 MacAdam 3 SDCM

Recessed LED, low glare architectural downlighter, with cast aluminium bezel and polycarbonate reflector. Integral light engine and driver, IP44 rated as standard – as Whitecroft Lighting MIRAGE SQ81
