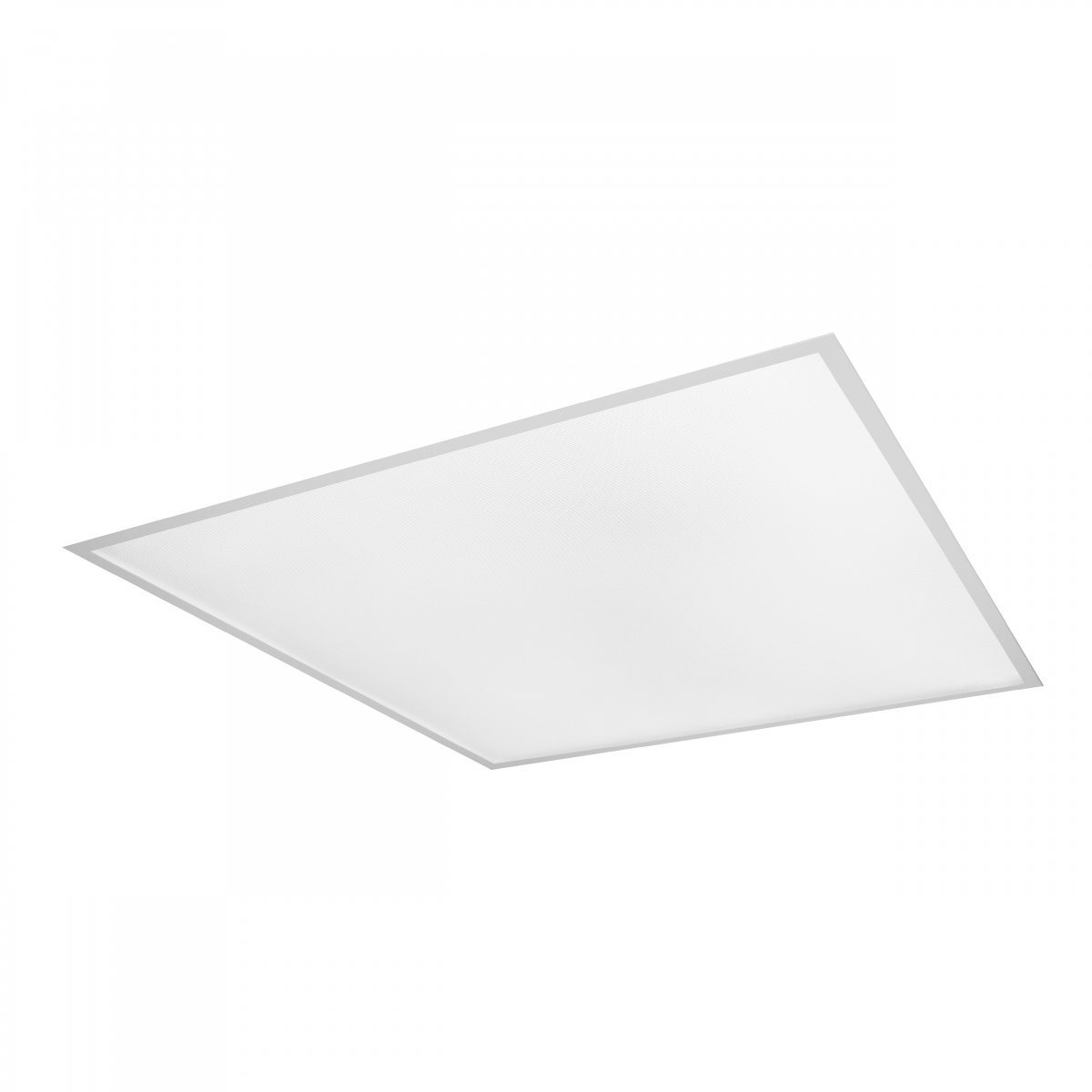

Tegan Tunable White

Tegan Tunable White

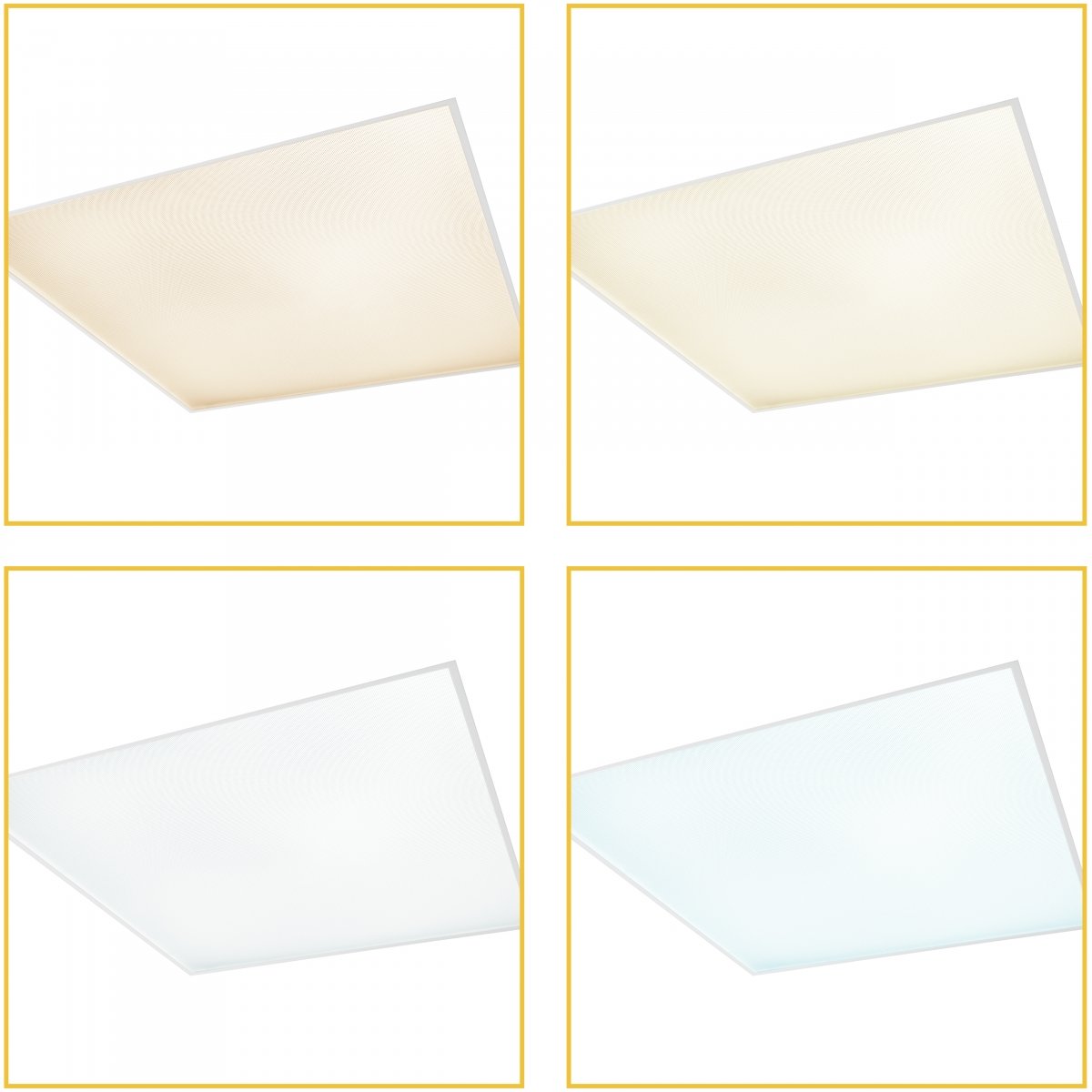

2700K - 6500K

2700K - 6500K

Tegan Tunable White

Tegan Tunable White

2700K - 6500K

2700K - 6500K

Optics

Tegan Office

  • Specialised acrylic Hexaprism optic with prisms facing down for optimum glare control and an LG7 compliant space
  • Tunable Elite outputs:
    • 3150 lumens (33W)*
    • 4030 lumens (42W)*

Tegan Area

  • Acrylic micro-polymer diffuser with wipe clean finish
  • Tunable Elite output:
    • 4050 lumens (36W)*

Body

  • Steel body finished white
  • Shallow body profile
  • IP44 protection from front, IP20 from behind
  • 600 x 600mm square
  • For lay in ceiling integration on T15 and T25 ceilings

* Output and wattage based on 6500K colour temperature. These figures will vary between 1-5% depending on colour temperature used

Tegan Office

B50
L80
Tunable Elite, 3150 lumens (33W) TEHDTE1 50k
Tunable Elite, 4030 lumens (42W) TEHDTE2 50k

Tegan Area

Tunable Elite, 4050 lumens (36W) TEPDTE2

* NB: Other control components are required for the tunable system to function. Please search for Tunable White Systems on Whitecroft website

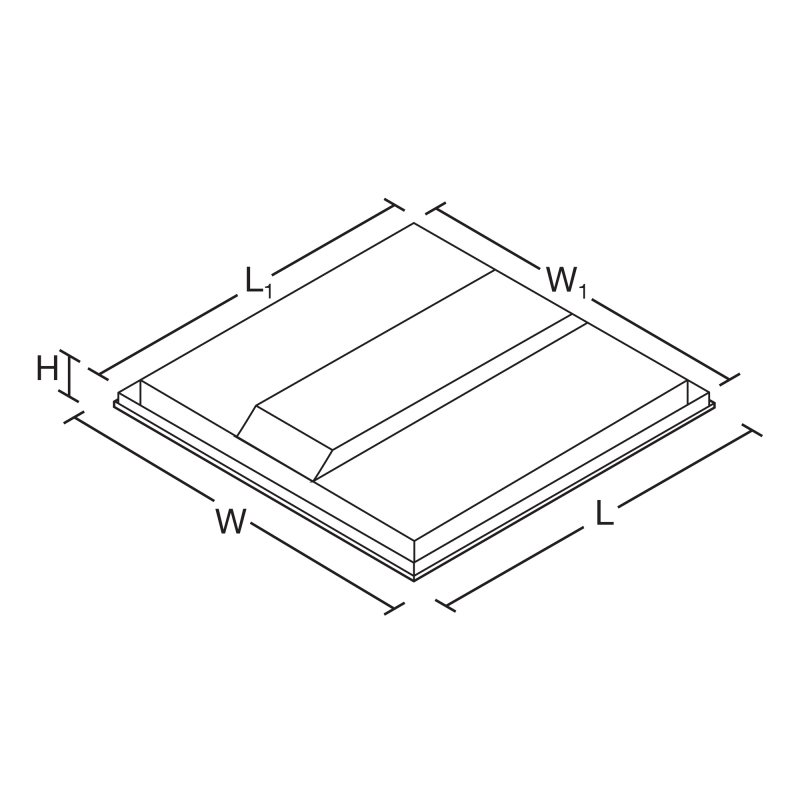

Dimensions Diagram 1
L L1 W W1 H KG
595 545 595 545 103 4.5

Photometic Performance

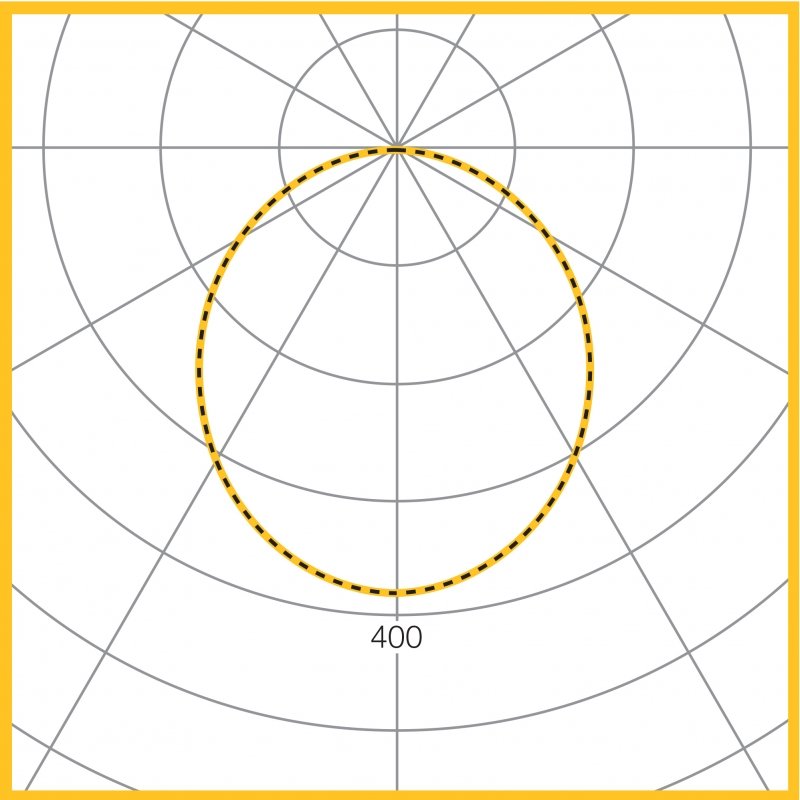

Photometic Performance Diagram - Tegan Area Tunable Elite 36W LED 6500K 4050 Lumens
Tegan Area Tunable Elite 36W LED 6500K 4050 Lumens
LOR = 100.0%
SHR MAX = 1.58

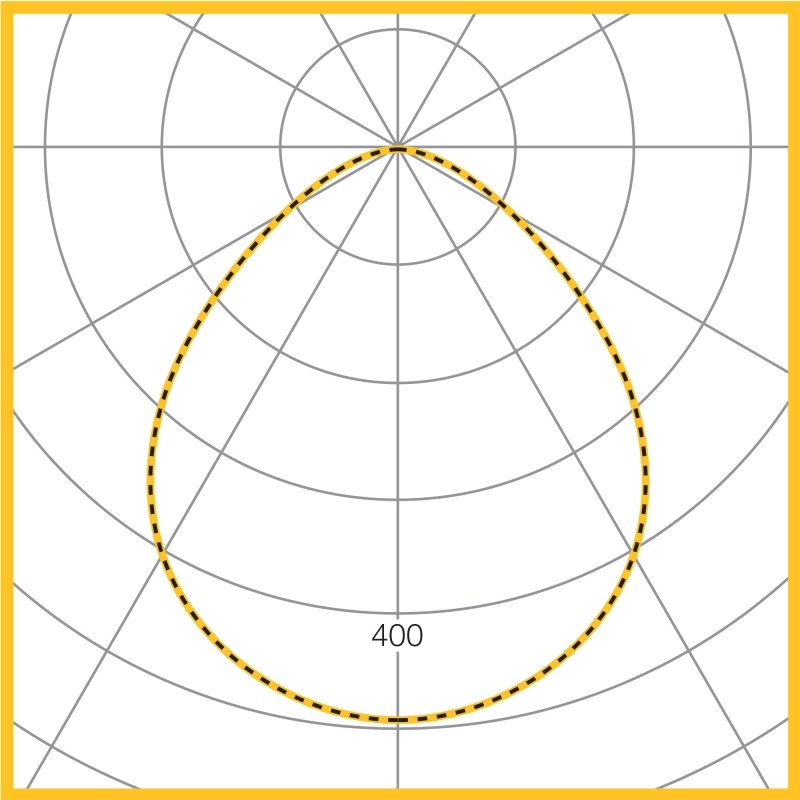

Photometic Performance Diagram - Tegan Office Tunable Freedom 39W LED 6500K 3700 Lumens
Tegan Office Tunable Freedom 39W LED 6500K 3700 Lumens
LOR = 100.0%
SHR MAX = 1.58

LED Performance

Colour Temp RA (CRI) Colour consistency
2700K >80 MacAdam 3 SDCM
4000K >80 MacAdam 3 SDCM
6500K >80 MacAdam 3 SDCM

Recessed LED 600 x 600mm luminaire with slim line steel body and micro-polymer diffuser for general, non VDT areas or Hexaprism optic for LG7 office compliant schemes. Tunable white LEDs to adjust the colour temperature between 2700K and 6500K. Suitable for lay in exposed T ceilings – as Whitecroft Lighting TEGAN TUNABLE WHITE.
