Trimpak Vitality

Trimpak Vitality

Overview

Efficient, easy to install LED batten for general lighting. Whitecroft Vitality solution which is independently accredited by the Cradle to Cradle Institute® demonstrating a 'Circular Economy' ready product for future upgrades, easy replacement of components and excellent material health.

Optics

Nominal 2000 to 11000 lumens, 15 to 83W
300 lumens in emergency mode (all versions)
4000K LED
High transmission opal polycarbonate
>100,000 hour life to L80B50

Body

IP20, IK07 rated
Available in 1150mm, 1440mm and 1719mm length bodies.
Integral controls options available in extended bodies, please refer to the dimensions table for the exact lengths
Fabricated steel body
White RAL 9003 finish
Injection moulded polycarbonate end caps
Injection moulded polycarbonate sensor mount for controls options
Surface, suspended or trunking mounted, suspensions supplied by others
Cable entry via rear BESA holes or conduit entry through end cap 20mm diameter knockouts
Max cable capacity 2 x 2.5mm²
DALI driver as standard
Integral Emergency options:
- 3 hour self-contained
- 3 hour COMEPS addressable test
Emergency variants are supplied with Lithium Ion Phosphate (LiFePO4) batteries

Enquire about this product

Family Datasheet

Product Downloads

1150mm long Number of Parts 6

Click on part code below for downloads

Part Code	Description	Output (lm)	Power (W)	Colour Temperature	Driver Type	Emergency Type	Integral Controls	Length (mm)
TLV12Y14K	1150mm long	2026	13	4000K, Ra80	DALI LED Driver	N/A	N/A	1150	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2026},{"Name":"Circuit Watts","Value":13},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":155.8},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV12Y14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV12Y14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV12Y14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV12Y24K	1150mm long	3095	27	4000K, Ra80	DALI LED Driver	N/A	N/A	1150	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3095},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.6},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV12Y24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV12Y24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV12Y24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV12Y14KEM	1150mm long	2026	13	4000K, Ra80	DALI LED Driver	3 hr EM LiFeP04	N/A	1150	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":307},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2026},{"Name":"Circuit Watts","Value":13},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":155.8},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV12Y14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV12Y14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV12Y14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV12Y24KEM	1150mm long	3095	27	4000K, Ra80	DALI LED Driver	3 hr EM LiFeP04	N/A	1150	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":307},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3095},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.6},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV12Y24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV12Y24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV12Y24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV12Y14KEP	1150mm long	2026	13	4000K, Ra80	DALI LED Driver	3 hr EP LiFeP04	N/A	1150	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":307},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2026},{"Name":"Circuit Watts","Value":13},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":155.8},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV12Y14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV12Y14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV12Y14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV12Y24KEP	1150mm long	3095	27	4000K, Ra80	DALI LED Driver	3 hr EP LiFeP04	N/A	1150	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":307},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3095},{"Name":"Circuit Watts","Value":27},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.6},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV12Y24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV12Y24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV12Y24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}

1440mm long Number of Parts 9

Click on part code below for downloads

Part Code	Description	Output (lm)	Power (W)	Colour Temperature	Driver Type	Emergency Type	Integral Controls	Length (mm)
TLV15Y34K	1440mm long	3036	19	4000K, Ra80	DALI LED Driver	N/A	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3036},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":159.8},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y44K	1440mm long	5508	36	4000K, Ra80	DALI LED Driver	N/A	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5508},{"Name":"Circuit Watts","Value":36},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":153},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y44K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y44K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y44K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y54K	1440mm long	6851	45	4000K, Ra80	DALI LED Driver	N/A	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6851},{"Name":"Circuit Watts","Value":45},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":152.2},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y54K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y54K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y54K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y34KEM	1440mm long	3036	19	4000K, Ra80	DALI LED Driver	3 hr EM LiFeP04	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":311},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3036},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":159.8},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y44KEM	1440mm long	5508	36	4000K, Ra80	DALI LED Driver	3 hr EM LiFeP04	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":311},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5508},{"Name":"Circuit Watts","Value":36},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":153},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y44K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y44K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y44K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y54KEM	1440mm long	6851	45	4000K, Ra80	DALI LED Driver	3 hr EM LiFeP04	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":311},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6851},{"Name":"Circuit Watts","Value":45},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":152.2},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y54K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y54K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y54K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y34KEP	1440mm long	3036	19	4000K, Ra80	DALI LED Driver	3 hr EP LiFeP04	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":311},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3036},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":159.8},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y44KEP	1440mm long	5508	36	4000K, Ra80	DALI LED Driver	3 hr EP LiFeP04	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":311},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5508},{"Name":"Circuit Watts","Value":36},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":153},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y44K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y44K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y44K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV15Y54KEP	1440mm long	6851	45	4000K, Ra80	DALI LED Driver	3 hr EP LiFeP04	N/A	1440	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":311},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6851},{"Name":"Circuit Watts","Value":45},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":152.2},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV15Y54K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV15Y54K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV15Y54K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}

1719mm long Number of Parts 3

Click on part code below for downloads

Part Code	Description	Output (lm)	Power (W)	Colour Temperature	Driver Type	Emergency Type	Integral Controls	Length (mm)
TLV18Y64K	1719mm long	11091	75	4000K, Ra80	DALI LED Driver	N/A	N/A	1719	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":11091},{"Name":"Circuit Watts","Value":75},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":147.9},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV18Y64K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV18Y64K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV18Y64K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV18Y64KEM	1719mm long	11091	75	4000K, Ra80	DALI LED Driver	3 hr EM LiFeP04	N/A	1719	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":319},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":11091},{"Name":"Circuit Watts","Value":75},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":147.9},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV18Y64K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV18Y64K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV18Y64K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}
TLV18Y64KEP	1719mm long	11091	75	4000K, Ra80	DALI LED Driver	3 hr EP LiFeP04	N/A	1719	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":319},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":11091},{"Name":"Circuit Watts","Value":75},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":147.9},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"trimpak-vitality-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"trimpak-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"trimpak-vitality-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"TLV18Y64K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"TLV18Y64K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"TLV18Y64K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"trimpak-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"trimpak-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"trimpak-vitality-ies.zip"}}

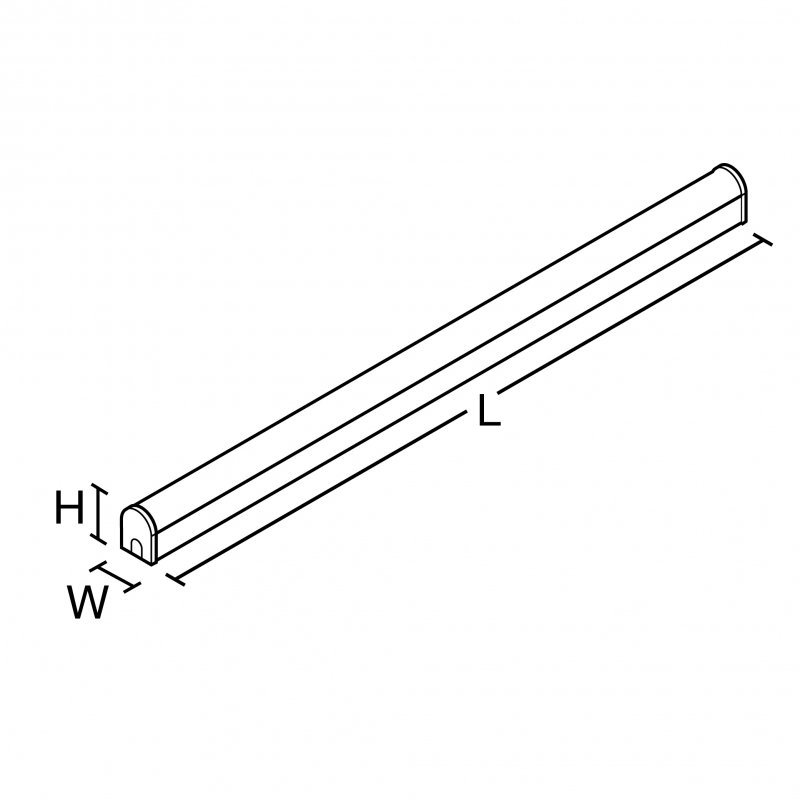

VERSION	L	W	H	KG	KG(EM)	FC
1150mm	1150	59	78	1.9	2.5	600
1440mm	1440	59	78	2.3	2.9	600
1719mm	1719	59	78	2.7	3.3	1200

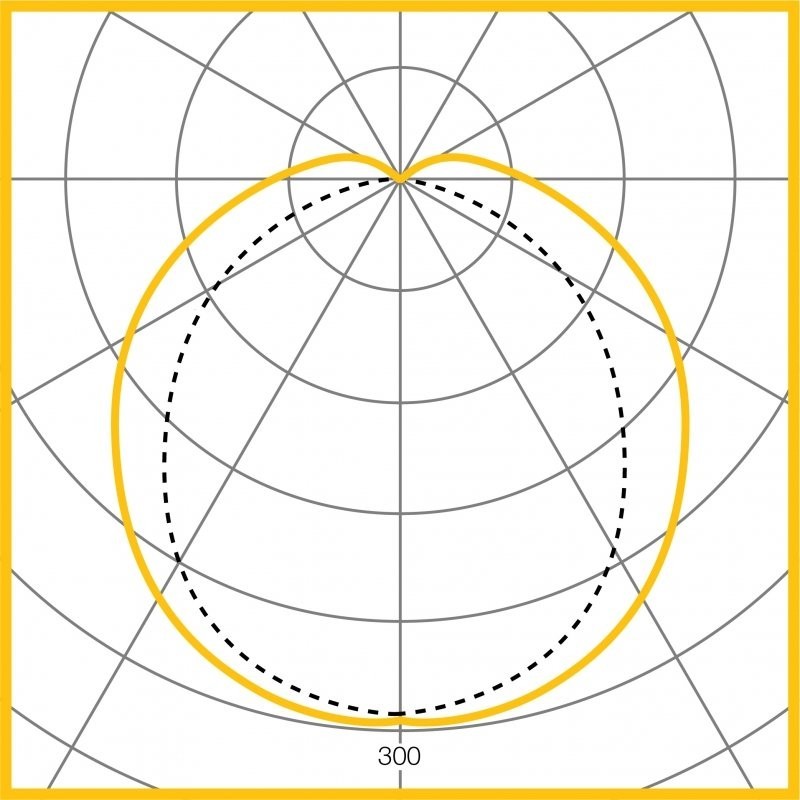

Photometic Performance

Wide Distribution

LOR = 100%

LED Performance

Colour Temp	RA (CRI)	Colour consistency
4000K	>80	MacAdam 3 SDCM

Easy to install batten luminaire for surface or suspended mounting. With 2 piece fabricated steel body and opal polycarbonate diffuser. Independently accredited by the Cradle to Cradle Institute® demonstrating a 'Circular Economy' ready product for future upgrades, easy replacement of components and excellent material health – as Whitecroft Lighting TRIMPAK VITALITY
