Horizon Vitality

Horizon Vitality

Horizon Vitality

Overview

Horizon Vitality brings a flawless, clean design to any application and will compliment any interior. Whitecroft Vitality solution which is independently accredited by the Cradle to Cradle Institute®  demonstrating a 'Circular Economy' ready product for future upgrades, easy replacement of components and excellent material health.

Optics

  • e-Light LEDs for maximum efficacy and long life
  • Light outputs and Wattages:
Type Watts (4000K) Watts (3000K)
1304 lumen 11 12
1769 lumen 14 16
2297 lumen 18 20
  • Emergency Output:
    • 3000K - 300 lumens
    • 4000K - 323 lumens
  • Polycarbonate convex opal diffuser for optimum light uniformity and no visible spotting of LEDs
  • Available in 3000K or 4000K colour temperatures

Body

  • Surface mounted as standard
  • Body finished in textured white
  • RAL Colour: White RAL9003
  • Robust IK10 impact rating
  • IP44 ingress protection
  • Choice of integral emergency options; 3 hour emergency or COMEPS (can be wired as Easytest if required)
  • Emergency variants supplied with Lithium Ion Phosphate (LiFePO4) batteries

Click on part code below for downloads

Part Code Description Output (lm) Power (W) Diameter (mm) Colour Temperature Driver Type Emergency Type Product Colour
HZVY14K 4000K 1304 11 367 4000K, Ra80 DALI LED Driver N/A White
HZVY24K 4000K 1769 14 367 4000K, Ra80 DALI LED Driver N/A White
HZVY34K 4000K 2297 18 367 4000K, Ra80 DALI LED Driver N/A White
HZVY14KEM 4000K 1304 11 367 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 White
HZVY24KEM 4000K 1769 14 367 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 White
HZVY34KEM 4000K 2297 18 367 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 White
HZVY14KEP 4000K 1304 11 367 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 White
HZVY24KEP 4000K 1769 14 367 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 White
HZVY34KEP 4000K 2297 18 367 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 White

Click on part code below for downloads

Part Code Description Output (lm) Power (W) Diameter (mm) Colour Temperature Driver Type Emergency Type Product Colour
HZVY13K 3000K 1304 12 367 3000K, RA80 DALI LED Driver N/A White
HZVY23K 3000K 1769 16 367 3000K, RA80 DALI LED Driver N/A White
HZVY33K 3000K 2297 20 367 3000K, RA80 DALI LED Driver N/A White
HZVY13KEM 3000K 1304 12 367 3000K, RA80 DALI LED Driver 3 hr EM LiFeP04 White
HZVY23KEM 3000K 1769 16 367 3000K, RA80 DALI LED Driver 3 hr EM LiFeP04 White
HZVY33KEM 3000K 2297 20 367 3000K, RA80 DALI LED Driver 3 hr EM LiFeP04 White
HZVY13KEP 3000K 1304 12 367 3000K, RA80 DALI LED Driver 3 hr EP LiFeP04 White
HZVY23KEP 3000K 1769 16 367 3000K, RA80 DALI LED Driver 3 hr EP LiFeP04 White
HZVY33KEP 3000K 2297 20 367 3000K, RA80 DALI LED Driver 3 hr EP LiFeP04 White

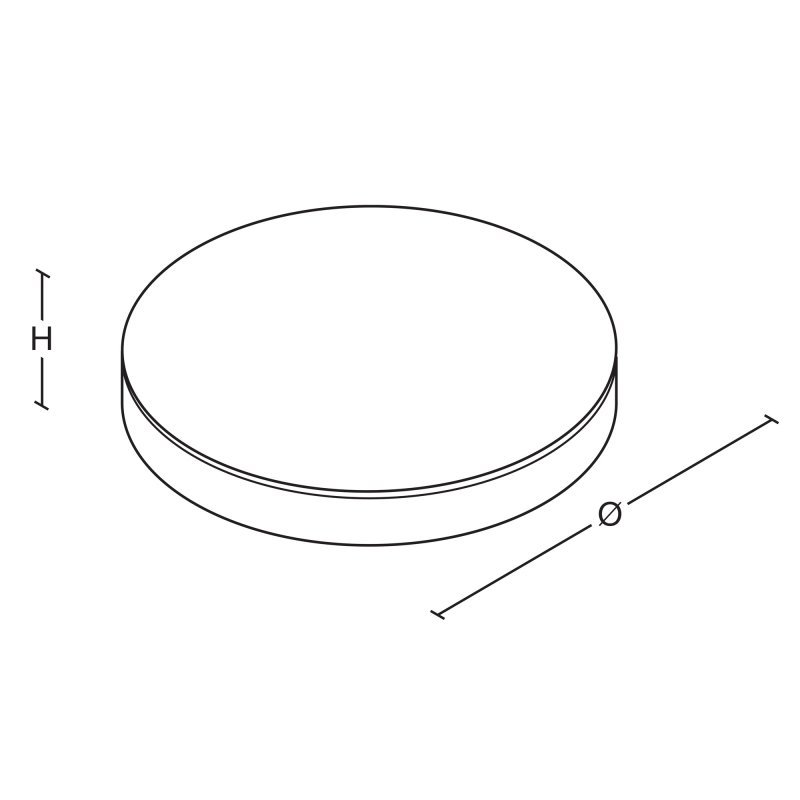

Dimensions Diagram 1
VERSION H KG KG(EM) Ø
All versions 117 1.6 1.9 367

Photometic Performance

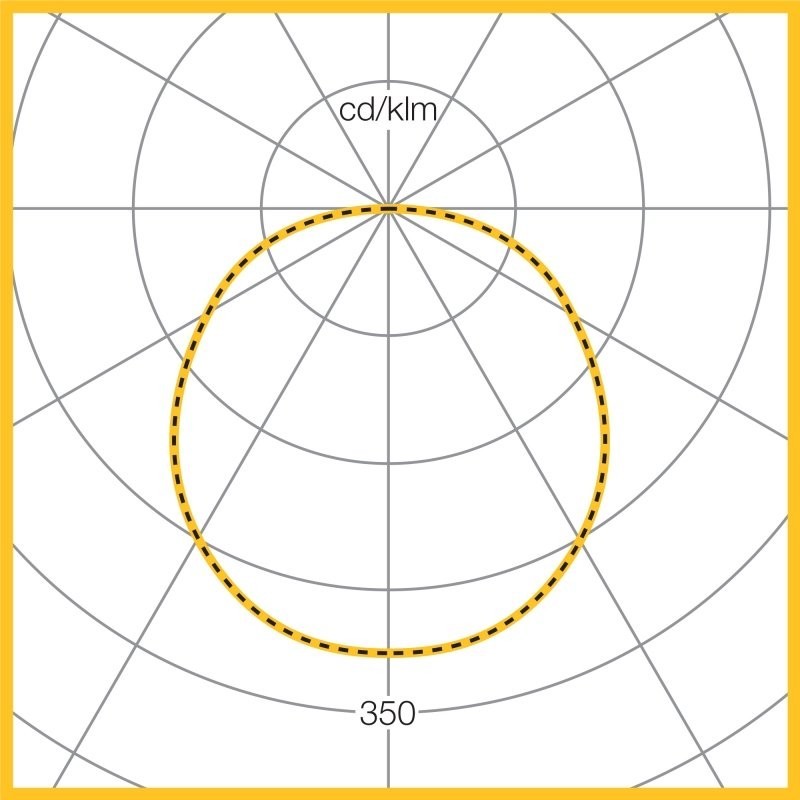

Photometic Performance Diagram - Wide Distribution
Wide Distribution
LOR = 100%

Performance Guide

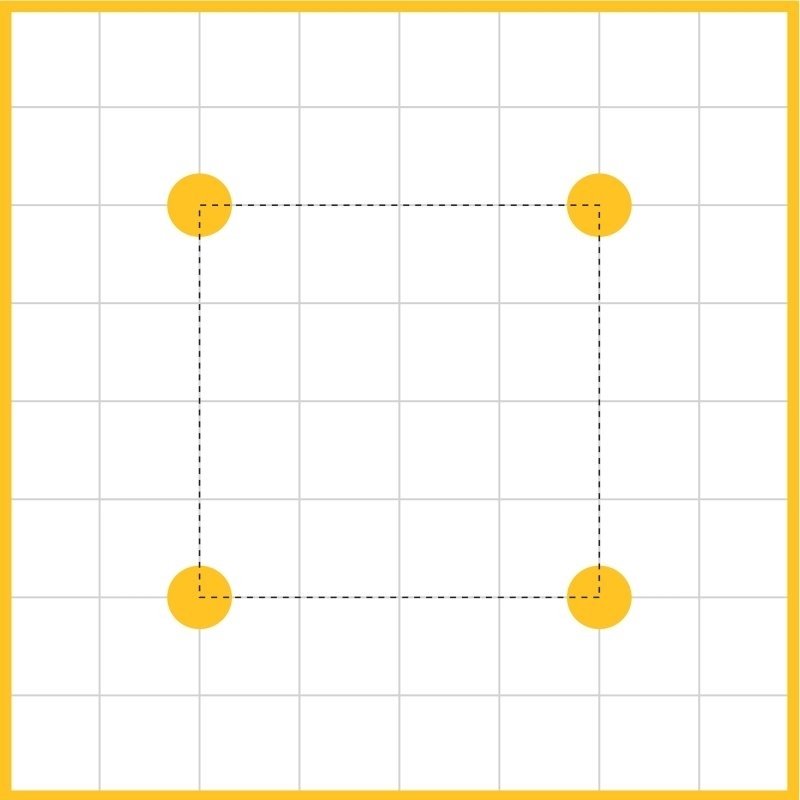

Performance Guide Diagram 1
  • Lamps: 14W LED
  • Illuminance: 200 lux
  • Spacing: 2.4 x 2.4m

  • Maintenance: 0.8
  • Reflectance: 70/50/20%
  • Ceiling Height: 2.7m
  • Working plane: 0.0m

Circular surface mounted LED luminaire with injection moulded polycarbonate body and opal flame retardant dome polycarbonate diffuser. Innovative hinged LED light engine for uniform light distribution and ease of maintenance. Independently accredited by the Cradle to Cradle Institute®  demonstrating a 'Circular Economy' ready product for future upgrades, easy replacement of components and excellent material health - as Whitecroft Lighting HORIZON VITALITY
