Florence+

Elegant low profile design bedhead luminaire

Florence+

Single piece wipe clean injection moulding

Patient at rest

Patient examination (Florence+ 1000)

Patient reading

Patient observation

Explore our product range

Overview

For new build or refurbishment projects, encompassing all lighting states from a single lighting point. An elegant single piece low profile design delivering an > Ra90 combination of upward, forward and downward light, independently dimmable to comply with LG2 requirements. A choice of colour temperatures including Tunable White offer optimum flexibility for patient comfort.

Optics

Three distinct light sources:
- Upper - Concealed Indirect (4000K)
- Front - Patient (4000K or Tunable White)
- Lower - Task / Reading (4000K or 3000K)

Two versions with a choice of outputs delivering up to 1000 lux at bed level for patient examination

Florence+ 300
- Patient at rest - delivering 1343lm, 10W
- General Nursing - delivering 5624lm, 42W
- Patient observation - delivering 151lm, 1W
- Patient reading - 924lm, 11W

Florence+ 1000
- Patient at rest - delivering 1343lm, 10W
- Patient examination - delivering 13186lm, 114W
- General Nursing - delivering 5624lm, 42W
- Patient observation - delivering 205lm, 1W
- Patient reading - 924lm, 11W
Light sources are independently dimmable to comply with LG2 requirements, at 1.8m mounting height:
- Patient at rest - a relaxing lower level of illumination (100 Lux)
- General nursing care - Medical practices carried out at the bed space (300 Lux)
- Patient examination - Full light output for detailed patient examination (1000 Lux) **
- Patient reading - Lighting directly on the pillow in a 1x1 metre area, can also be used as an additional light source for nursing tasks (300 Lux)
- Patient observation - dimmed to allow continuous observation at night (15-20 Lux)

** Florence+ 1000 luminaire

Body

Single piece wipe clean injection moulding has no seams or visible screws
RAL Colour: White RAL9003
IP44 protection rating
Wall mounted, recommended mounting height 2m for typical 2.6m-3m ceiling heights
1st fix wall bracket, pre-wired to GST 18/4 flying leads (For other connector requirements please contact the Whitecroft Lighting Technical Desk)
Optional wireless Air Control gives the patient even more control with seamless graduation between cool and warm light (note: Air Control uses a remote housing - see installation leaflet for details)
DALI as standard - requires DALI input unit and onsite commissioning
Switch dim option available with Florence+ 300 for retrofit applications
After 2 hours operating at 1000lux the luminaire will automatically reduce light output for temperature regulation

Product Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Max output	Lamp Colour 1	Lamp Colour 2	Controls	Driver Type	Downloads
FCP3Y4K3KW	5624	42	Florence+ 300	4000K UPWARD & FRONT	3000K DOWN	N/A	DALI LED Driver (2)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5624},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (2)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP3Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP3Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP3Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP3Y4K4KW	5624	42	Florence+ 300	4000K UPWARD & FRONT	4000K DOWN	N/A	DALI LED Driver (2)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5624},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (2)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP3Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP3Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP3Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP3ACY4K3KW	5624	42	Florence+ 300	4000K UPWARD & FRONT	3000K DOWN	AIR CONTROL	DALI LED Driver (2)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5624},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (2)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP3Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP3Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP3Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP3ACY4K4KW	5624	42	Florence+ 300	4000K UPWARD & FRONT	4000K DOWN	AIR CONTROL	DALI LED Driver (2)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5624},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (2)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP3Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP3Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP3Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP3X4K3KW	5624	42	Florence+ 300	4000K UPWARD & FRONT	3000K DOWN	N/A	Switch Dimming	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5624},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"Switch Dimming"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP3Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP3Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP3Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP3X4K4KW	5624	42	Florence+ 300	4000K UPWARD & FRONT	4000K DOWN	N/A	Switch Dimming	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5624},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"Switch Dimming"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP3Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP3Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP3Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}

Florence+ 1000

Number of Parts: 12

Info & Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Max output	Lamp Colour 1	Lamp Colour 2	Controls	Driver Type	Downloads
FCP1Y4K3KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	3000K DOWN	N/A	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1Y4K3KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	3000K DOWN	N/A	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1Y4K4KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	4000K DOWN	N/A	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1Y4K4KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	4000K DOWN	N/A	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1ACY4K3KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	3000K DOWN	AIR CONTROL	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1ACY4K3KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	3000K DOWN	AIR CONTROL	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K3KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K3KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K3KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1ACY4K4KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	4000K DOWN	AIR CONTROL	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1ACY4K4KW	1343	114	Florence+ 1000	4000K UPWARD & FRONT	4000K DOWN	AIR CONTROL	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"FCP1Y4K4KW.zip"},"ULD":{"Field":"ULD","Name":"ULD","Value":"FCP1Y4K4KW-ULD.zip"},"IES":{"Field":"IES","Name":"IES","Value":"FCP1Y4K4KW-IES.zip"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1YTE3KW	1343	114	Florence+ 1000	4000K UPWARD & TUNABLE FRONT	3000K DOWN	N/A	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1YTE4KW	1343	114	Florence+ 1000	4000K UPWARD & TUNABLE FRONT	4000K DOWN	N/A	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1ACYTE3KW	1343	114	Florence+ 1000	4000K UPWARD & TUNABLE FRONT	3000K DOWN	AIR CONTROL	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}
FCP1ACYTE4KW	1343	114	Florence+ 1000	4000K UPWARD & TUNABLE FRONT	4000K DOWN	AIR CONTROL	DALI LED Driver (3)	View	[{"Name":"LED Life Performance","Value":"50K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1343},{"Name":"Circuit Watts","Value":114},{"Name":"LOR","Value":"-"},{"Name":"Lumen per circuit watt","Value":132},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"DALI LED Driver (3)"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"AIR CONTROL"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Florence-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Florence-d1.jpg"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Florence-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Florence-ULD.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Florence-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Florence-REVIT.zip"}}

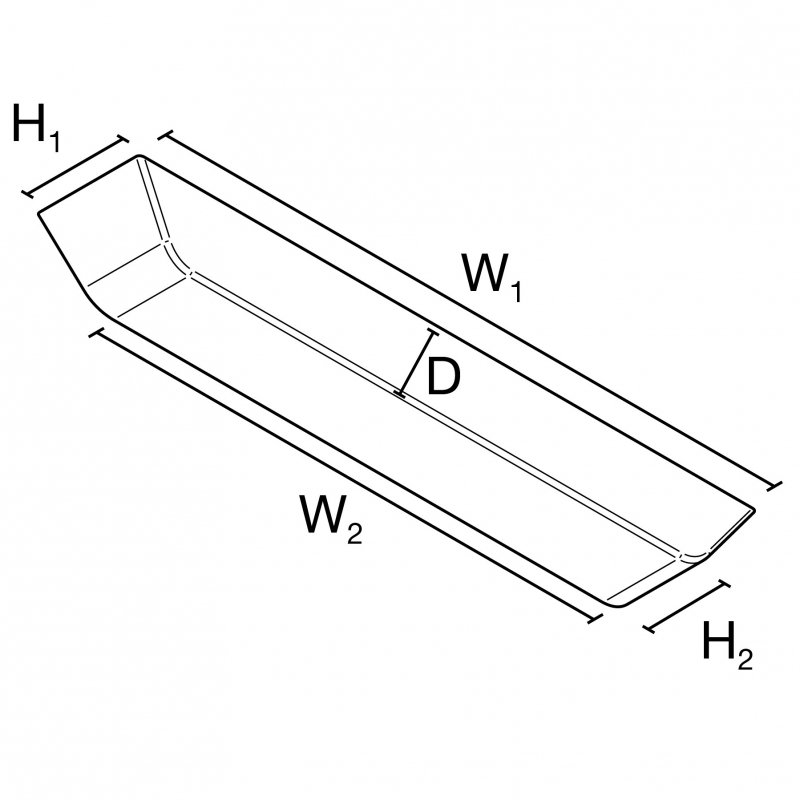

VERSION	W1	W2	H1	H2	D	KG
Florence+	920	775	155	121	100	7.5
Air Control Remote Housing	390		70		36	0.8

Elegant low profile bedhead luminaire delivering an > Ra90 combination of upward, forward and downward light. Single piece IP44 rated wipe clean injection moulding has no seams or visible screws. Light sources deliver up to 1000 lux at bed level for patient examination and are independently dimmable to comply with LG2 requirements - as Whitecroft Lighting FLORENCE+.

Product Downloads

Download

Add to ZIP

PDF Florence+ Datasheet

PDF Healthcare Brochure

PDF Installation leaflet

ZIP Florence+ LDT

ZIP Florence+ Relux

ZIP Florence+ Dialux

PDF Maintenance Factors

ZIP Revit
