Rink Recessed

Architectural recessed luminaire ideal for workspace lighting

Rink Recessed in Ceiling

Rink Recessed with Organic Response

Explore our product range

Overview

Rink has a curved optical form with triple layer ‘V’ optic. The subtle introduction of depth enhances glare control at high angles and the up-light halo and comfort of the optic bring visual interest and perceived depth into the space.

Optics

Light outputs:
4000K - 3281 lumens, 26W
3000K - 3183 lumens, 26W
4000 and 3000K colour temperatures
> Ra 80 colour rendition
Unique 3 layer 'V' optic to bring life into the space
High quality 'glass like' appearance

Luminance below 3000 cd/m² to meet UGR < 19

**Lifetime Data**
Version	L70B50	L80B50	L90B50
26W	>100K	>100K	58K

Emergency Outputs

Version

3000K

4000K

26W

215 lumens

222 lumens

Body

Fabricated sheet steel body
White RAL 9010 paint finish
DALI driver as standard
Integral Organic Response sensor option
Emergency 3 hour standard or COMEPS addressable

Product Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Colour Temperature	Emergency Type	Product Colour	Length / Diameter (mm)	Driver Type	Controls	Downloads
RLRY24K8W	3281	26	4000K, Ra80	N/A	White	1194	DALI LED Driver	N/A	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3281},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRY24K8WEM	3281	26	4000K, Ra80	3hr Maint	White	1194	DALI LED Driver	N/A	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3281},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRY24K8WEP	3281	26	4000K, Ra80	COMEPS	White	1194	DALI LED Driver	N/A	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3281},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRGY24K8W	3281	26	4000K, Ra80	N/A	White	1194	DALI LED Driver	ORGANIC RESPONSE	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3281},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRGY24K8WEM	3281	26	4000K, Ra80	3hr Maint	White	1194	DALI LED Driver	ORGANIC RESPONSE	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3281},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRGY24K8WEP	3281	26	4000K, Ra80	COMEPS	White	1194	DALI LED Driver	ORGANIC RESPONSE	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3281},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRY23K8W	3183	26	3000K, RA80	N/A	White	1194	DALI LED Driver	N/A	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3183},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRY23K8WEM	3183	26	3000K, RA80	3hr Maint	White	1194	DALI LED Driver	N/A	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3183},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRY23K8WEP	3183	26	3000K, RA80	COMEPS	White	1194	DALI LED Driver	N/A	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3183},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRGY23K8W	3183	26	3000K, RA80	N/A	White	1194	DALI LED Driver	ORGANIC RESPONSE	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3183},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRGY23K8WEM	3183	26	3000K, RA80	3hr Maint	White	1194	DALI LED Driver	ORGANIC RESPONSE	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3183},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}
RLRGY23K8WEP	3183	26	3000K, RA80	COMEPS	White	1194	DALI LED Driver	ORGANIC RESPONSE	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3183},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Recessed-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Recessed-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Recessed-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLRY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLRY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLRY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Recessed-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Recessed-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Recessed-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Recessed-REVIT.zip"}}

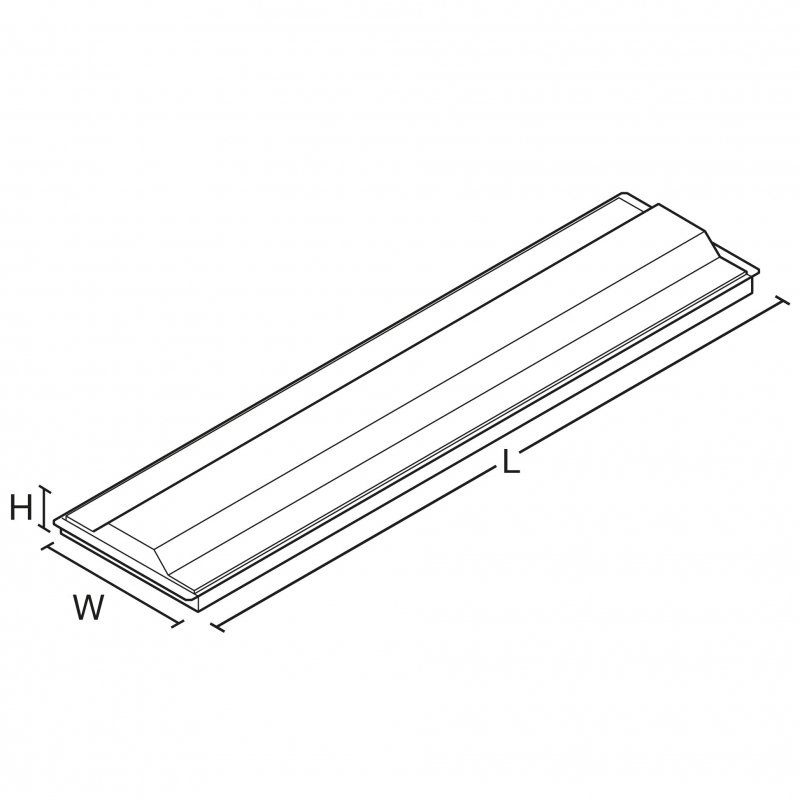

VERSION	L	W	H	KG	KG(EM)
Recessed	1194	297	78	8.35	8.55

Photometic Performance

Rink Recessed

LOR = 100%

LED Performance

Colour Temp	RA (CRI)	Colour consistency
3000K/4000K	>80	MacAdam 3 SDCM

Recessed 1200 x 300mm nominal LED luminaire for tile replacement. Unique Tp(a) rated, triple layer vac-formed diffuser with N-Hex prisms, micro-polymer sheet and high gloss front face with continuous RINK 'V' optic at the outer edges for enhanced aesthetics and surface illumination - as Whitecroft Lighting RINK RECESSED

Product Downloads

Download

Add to ZIP

PDF Rink Recessed Datasheet

PDF Installation Leaflet

PDF Ceiling Compatibility

ZIP LDT

ZIP DIALUX

ZIP IES

ZIP REVIT
