Rink Suspended

Architectural suspended luminaire ideal for workspace lighting

Rink Suspended Silver OR

Rink Suspended White

Rink Suspended Black

Explore our product range

Overview

Rink has a curved optical form with triple layer ‘V’ optic. The subtle introduction of depth enhances glare control at high angles and the up-light halo and comfort of the optic bring visual interest and perceived depth into the space.

Optics

3 light outputs:
- 4000K silver/white - 3285 lumens, 26W
- 4000K silver/white - 4338 lumens, 35W
- 4000K silver/white - 5250 lumens, 42W
- 3000K and black versions have slightly reduced outputs, see specific details below
4000 and 3000K colour temperatures
> Ra80 colour rendition
Unique 3 layer V-optic with 10mm depth bringing life into the luminaire and the space
High quality 'glass like' appearance
80/20% down/uplight ratio

**Lifetime Data**
Version	L70B50	L80B50	L90B50
All	>100K	>100K	58K

**Emergency Outputs**
Version	3000K	4000K
All	215 lumens	222 lumens

Body

Fabricated sheet steel body
Slimline 44mm visible side section
A choice of textured paint finishes:
- Silver RAL 9006
- White RAL 9003
- Black RAL 9005
DALI driver as standard
Integral Organic Response sensor option
Supplied with pre-assembled suspension kit
Fully integral emergency inverter and batteries:
- 3 hour standard
- 3 hour COMEPS DALI addressable

Product Downloads

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Colour Temperature	Emergency Type	Product Colour	Length / Diameter (mm)	Driver Type	Controls	Nominal Lumens	Downloads
RLSY14K8B	3274	26	4000K, Ra80	N/A	Black	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3274},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8BEM	3274	26	4000K, Ra80	3hr Maint	Black	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3274},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8BEP	3274	26	4000K, Ra80	COMEPS	Black	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3274},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8B	3274	26	4000K, Ra80	N/A	Black	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3274},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8BEM	3274	26	4000K, Ra80	3hr Maint	Black	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3274},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8BEP	3274	26	4000K, Ra80	COMEPS	Black	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3274},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8B	3176	26	3000K, RA80	N/A	Black	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3176},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8BEM	3176	26	3000K, RA80	3hr Maint	Black	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3176},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8BEP	3176	26	3000K, RA80	COMEPS	Black	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3176},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8B	3176	26	3000K, RA80	N/A	Black	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3176},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8BEM	3176	26	3000K, RA80	3hr Maint	Black	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3176},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8BEP	3176	26	3000K, RA80	COMEPS	Black	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3176},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8B	4329	35	4000K, Ra80	N/A	Black	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4329},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8BEM	4329	35	4000K, Ra80	3hr Maint	Black	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4329},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8BEP	4329	35	4000K, Ra80	COMEPS	Black	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4329},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8B	4329	35	4000K, Ra80	N/A	Black	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4329},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8BEM	4329	35	4000K, Ra80	3hr Maint	Black	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4329},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8BEP	4329	35	4000K, Ra80	COMEPS	Black	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4329},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8B	4199	35	3000K, RA80	N/A	Black	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4199},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8BEM	4199	35	3000K, RA80	3hr Maint	Black	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4199},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8BEP	4199	35	3000K, RA80	COMEPS	Black	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4199},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8B	4199	35	3000K, RA80	N/A	Black	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4199},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8BEM	4199	35	3000K, RA80	3hr Maint	Black	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4199},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8BEP	4199	35	3000K, RA80	COMEPS	Black	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4199},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8B	5203	42	4000K, Ra80	N/A	Black	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5203},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8BEM	5203	42	4000K, Ra80	3hr Maint	Black	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5203},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8BEP	5203	42	4000K, Ra80	COMEPS	Black	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5203},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8B	5203	42	4000K, Ra80	N/A	Black	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5203},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8BEM	5203	42	4000K, Ra80	3hr Maint	Black	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5203},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8BEP	5203	42	4000K, Ra80	COMEPS	Black	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5203},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8B	5046	42	3000K, RA80	N/A	Black	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5046},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8BEM	5046	42	3000K, RA80	3hr Maint	Black	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5046},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8BEP	5046	42	3000K, RA80	COMEPS	Black	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5046},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8B	5046	42	3000K, RA80	N/A	Black	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5046},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8BEM	5046	42	3000K, RA80	3hr Maint	Black	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5046},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8BEP	5046	42	3000K, RA80	COMEPS	Black	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5046},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Black-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8B.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8B.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8B.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8S	3285	26	4000K, Ra80	N/A	Silver	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8SEM	3285	26	4000K, Ra80	3hr Maint	Silver	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8SEP	3285	26	4000K, Ra80	COMEPS	Silver	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8S	3285	26	4000K, Ra80	N/A	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8SEM	3285	26	4000K, Ra80	3hr Maint	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8SEP	3285	26	4000K, Ra80	COMEPS	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8S	3186	26	3000K, RA80	N/A	Silver	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8SEM	3186	26	3000K, RA80	3hr Maint	Silver	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8SEP	3186	26	3000K, RA80	COMEPS	Silver	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8S	3186	26	3000K, RA80	N/A	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8SEM	3186	26	3000K, RA80	3hr Maint	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8SEP	3186	26	3000K, RA80	COMEPS	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8S	4338	35	4000K, Ra80	N/A	Silver	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8SEM	4338	35	4000K, Ra80	3hr Maint	Silver	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8SEP	4338	35	4000K, Ra80	COMEPS	Silver	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8S	4338	35	4000K, Ra80	N/A	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8SEM	4338	35	4000K, Ra80	3hr Maint	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8SEP	4338	35	4000K, Ra80	COMEPS	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8S	4207	35	3000K, RA80	N/A	Silver	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8SEM	4207	35	3000K, RA80	3hr Maint	Silver	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8SEP	4207	35	3000K, RA80	COMEPS	Silver	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8S	4207	35	3000K, RA80	N/A	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8SEM	4207	35	3000K, RA80	3hr Maint	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8SEP	4207	35	3000K, RA80	COMEPS	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8S	5250	42	4000K, Ra80	N/A	Silver	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8SEM	5250	42	4000K, Ra80	3hr Maint	Silver	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8SEP	5250	42	4000K, Ra80	COMEPS	Silver	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8S	5250	42	4000K, Ra80	N/A	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8SEM	5250	42	4000K, Ra80	3hr Maint	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8SEP	5250	42	4000K, Ra80	COMEPS	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8S	5092	42	3000K, RA80	N/A	Silver	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8SEM	5092	42	3000K, RA80	3hr Maint	Silver	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8SEP	5092	42	3000K, RA80	COMEPS	Silver	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8S	5092	42	3000K, RA80	N/A	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8SEM	5092	42	3000K, RA80	3hr Maint	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8SEP	5092	42	3000K, RA80	COMEPS	Silver	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-Silver-OR-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8W	3285	26	4000K, Ra80	N/A	White	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8WEM	3285	26	4000K, Ra80	3hr Maint	White	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY14K8WEP	3285	26	4000K, Ra80	COMEPS	White	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8W	3285	26	4000K, Ra80	N/A	White	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8WEM	3285	26	4000K, Ra80	3hr Maint	White	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY14K8WEP	3285	26	4000K, Ra80	COMEPS	White	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3285},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY14K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY14K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY14K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8W	3186	26	3000K, RA80	N/A	White	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8WEM	3186	26	3000K, RA80	3hr Maint	White	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY13K8WEP	3186	26	3000K, RA80	COMEPS	White	1195	DALI LED Driver	N/A	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8W	3186	26	3000K, RA80	N/A	White	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8WEM	3186	26	3000K, RA80	3hr Maint	White	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY13K8WEP	3186	26	3000K, RA80	COMEPS	White	1195	DALI LED Driver	ORGANIC RESPONSE	3200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3186},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY13K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY13K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY13K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8W	4338	35	4000K, Ra80	N/A	White	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8WEM	4338	35	4000K, Ra80	3hr Maint	White	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY24K8WEP	4338	35	4000K, Ra80	COMEPS	White	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8W	4338	35	4000K, Ra80	N/A	White	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8WEM	4338	35	4000K, Ra80	3hr Maint	White	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY24K8WEP	4338	35	4000K, Ra80	COMEPS	White	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4338},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY24K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY24K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY24K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8W	4207	35	3000K, RA80	N/A	White	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8WEM	4207	35	3000K, RA80	3hr Maint	White	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY23K8WEP	4207	35	3000K, RA80	COMEPS	White	1195	DALI LED Driver	N/A	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8W	4207	35	3000K, RA80	N/A	White	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8WEM	4207	35	3000K, RA80	3hr Maint	White	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY23K8WEP	4207	35	3000K, RA80	COMEPS	White	1195	DALI LED Driver	ORGANIC RESPONSE	4200	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4207},{"Name":"Circuit Watts","Value":35},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY23K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY23K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY23K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8W	5250	42	4000K, Ra80	N/A	White	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8WEM	5250	42	4000K, Ra80	3hr Maint	White	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY34K8WEP	5250	42	4000K, Ra80	COMEPS	White	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8W	5250	42	4000K, Ra80	N/A	White	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8WEM	5250	42	4000K, Ra80	3hr Maint	White	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY34K8WEP	5250	42	4000K, Ra80	COMEPS	White	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":222},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5250},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY34K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY34K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY34K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8W	5092	42	3000K, RA80	N/A	White	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8WEM	5092	42	3000K, RA80	3hr Maint	White	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSY33K8WEP	5092	42	3000K, RA80	COMEPS	White	1195	DALI LED Driver	N/A	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8W	5092	42	3000K, RA80	N/A	White	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8WEM	5092	42	3000K, RA80	3hr Maint	White	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}
RLSGY33K8WEP	5092	42	3000K, RA80	COMEPS	White	1195	DALI LED Driver	ORGANIC RESPONSE	5100	View	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":215},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5092},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Rink-Suspended-White-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Rink-Suspended-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Rink-Suspended-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"RLSY33K8W.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"RLSY33K8W.uld"},"IES":{"Field":"IES","Name":"IES","Value":"RLSY33K8W.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Rink-Suspended-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Rink-Suspended-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Rink-Suspended-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Rink-Suspended-REVIT.zip"}}

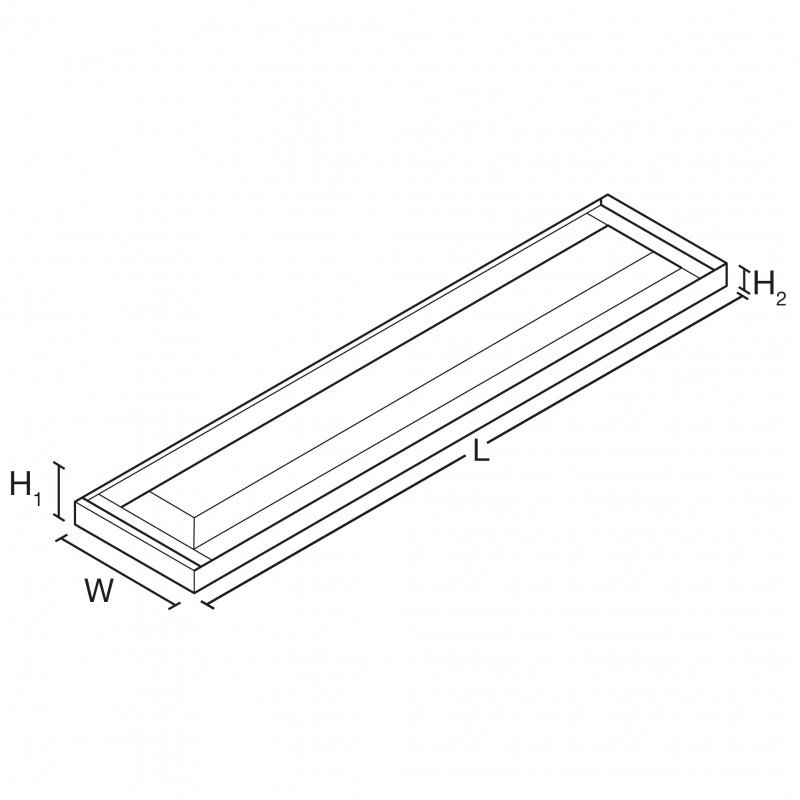

VERSION	L	W	H1	H2	KG	KG(EM)
Suspended	1195	269	75	44	8.2	8.4

Photometic Performance

Rink Suspended

LOR = 100%

Suspended 1200 x 260mm nominal LED luminaire with 80/20% down/uplight ratio. Unique Tp(a) rated, triple layer vac-formed diffuser with N-Hex prisms, micro-polymer sheet and high gloss front face with continuous RINK 'V' optic at the outer edges for enhanced aesthetics and surface illumination - as Whitecroft Lighting RINK SUSPENDED

Product Downloads

Download

Add to ZIP

PDF Rink Suspended Datasheet

PDF Installation Leaflet

ZIP LDT

ZIP DIALUX

ZIP IES

ZIP REVIT
