Avenue Micro Suspended

Suspended continuous or standalone slim linear feature luminaire

IP20 Made in Britain
Avenue Micro Suspended

Avenue Micro Suspended

Avenue Micro Suspended

Overview

Avenue Micro offers unparalleled flexibility for linear lighting in any application. Lines of unbroken LED light bringing buildings to life.

Optics

  • Luminaire available as 100% downlight or 70/30% down/uplight
  • Two lengths with four light outputs (4000K, fixed output):
    • 1122mm - 1394 lumens (13.6W) - continuous or standalone
    • 1122mm with uplight - 1700 lumens (15.9W) - continuous or standalone
    • 2244mm - 2787 lumens (27.1W) - continuous only
    • 2244mm with uplight - 3399 lumens (31.7W) - continuous only
  • Micropolymer diffuser for uniform light diffusion
  • Tp(a) rated diffuser
  • 3000K or 4000K LED



Body

  • Slim-line linear LED suspended lighting system
  • Available in continuous or standalone
  • Continuous luminaires are supplied complete with continuous mounting kit and brackets and are through-wired as standard
  • IP20
  • When continuously mounting, LEDs run the entire length of each light engine, eliminating dark spots and shadows
  • Slim extruded aluminium body finished in textured white or textured silver
  • RAL Colour: Silver RAL9006 or White RAL9003
  • End cap kit to be ordered separately
  • One suspension wire (2m long) included with each luminaire and each end cap kit
  • Avenue Micro Recessed also available, see dedicated web page
  • Available with integral emergency:
    • 3 hour self contained
    • 3 hour addressable test
  • Emergency outputs:
    • Downlight only - 370 lumens
    • Up/downlight - 390 lumens
Family Datasheet
 Product Downloads

Enquire about Avenue Micro Suspended

Submit

*Mandatory fields

  • Continuous, Textured Silver
    Continuous, Textured Silver Fixed Output LL/CW L70 B50
    L80    		 L90
    1122mm - 1394 lumens (13.6W) AMSH2S 102 60K 60K 50K
    1122mm - 1700 lumens with uplight (15.9W) AMSUPH2S 107 60K 60K 50K
    2244mm - 2787 lumens (27.1W) AMSH3S 102 60K 60K 50K
    2244mm - 3399 lumens with uplight (31.7W) AMSUPH3S 106 60K 60K 50K

    Note: Luminaire codes AMSY3 and AMSUPY3 have 2 drivers and require 2 DALI addresses

    Standalone, Textured Silver
    Standalone, Textured Silver Fixed Output LL/CW L70 B50
    L80    		 L90
    1122mm - 1394 lumens (13.6W) AMSSTH2S 102 60K 60K 50K
    1122mm - 1700 lumens with uplight (15.9W) AMSSTUPH2S 107 60K 60K 50K

    Accessories
    End cap kit (pair), textured silver AMSECS

    Options
    DALI Replace H with Y i.e AMSY2S
    Textured White Replace S with W i.e AMSH2W
    3000K Add '3' after 2 or 3 i.e AMSH23S
    3 hour emergency Add suffix 'EM' i.e AMSH2SEM
    3 hour COMEPS emergency Add suffix 'EP' i.e AMSH2SEP

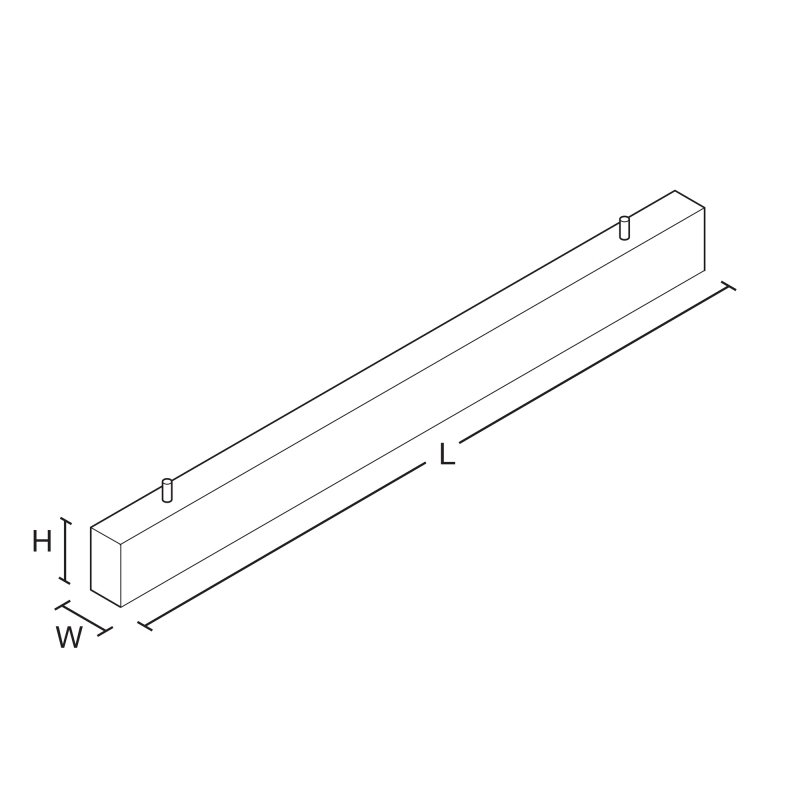

  • Dimensions Diagram 1
    VERSION L W H KG
    1394lm 1122 46 104 2.6
    1700lm (with uplight) 1122 46 104 3.1
    2787lm 2244 46 104 5.3
    3399lm (with uplight) 2244 46 104 6.1

  • Photometic Performance

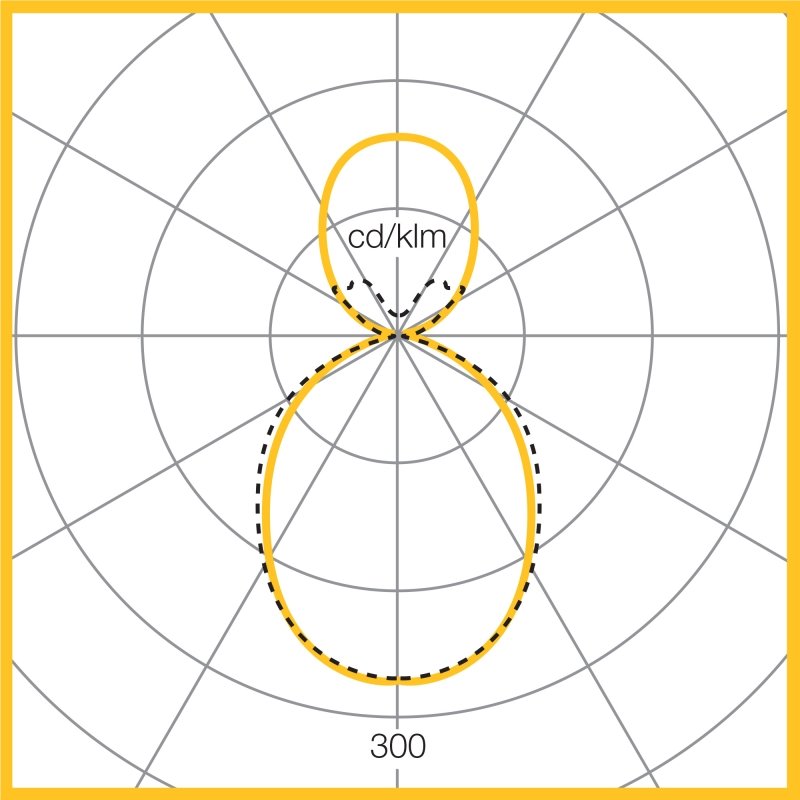

    Photometic Performance Diagram - 4000K Up/Downlight 15.9W LED 1700 Lumens
    4000K Up/Downlight 15.9W LED 1700 Lumens
    LOR = 100.0%
    SHR MAX = 1.48

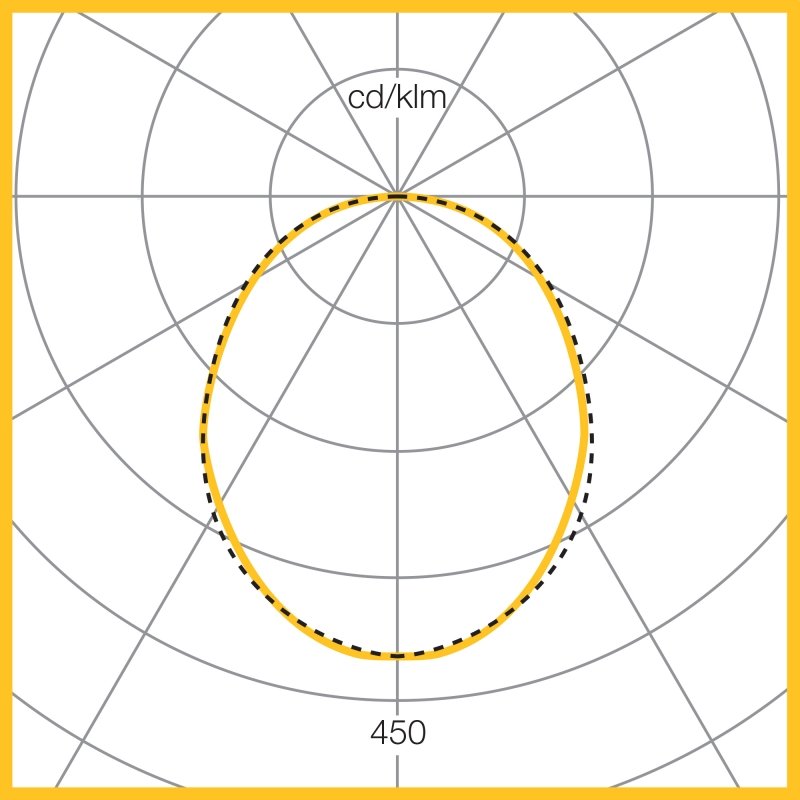

    Photometic Performance Diagram - 4000K 27.1W LED 2787 Lumens
    4000K 27.1W LED 2787 Lumens
    LOR = 100.0%
    SHR MAX = 1.49

    LED Performance

    Colour Temp RA (CRI) Colour consistency
    4000K >80 MacAdam 3 SDCM

  • Slim-line suspended linear LED luminaire for continuous or standalone applications. Micropolymer Tp(a) rated diffuser – as Whitecroft Lighting AVENUE MICRO SUSPENDED.
