Cascade Flex

Sustainable feature recessed luminaire offering differentiation for office and associated environments

120+ LL/CW Flying Lead IK08 IP44 Organic Response Made in Britain

Please note this product has been withdrawn. Contact us for alternative.

Cascade Flex 600 Pod recessed

Cascade Flex 600 Pod recessed

Cascade Flex 600 Pod OR recessed

Cascade Flex 600 Pod OR recessed

600x600 Pod, OR3

600x600 Pod, OR3

600x600 Diffuser, OR3

600x600 Diffuser, OR3

600x600 Diffuser

600x600 Diffuser

1200x300 Pod

1200x300 Pod

1200x300 Pod, OR3

1200x300 Pod, OR3

1200x300 Pod

1200x300 Pod

1200x300 Pod, OR3

1200x300 Pod, OR3

Removable Cartridge

Removable Cartridge

Explore our product range

Cascade Flex 600 Pod recessed
Cascade Flex 600 Pod OR recessed
600x600 Pod, OR3
600x600 Diffuser, OR3
600x600 Diffuser
1200x300 Pod
1200x300 Pod, OR3
1200x300 Pod
1200x300 Pod, OR3
Removable Cartridge

Overview

Designed with a sustainable approach the Cascade Flex is a new generation of recessed luminaire. Careful consideration has been given to the materials used and the effect they have on people and the environment. The luminaire features a replaceable central cartridge which can be returned, refurbished and reused multiple times ensuring that the materials remain in use without a sacrifice to the luminaires performance, before eventually being recycled at the end of its life.

The distinctive central optics and range of lumen outputs deliver both visual comfort and efficacy. The pod optic is the preferred option for areas where a higher level of glare control is required. It directs 80% of the output onto the task while the remaining 20% serves to illuminate the bevelled ceiling canopy. This results in an intermediate brightness zone which creates a contrasting field between the optic and the ceiling plane, adding visual interest and overall comfort.

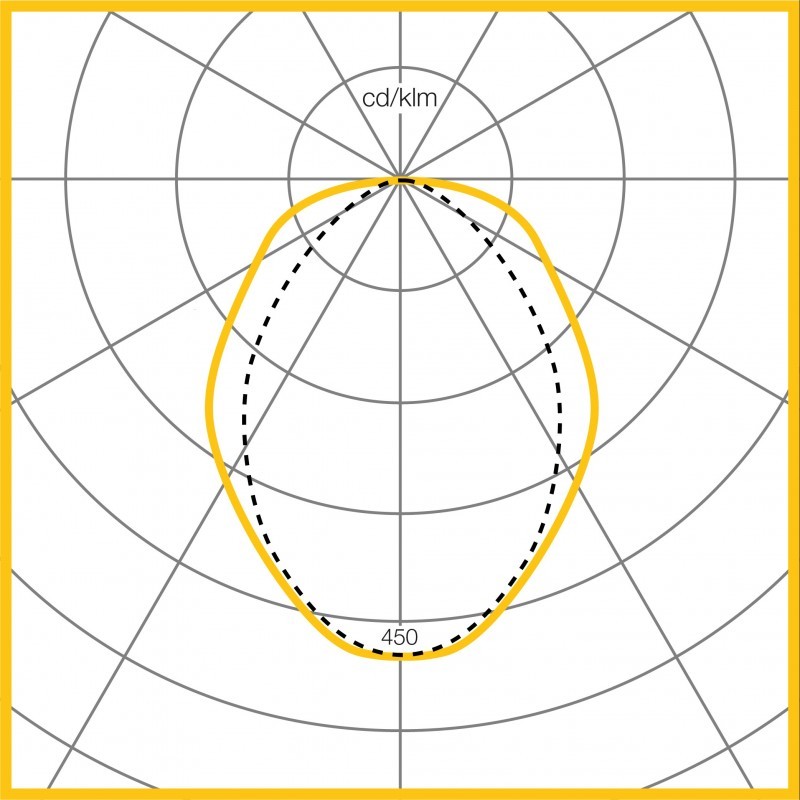

Optics

  • Outputs ranging from nominal 2300 to 5100 lumens
  • 4000K and 3000K colour temperature options
  • Greater than Ra 80 colour rendition
  • MacAdam 3 SDCM
  • L90 at 50,000 hours
  • Choice of pod or diffuser optics, delivering nominal outputs:
    • Pod: 600 x 600mm - 2300, 3300, 4100 & 4800 lumens
    • Pod: 1200 x 300mm - 3300 & 4100 lumens
    • Diffuser: 600 x 600mm - 2300, 3300, 4100 & 5100 lumens
  • Tp(a) rated

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet





Lifetime Data
Version L70B50 L80B50 L90B50
Diffuser 2300lm >100k >100k 58k
Diffuser 3300lm >100k >100k 58k
Diffuser 4100lm >100k >100k 54k
Diffuser 5100lm >100k >100k 50k
Pod 2300lm >100k >100k 58k
Pod 3300lm >100k >100k 54k
Pod 4100lm >100k >100k 51k
Pod 4800lm >100k >100k 50k





Emergency Outputs
Version CCT/CRI Emergency lumens
600 Diffuser 4000K, Ra80 355
600 Diffuser 3000K, Ra80 337
600 Pod 4000K, Ra80 329
600 Pod 3000K, Ra80 312
1200 Pod 4000K, Ra80 385
1200 Pod 3000K, Ra80 359



Body

  • Steel canopy finished in white RAL 9003
  • Suitable for a range of ceilings:

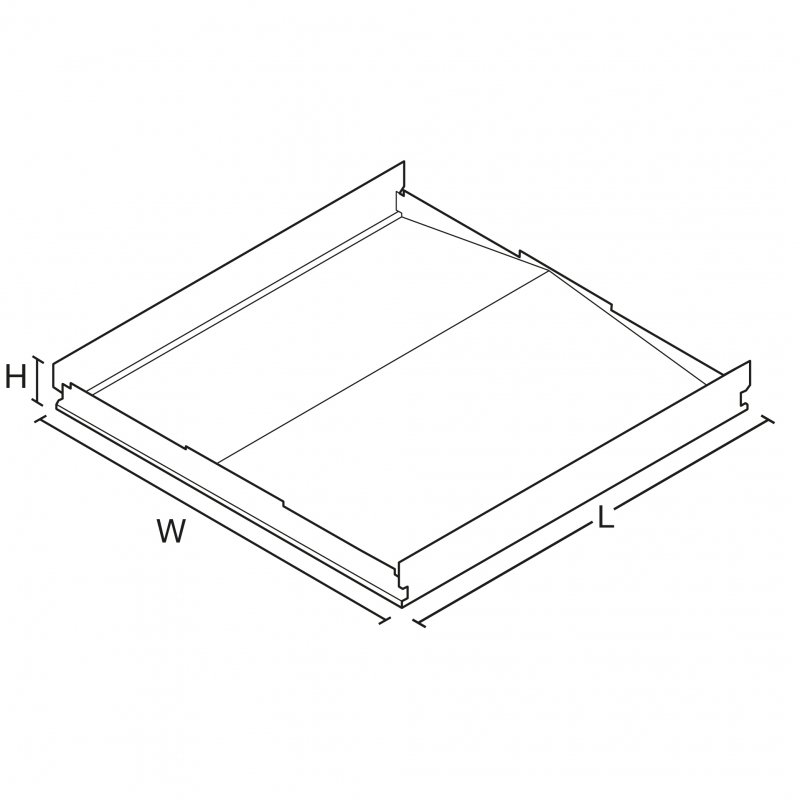

    • 600 x 600mm Exposed Tee (584 x 584mm - Ref 'XT')
    • 600 x 600mm Spring Tee (599 x 599mm - Ref 'ST')
    • 600 x 600mm Plasterboard (use 'XT' version with 'SFTPBF' frame accessory)

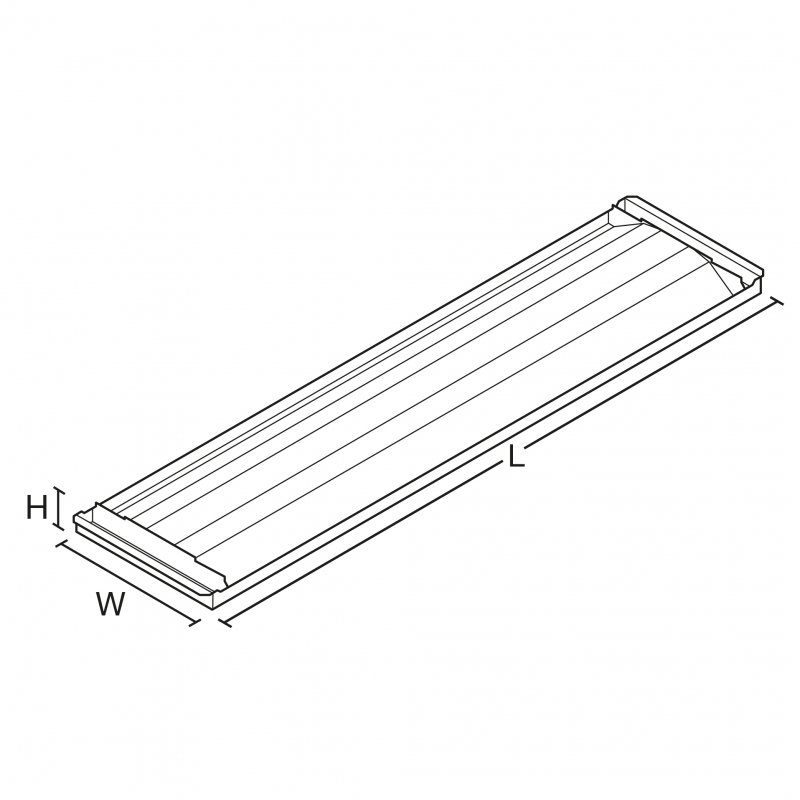

    • 1200 x 300mm (1194 x 297mm - SAS 330)
  • Replaceable central cartridge with optics and light engine
  • Emergency 3 hour self-contained and DALI test options
  • Emergency variants supplied with Lithium Iron Phosphate (LiFePO4) battery technology; featuring extended design life reducing replacement frequency to lower total cost of ownership, and advancing sustainability through support for end of life recycling
  • Also available with 'EW' Routefinder Wireless for addressable emergency testing without the need for a 2 core communication cable
  • Fixed output or DALI 2 standard drivers
  • Integral Organic Response sensor option
  • Air Control option (requires remote detector)
  • Can be used with MSU Kit for Mental Health - Medium Secure Unit & Anti-Ligature applications
  • Note: All DALI variants require 1 DALI address per driver. COMEPS variants will require an additional DALI address.
Family Datasheet
 Product Downloads

Enquire about Cascade Flex

Submit

*Mandatory fields

Customise your solution

Explore custom made

Create your own

Customise this product

Enquire now Find out more

    Product filter

    Clear filters
    Pod Optic, 600mm
    Number of Parts: 156
    Info & Downloads

    Click on part code below for downloads

    Part Code Optic Ceiling Type Colour Temperature Driver Type Output (lm) Power (W) Emergency Type Integral Controls Nominal Lumens Downloads
    C6PH14K8XT Pod 600 XT 4000K, Ra80 Fixed Output 2295 18.5 N/A N/A 2300 View
    C6PH14K8XTLEM Pod 600 XT 4000K, Ra80 Fixed Output 2295 18.5 3 hr EM LiFeP04 N/A 2300 View
    C6PH14K8XTLEP Pod 600 XT 4000K, Ra80 Fixed Output 2295 18.5 3 hr EP LiFeP04 N/A 2300 View
    C6PH24K8XT Pod 600 XT 4000K, Ra80 Fixed Output 3268 26.9 N/A N/A 3300 View
    C6PH24K8XTLEM Pod 600 XT 4000K, Ra80 Fixed Output 3268 26.9 3 hr EM LiFeP04 N/A 3300 View
    C6PH24K8XTLEP Pod 600 XT 4000K, Ra80 Fixed Output 3268 26.9 3 hr EP LiFeP04 N/A 3300 View
    C6PH34K8XT Pod 600 XT 4000K, Ra80 Fixed Output 4140 34.5 N/A N/A 4100 View
    C6PH34K8XTLEM Pod 600 XT 4000K, Ra80 Fixed Output 4140 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PH34K8XTLEP Pod 600 XT 4000K, Ra80 Fixed Output 4140 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PBRGY14K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 N/A ORGANIC RESPONSE 3 2300 View
    C6PBRGY14K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY14K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY24K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 N/A ORGANIC RESPONSE 3 3300 View
    C6PBRGY24K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY24K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY34K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 N/A ORGANIC RESPONSE 3 4100 View
    C6PBRGY34K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PBRGY34K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PEACY24K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 N/A AIR CONTROL 3300 View
    C6PEACY24K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EM LiFeP04 AIR CONTROL 3300 View
    C6PEACY34K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 N/A AIR CONTROL 4100 View
    C6PEYAC24K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EM LiFeP04 AIR CONTROL 4100 View
    C6PY14K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 N/A N/A 2300 View
    C6PY14K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EM LiFeP04 N/A 2300 View
    C6PY14K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EP LiFeP04 N/A 2300 View
    C6PY24K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 N/A N/A 3300 View
    C6PY24K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EM LiFeP04 N/A 3300 View
    C6PY24K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EP LiFeP04 N/A 3300 View
    C6PY34K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 N/A N/A 4100 View
    C6PY34K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PY34K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PH13K8XT Pod 600 XT 3000K, RA80 Fixed Output 2312 19.7 N/A N/A 2300 View
    C6PH13K8XTLEM Pod 600 XT 3000K, RA80 Fixed Output 2312 19.7 3 hr EM LiFeP04 N/A 2300 View
    C6PH13K8XTLEP Pod 600 XT 3000K, RA80 Fixed Output 2312 19.7 3 hr EP LiFeP04 N/A 2300 View
    C6PH23K8XT Pod 600 XT 3000K, RA80 Fixed Output 3304 28.7 N/A N/A 3300 View
    C6PH23K8XTLEM Pod 600 XT 3000K, RA80 Fixed Output 3304 28.7 3 hr EM LiFeP04 N/A 3300 View
    C6PH23K8XTLEP Pod 600 XT 3000K, RA80 Fixed Output 3304 28.7 3 hr EP LiFeP04 N/A 3300 View
    C6PH33K8XT Pod 600 XT 3000K, RA80 Fixed Output 3941 34.5 N/A N/A 4100 View
    C6PH33K8XTLEM Pod 600 XT 3000K, RA80 Fixed Output 3941 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PH33K8XTLEP Pod 600 XT 3000K, RA80 Fixed Output 3941 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PBRGY13K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 2312 19.7 N/A ORGANIC RESPONSE 3 2300 View
    C6PBRGY13K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY13K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY23K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 3304 28.7 N/A ORGANIC RESPONSE 3 3300 View
    C6PBRGY23K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY23K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY33K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 3941 34.5 N/A ORGANIC RESPONSE 3 4100 View
    C6PBRGY33K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PBRGY33K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PY13K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 2312 19.7 N/A N/A 2300 View
    C6PY13K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EM LiFeP04 N/A 2300 View
    C6PY13K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EP LiFeP04 N/A 2300 View
    C6PY23K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 3304 28.7 N/A N/A 3300 View
    C6PY23K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EM LiFeP04 N/A 3300 View
    C6PY23K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EP LiFeP04 N/A 3300 View
    C6PY33K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 3941 34.5 N/A N/A 4100 View
    C6PY33K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PY33K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PH14K8ST Pod 600 ST 4000K, Ra80 Fixed Output 2295 18.5 N/A N/A 2300 View
    C6PH14K8STLEM Pod 600 ST 4000K, Ra80 Fixed Output 2295 18.5 3 hr EM LiFeP04 N/A 2300 View
    C6PH14K8STLEP Pod 600 ST 4000K, Ra80 Fixed Output 2295 18.5 3 hr EP LiFeP04 N/A 2300 View
    C6PH24K8ST Pod 600 ST 4000K, Ra80 Fixed Output 3268 26.9 N/A N/A 3300 View
    C6PH24K8STLEM Pod 600 ST 4000K, Ra80 Fixed Output 3268 26.9 3 hr EM LiFeP04 N/A 3300 View
    C6PH24K8STLEP Pod 600 ST 4000K, Ra80 Fixed Output 3268 26.9 3 hr EP LiFeP04 N/A 3300 View
    C6PH34K8ST Pod 600 ST 4000K, Ra80 Fixed Output 4140 34.5 N/A N/A 4100 View
    C6PH34K8STLEM Pod 600 ST 4000K, Ra80 Fixed Output 4140 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PH34K8STLEP Pod 600 ST 4000K, Ra80 Fixed Output 4140 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PBRGY14K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 2295 18.5 N/A ORGANIC RESPONSE 3 2300 View
    C6PBRGY14K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY14K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY24K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 3268 26.9 N/A ORGANIC RESPONSE 3 3300 View
    C6PBRGY24K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY24K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY34K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 N/A ORGANIC RESPONSE 3 4100 View
    C6PBRGY34K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PBRGY34K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PY14K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 2295 18.5 N/A N/A 2300 View
    C6PY14K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EM LiFeP04 N/A 2300 View
    C6PY14K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 2295 18.5 3 hr EP LiFeP04 N/A 2300 View
    C6PY24K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 3268 26.9 N/A N/A 3300 View
    C6PY24K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EM LiFeP04 N/A 3300 View
    C6PY24K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 3268 26.9 3 hr EP LiFeP04 N/A 3300 View
    C6PY34K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 N/A N/A 4100 View
    C6PY34K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PY34K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PH13K8ST Pod 600 ST 3000K, RA80 Fixed Output 2312 19.7 N/A N/A 2300 View
    C6PH13K8STLEM Pod 600 ST 3000K, RA80 Fixed Output 2312 19.7 3 hr EM LiFeP04 N/A 2300 View
    C6PH13K8STLEP Pod 600 ST 3000K, RA80 Fixed Output 2312 19.7 3 hr EP LiFeP04 N/A 2300 View
    C6PH23K8ST Pod 600 ST 3000K, RA80 Fixed Output 3304 28.7 N/A N/A 3300 View
    C6PH23K8STLEM Pod 600 ST 3000K, RA80 Fixed Output 3304 28.7 3 hr EM LiFeP04 N/A 3300 View
    C6PH23K8STLEP Pod 600 ST 3000K, RA80 Fixed Output 3304 28.7 3 hr EP LiFeP04 N/A 3300 View
    C6PH33K8ST Pod 600 ST 3000K, RA80 Fixed Output 3941 34.5 N/A N/A 4100 View
    C6PH33K8STLEM Pod 600 ST 3000K, RA80 Fixed Output 3941 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PH33K8STLEP Pod 600 ST 3000K, RA80 Fixed Output 3941 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PBRGY13K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 2312 19.7 N/A ORGANIC RESPONSE 3 2300 View
    C6PBRGY13K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY13K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6PBRGY23K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 3304 28.7 N/A ORGANIC RESPONSE 3 3300 View
    C6PBRGY23K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY23K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY33K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 3941 34.5 N/A ORGANIC RESPONSE 3 4100 View
    C6PBRGY33K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PBRGY33K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PY13K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 2312 19.7 N/A N/A 2300 View
    C6PY13K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EM LiFeP04 N/A 2300 View
    C6PY13K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 2312 19.7 3 hr EP LiFeP04 N/A 2300 View
    C6PY23K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 3304 28.7 N/A N/A 3300 View
    C6PY23K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EM LiFeP04 N/A 3300 View
    C6PY23K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 3304 28.7 3 hr EP LiFeP04 N/A 3300 View
    C6PY33K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 3941 34.5 N/A N/A 4100 View
    C6PY33K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EM LiFeP04 N/A 4100 View
    C6PY33K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 3941 34.5 3 hr EP LiFeP04 N/A 4100 View
    C6PBRGY24K8XTLEW Pod 600 XT 4000K, Ra80 DALI LED Driver 3268 26.9 Routefinder Wireless LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6PBRGY34K8STLEW Pod 600 ST 4000K, Ra80 DALI LED Driver 4140 34.5 Routefinder Wireless LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PBRGY34K8XTLEW Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 Routefinder Wireless LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6PH14K8XTLEW Pod 600 XT 4000K, Ra80 Fixed Output 2295 19 Routefinder Wireless LiFeP04 N/A 2300 View
    C6PH24K8XTLEW Pod 600 XT 4000K, Ra80 Fixed Output 3268 26.9 Routefinder Wireless LiFeP04 N/A 3300 View
    C6PH34K8XTLEW Pod 600 XT 4000K, Ra80 Fixed Output 4140 34.5 Routefinder Wireless LiFeP04 N/A 4100 View
    C6PY14K8XTLEW Pod 600 XT 4000K, Ra80 DALI LED Driver 2295 18.5 Routefinder Wireless LiFeP04 N/A 2300 View
    C6PY34K8XTLEW Pod 600 XT 4000K, Ra80 DALI LED Driver 4140 34.5 Routefinder Wireless LiFeP04 N/A 4100 View
    C6PH44K8XT Pod 600 XT 4000K, Ra80 Fixed Output 4800 43 N/A N/A 4800 View
    C6PH44K8XTLEM Pod 600 XT 4000K, Ra80 Fixed Output 4800 43 3 hr EM LiFeP04 N/A 4800 View
    C6PH44K8XTLEP Pod 600 XT 4000K, Ra80 Fixed Output 4800 43 3 hr EP LiFeP04 N/A 4800 View
    C6PY44K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 4800 43 N/A N/A 4800 View
    C6PY44K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 4800 43 3 hr EM LiFeP04 N/A 4800 View
    C6PY44K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 4800 43 3 hr EP LiFeP04 N/A 4800 View
    C6PH43K8XT Pod 600 XT 3000K, RA80 Fixed Output 4560 43 N/A N/A 4800 View
    C6PH43K8XTLEM Pod 600 XT 3000K, RA80 Fixed Output 4560 43 3 hr EM LiFeP04 N/A 4800 View
    C6PH43K8XTLEP Pod 600 XT 3000K, RA80 Fixed Output 4560 43 3 hr EP LiFeP04 N/A 4800 View
    C6PY43K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 4560 43 N/A N/A 4800 View
    C6PY43K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 4560 43 3 hr EM LiFeP04 N/A 4800 View
    C6PY43K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 4560 43 3 hr EP LiFeP04 N/A 4800 View
    C6PH44K8ST Pod 600 ST 4000K, Ra80 Fixed Output 4800 43 N/A N/A 4800 View
    C6PH44K8STLEM Pod 600 ST 4000K, Ra80 Fixed Output 4800 43 3 hr EM LiFeP04 N/A 4800 View
    C6PH44K8STLEP Pod 600 ST 4000K, Ra80 Fixed Output 4800 43 3 hr EP LiFeP04 N/A 4800 View
    C6PY44K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 4800 43 N/A N/A 4800 View
    C6PY44K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 4800 43 3 hr EM LiFeP04 N/A 4800 View
    C6PY44K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 4800 43 3 hr EP LiFeP04 N/A 4800 View
    C6PH43K8ST Pod 600 ST 3000K, RA80 Fixed Output 4560 43 N/A N/A 4800 View
    C6PH43K8STLEM Pod 600 ST 3000K, RA80 Fixed Output 4560 43 3 hr EM LiFeP04 N/A 4800 View
    C6PH43K8STLEP Pod 600 ST 3000K, RA80 Fixed Output 4560 43 3 hr EP LiFeP04 N/A 4800 View
    C6PY43K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 4560 43 N/A N/A 4800 View
    C6PY43K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 4560 43 3 hr EM LiFeP04 N/A 4800 View
    C6PY43K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 4560 43 3 hr EP LiFeP04 N/A 4800 View
    C6PBRGY44K8XT Pod 600 XT 4000K, Ra80 DALI LED Driver 4800 43 N/A ORGANIC RESPONSE 3 4800 View
    C6PBRGY44K8XTLEM Pod 600 XT 4000K, Ra80 DALI LED Driver 4800 43 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY44K8XTLEP Pod 600 XT 4000K, Ra80 DALI LED Driver 4800 43 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY43K8XT Pod 600 XT 3000K, RA80 DALI LED Driver 4560 43 N/A ORGANIC RESPONSE 3 4800 View
    C6PBRGY43K8XTLEM Pod 600 XT 3000K, RA80 DALI LED Driver 4560 43 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY43K8XTLEP Pod 600 XT 3000K, RA80 DALI LED Driver 4560 43 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY44K8ST Pod 600 ST 4000K, Ra80 DALI LED Driver 4800 43 N/A ORGANIC RESPONSE 3 4800 View
    C6PBRGY44K8STLEM Pod 600 ST 4000K, Ra80 DALI LED Driver 4800 43 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY44K8STLEP Pod 600 ST 4000K, Ra80 DALI LED Driver 4800 43 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY43K8ST Pod 600 ST 3000K, RA80 DALI LED Driver 4560 43 N/A ORGANIC RESPONSE 3 4800 View
    C6PBRGY43K8STLEM Pod 600 ST 3000K, RA80 DALI LED Driver 4560 43 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4800 View
    C6PBRGY43K8STLEP Pod 600 ST 3000K, RA80 DALI LED Driver 4560 43 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4800 View
    Diffuser, 600mm
    Number of Parts: 149
    Info & Downloads

    Click on part code below for downloads

    Part Code Optic Ceiling Type Colour Temperature Driver Type Output (lm) Power (W) Emergency Type Integral Controls Nominal Lumens Downloads
    C6DH14K8XT Diffuser 600 XT 4000K, Ra80 Fixed Output 2310 19.4 N/A N/A 2300 View
    C6DH14K8XTLEM Diffuser 600 XT 4000K, Ra80 Fixed Output 2310 19.4 3 hr EM LiFeP04 N/A 2300 View
    C6DH14K8XTLEP Diffuser 600 XT 4000K, Ra80 Fixed Output 2310 19.4 3 hr EP LiFeP04 N/A 2300 View
    C6DH24K8XT Diffuser 600 XT 4000K, Ra80 Fixed Output 3300 27.9 N/A N/A 3300 View
    C6DH24K8XTLEM Diffuser 600 XT 4000K, Ra80 Fixed Output 3300 27.9 3 hr EM LiFeP04 N/A 3300 View
    C6DH24K8XTLEP Diffuser 600 XT 4000K, Ra80 Fixed Output 3300 27.9 3 hr EP LiFeP04 N/A 3300 View
    C6DH34K8XT Diffuser 600 XT 4000K, Ra80 Fixed Output 4118 36 N/A N/A 4100 View
    C6DH34K8XTLEM Diffuser 600 XT 4000K, Ra80 Fixed Output 4118 36 3 hr EM LiFeP04 N/A 4100 View
    C6DH34K8XTLEP Diffuser 600 XT 4000K, Ra80 Fixed Output 4118 36 3 hr EP LiFeP04 N/A 4100 View
    C6DH44K8XT Diffuser 600 XT 4000K, Ra80 Fixed Output 5083 46 N/A N/A 5100 View
    C6DH44K8XTLEM Diffuser 600 XT 4000K, Ra80 Fixed Output 5083 46 3 hr EM LiFeP04 N/A 5100 View
    C6DH44K8XTLEP Diffuser 600 XT 4000K, Ra80 Fixed Output 5083 46 3 hr EP LiFeP04 N/A 5100 View
    C6DBRGY14K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 N/A ORGANIC RESPONSE 3 2300 View
    C6DBRGY14K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY14K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY24K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 N/A ORGANIC RESPONSE 3 3300 View
    C6DBRGY24K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY24K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY34K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 4118 36 N/A ORGANIC RESPONSE 3 4100 View
    C6DBRGY34K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 4118 36 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY34K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 4118 36 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY44K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 5083 46 N/A ORGANIC RESPONSE 3 5100 View
    C6DBRGY44K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 5083 46 3 hr EM LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DBRGY44K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 5083 46 3 hr EP LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DY14K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 N/A N/A 2300 View
    C6DY14K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EM LiFeP04 N/A 2300 View
    C6DY14K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EP LiFeP04 N/A 2300 View
    C6DY24K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 N/A N/A 3300 View
    C6DY24K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EM LiFeP04 N/A 3300 View
    C6DY24K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EP LiFeP04 N/A 3300 View
    C6DY34K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 4118 36 N/A N/A 4100 View
    C6DY34K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 4118 36 3 hr EM LiFeP04 N/A 4100 View
    C6DY34K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 4118 36 3 hr EP LiFeP04 N/A 4100 View
    C6DY44K8XT Diffuser 600 XT 4000K, Ra80 DALI LED Driver 5083 46 N/A N/A 5100 View
    C6DY44K8XTLEM Diffuser 600 XT 4000K, Ra80 DALI LED Driver 5083 46 3 hr EM LiFeP04 N/A 5100 View
    C6DY44K8XTLEP Diffuser 600 XT 4000K, Ra80 DALI LED Driver 5083 46 3 hr EP LiFeP04 N/A 5100 View
    C6DH13K8XT Diffuser 600 XT 3000K, RA80 Fixed Output 2327 20.7 N/A N/A 2300 View
    C6DH13K8XTLEM Diffuser 600 XT 3000K, RA80 Fixed Output 2327 20.7 3 hr EM LiFeP04 N/A 2300 View
    C6DH13K8XTLEP Diffuser 600 XT 3000K, RA80 Fixed Output 2327 20.7 3 hr EP LiFeP04 N/A 2300 View
    C6DH23K8XT Diffuser 600 XT 3000K, RA80 Fixed Output 3327 30 N/A N/A 3300 View
    C6DH23K8XTLEM Diffuser 600 XT 3000K, RA80 Fixed Output 3327 30 3 hr EM LiFeP04 N/A 3300 View
    C6DH23K8XTLEP Diffuser 600 XT 3000K, RA80 Fixed Output 3327 30 3 hr EP LiFeP04 N/A 3300 View
    C6DH33K8XT Diffuser 600 XT 3000K, RA80 Fixed Output 4161 38.5 N/A N/A 4100 View
    C6DH33K8XTLEM Diffuser 600 XT 3000K, RA80 Fixed Output 4161 38.5 3 hr EM LiFeP04 N/A 4100 View
    C6DH33K8XTLEP Diffuser 600 XT 3000K, RA80 Fixed Output 4161 38.5 3 hr EP LiFeP04 N/A 4100 View
    C6DH43K8XT Diffuser 600 XT 3000K, RA80 Fixed Output 5044 48.7 N/A N/A 5100 View
    C6DH43K8XTLEM Diffuser 600 XT 3000K, RA80 Fixed Output 5044 48.7 3 hr EM LiFeP04 N/A 5100 View
    C6DH43K8XTLEP Diffuser 600 XT 3000K, RA80 Fixed Output 5044 48.7 3 hr EP LiFeP04 N/A 5100 View
    C6DBRGY13K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 2327 20.7 N/A ORGANIC RESPONSE 3 2300 View
    C6DBRGY13K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY13K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY23K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 3327 30 N/A ORGANIC RESPONSE 3 3300 View
    C6DBRGY23K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 3327 30 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY23K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 3327 30 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY33K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 4161 38.5 N/A ORGANIC RESPONSE 3 4100 View
    C6DBRGY33K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY33K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY43K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 5044 48.7 N/A ORGANIC RESPONSE 3 5100 View
    C6DBRGY43K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DBRGY43K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DY13K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 2327 20.7 N/A N/A 2300 View
    C6DY13K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EM LiFeP04 N/A 2300 View
    C6DY13K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EP LiFeP04 N/A 2300 View
    C6DY23K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 3327 30 N/A N/A 3300 View
    C6DY23K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 3327 30 3 hr EM LiFeP04 N/A 3300 View
    C6DY23K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 3327 30 3 hr EP LiFeP04 N/A 3300 View
    C6DY33K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 4161 38.5 N/A N/A 4100 View
    C6DY33K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EM LiFeP04 N/A 4100 View
    C6DY33K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EP LiFeP04 N/A 4100 View
    C6DY43K8XT Diffuser 600 XT 3000K, RA80 DALI LED Driver 5044 48.7 N/A N/A 5100 View
    C6DY43K8XTLEM Diffuser 600 XT 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EM LiFeP04 N/A 5100 View
    C6DY43K8XTLEP Diffuser 600 XT 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EP LiFeP04 N/A 5100 View
    C6DH14K8ST Diffuser 600 ST 4000K, Ra80 Fixed Output 2310 19.4 N/A N/A 2300 View
    C6DH14K8STLEM Diffuser 600 ST 4000K, Ra80 Fixed Output 2310 19.4 3 hr EM LiFeP04 N/A 2300 View
    C6DH14K8STLEP Diffuser 600 ST 4000K, Ra80 Fixed Output 2310 19.4 3 hr EP LiFeP04 N/A 2300 View
    C6DH24K8ST Diffuser 600 ST 4000K, Ra80 Fixed Output 3300 27.9 N/A N/A 3300 View
    C6DH24K8STLEM Diffuser 600 ST 4000K, Ra80 Fixed Output 3300 27.9 3 hr EM LiFeP04 N/A 3300 View
    C6DH24K8STLEP Diffuser 600 ST 4000K, Ra80 Fixed Output 3300 27.9 3 hr EP LiFeP04 N/A 3300 View
    C6DH34K8ST Diffuser 600 ST 4000K, Ra80 Fixed Output 4118 36 N/A N/A 4100 View
    C6DH34K8STLEM Diffuser 600 ST 4000K, Ra80 Fixed Output 4118 36 3 hr EM LiFeP04 N/A 4100 View
    C6DH34K8STLEP Diffuser 600 ST 4000K, Ra80 Fixed Output 4118 36 3 hr EP LiFeP04 N/A 4100 View
    C6DH44K8ST Diffuser 600 ST 4000K, Ra80 Fixed Output 5083 46 N/A N/A 5100 View
    C6DH44K8STLEM Diffuser 600 ST 4000K, Ra80 Fixed Output 5083 46 3 hr EM LiFeP04 N/A 5100 View
    C6DH44K8STLEP Diffuser 600 ST 4000K, Ra80 Fixed Output 5083 46 3 hr EP LiFeP04 N/A 5100 View
    C6DBRGY14K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 2310 19.4 N/A ORGANIC RESPONSE 3 2300 View
    C6DBRGY14K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY14K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY24K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 3300 27.9 N/A ORGANIC RESPONSE 3 3300 View
    C6DBRGY24K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY24K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY34K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 4118 36 N/A ORGANIC RESPONSE 3 4100 View
    C6DBRGY34K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 4118 36 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY34K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 4118 36 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY44K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 5083 46 N/A ORGANIC RESPONSE 3 5100 View
    C6DBRGY44K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 5083 46 3 hr EM LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DBRGY44K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 5083 46 3 hr EP LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DY14K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 2310 19.4 N/A N/A 2300 View
    C6DY14K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EM LiFeP04 N/A 2300 View
    C6DY14K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 2310 19.4 3 hr EP LiFeP04 N/A 2300 View
    C6DY24K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 3300 27.9 N/A N/A 3300 View
    C6DY24K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EM LiFeP04 N/A 3300 View
    C6DY24K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 3300 27.9 3 hr EP LiFeP04 N/A 3300 View
    C6DY34K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 4118 36 N/A N/A 4100 View
    C6DY34K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 4118 36 3 hr EM LiFeP04 N/A 4100 View
    C6DY34K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 4118 36 3 hr EP LiFeP04 N/A 4100 View
    C6DY44K8ST Diffuser 600 ST 4000K, Ra80 DALI LED Driver 5083 46 N/A N/A 5100 View
    C6DY44K8STLEM Diffuser 600 ST 4000K, Ra80 DALI LED Driver 5083 46 3 hr EM LiFeP04 N/A 5100 View
    C6DY44K8STLEP Diffuser 600 ST 4000K, Ra80 DALI LED Driver 5083 46 3 hr EP LiFeP04 N/A 5100 View
    C6DH13K8ST Diffuser 600 ST 3000K, RA80 Fixed Output 2327 20.7 N/A N/A 2300 View
    C6DH13K8STLEM Diffuser 600 ST 3000K, RA80 Fixed Output 2327 20.7 3 hr EM LiFeP04 N/A 2300 View
    C6DH13K8STLEP Diffuser 600 ST 3000K, RA80 Fixed Output 2327 20.7 3 hr EP LiFeP04 N/A 2300 View
    C6DH23K8ST Diffuser 600 ST 3000K, RA80 Fixed Output 3327 30 N/A N/A 3300 View
    C6DH23K8STLEM Diffuser 600 ST 3000K, RA80 Fixed Output 3327 30 3 hr EM LiFeP04 N/A 3300 View
    C6DH23K8STLEP Diffuser 600 ST 3000K, RA80 Fixed Output 3327 30 3 hr EP LiFeP04 N/A 3300 View
    C6DH33K8ST Diffuser 600 ST 3000K, RA80 Fixed Output 4161 38.5 N/A N/A 4100 View
    C6DH33K8STLEM Diffuser 600 ST 3000K, RA80 Fixed Output 4161 38.5 3 hr EM LiFeP04 N/A 4100 View
    C6DH33K8STLEP Diffuser 600 ST 3000K, RA80 Fixed Output 4161 38.5 3 hr EP LiFeP04 N/A 4100 View
    C6DH43K8ST Diffuser 600 ST 3000K, RA80 Fixed Output 5044 48.7 N/A N/A 5100 View
    C6DH43K8STLEM Diffuser 600 ST 3000K, RA80 Fixed Output 5044 48.7 3 hr EM LiFeP04 N/A 5100 View
    C6DH43K8STLEP Diffuser 600 ST 3000K, RA80 Fixed Output 5044 48.7 3 hr EP LiFeP04 N/A 5100 View
    C6DBRGY13K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 2327 20.7 N/A ORGANIC RESPONSE 3 2300 View
    C6DBRGY13K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY13K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DBRGY23K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 3327 30 N/A ORGANIC RESPONSE 3 3300 View
    C6DBRGY23K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 3327 30 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY23K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 3327 30 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C6DBRGY33K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 4161 38.5 N/A ORGANIC RESPONSE 3 4100 View
    C6DBRGY33K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY33K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C6DBRGY43K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 5044 48.7 N/A ORGANIC RESPONSE 3 5100 View
    C6DBRGY43K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EM LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DBRGY43K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EP LiFeP04 ORGANIC RESPONSE 3 5100 View
    C6DY13K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 2327 20.7 N/A N/A 2300 View
    C6DY13K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EM LiFeP04 N/A 2300 View
    C6DY13K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 2327 20.7 3 hr EP LiFeP04 N/A 2300 View
    C6DY23K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 3327 30 N/A N/A 3300 View
    C6DY23K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 3327 30 3 hr EM LiFeP04 N/A 3300 View
    C6DY23K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 3327 30 3 hr EP LiFeP04 N/A 3300 View
    C6DY33K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 4161 38.5 N/A N/A 4100 View
    C6DY33K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EM LiFeP04 N/A 4100 View
    C6DY33K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 4161 38.5 3 hr EP LiFeP04 N/A 4100 View
    C6DY43K8ST Diffuser 600 ST 3000K, RA80 DALI LED Driver 5044 48.7 N/A N/A 5100 View
    C6DY43K8STLEM Diffuser 600 ST 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EM LiFeP04 N/A 5100 View
    C6DY43K8STLEP Diffuser 600 ST 3000K, RA80 DALI LED Driver 5044 48.7 3 hr EP LiFeP04 N/A 5100 View
    C6DBRGY14K8XTLEW Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 Routefinder Wireless LiFeP04 ORGANIC RESPONSE 3 2300 View
    C6DH24K8XTLEW Diffuser 600 XT 4000K, Ra80 Fixed Output 3300 27.9 Routefinder Wireless LiFeP04 N/A 3300 View
    C6DH34K8XTLEW Diffuser 600 XT 4000K, Ra80 Fixed Output 4118 36 Routefinder Wireless LiFeP04 N/A 4100 View
    C6DY14K8XTLEW Diffuser 600 XT 4000K, Ra80 DALI LED Driver 2310 19.4 Routefinder Wireless LiFeP04 N/A 2300 View
    C6DY24K8XTLEW Diffuser 600 XT 4000K, Ra80 DALI LED Driver 3300 27.9 Routefinder Wireless LiFeP04 N/A 3300 View
    Pod Optic, 1200mm
    Number of Parts: 36
    Info & Downloads

    Click on part code below for downloads

    Part Code Optic Ceiling Type Colour Temperature Driver Type Output (lm) Power (W) Emergency Type Integral Controls Nominal Lumens Downloads
    C12PH24K8 Pod 1200 SAS330 4000K, Ra80 Fixed Output 3302 25.3 N/A N/A 3300 View
    C12PH24K8LEM Pod 1200 SAS330 4000K, Ra80 Fixed Output 3302 25.3 3 hr EM LiFeP04 N/A 3300 View
    C12PH24K8LEP Pod 1200 SAS330 4000K, Ra80 Fixed Output 3302 25.3 3 hr EP LiFeP04 N/A 3300 View
    C12PH34K8 Pod 1200 SAS330 4000K, Ra80 Fixed Output 4104 31.4 N/A N/A 4100 View
    C12PH34K8LEM Pod 1200 SAS330 4000K, Ra80 Fixed Output 4104 31.4 3 hr EM LiFeP04 N/A 4100 View
    C12PH34K8LEP Pod 1200 SAS330 4000K, Ra80 Fixed Output 4104 31.4 3 hr EP LiFeP04 N/A 4100 View
    C12PRGY24K8 Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 3302 25.3 N/A ORGANIC RESPONSE 3 3300 View
    C12PRGY24K8LEM Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 3302 25.3 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C12PRGY24K8LEP Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 3302 25.3 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C12PRGY34K8 Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 4104 31.4 N/A ORGANIC RESPONSE 3 4100 View
    C12PRGY34K8LEM Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 4104 31.4 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C12PRGY34K8LEP Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 4104 31.4 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C12PY24K8 Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 3302 25.3 N/A N/A 3300 View
    C12PY24K8LEM Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 3302 25.3 3 hr EM LiFeP04 N/A 3300 View
    C12PY24K8LEP Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 3302 25.3 3 hr EP LiFeP04 N/A 3300 View
    C12PY34K8 Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 4104 31.4 N/A N/A 4100 View
    C12PY34K8LEM Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 4104 31.4 3 hr EM LiFeP04 N/A 4100 View
    C12PY34K8LEP Pod 1200 SAS330 4000K, Ra80 DALI LED Driver 4104 31.4 3 hr EP LiFeP04 N/A 4100 View
    C12PH23K8 Pod 1200 SAS330 3000K, RA80 Fixed Output 3304 26.8 N/A N/A 3300 View
    C12PH23K8LEM Pod 1200 SAS330 3000K, RA80 Fixed Output 3304 26.8 3 hr EM LiFeP04 N/A 3300 View
    C12PH23K8LEP Pod 1200 SAS330 3000K, RA80 Fixed Output 3304 26.8 3 hr EP LiFeP04 N/A 3300 View
    C12PH33K8 Pod 1200 SAS330 3000K, RA80 Fixed Output 4193 34.5 N/A N/A 4100 View
    C12PH33K8LEM Pod 1200 SAS330 3000K, RA80 Fixed Output 4193 34.5 3 hr EM LiFeP04 N/A 4100 View
    C12PH33K8LEP Pod 1200 SAS330 3000K, RA80 Fixed Output 4193 34.5 3 hr EP LiFeP04 N/A 4100 View
    C12PRGY23K8 Pod 1200 SAS330 3000K, RA80 DALI LED Driver 3304 26.8 N/A ORGANIC RESPONSE 3 3300 View
    C12PRGY23K8LEM Pod 1200 SAS330 3000K, RA80 DALI LED Driver 3304 26.8 3 hr EM LiFeP04 ORGANIC RESPONSE 3 3300 View
    C12PRGY23K8LEP Pod 1200 SAS330 3000K, RA80 DALI LED Driver 3304 26.8 3 hr EP LiFeP04 ORGANIC RESPONSE 3 3300 View
    C12PRGY33K8 Pod 1200 SAS330 3000K, RA80 DALI LED Driver 4193 34.5 N/A ORGANIC RESPONSE 3 4100 View
    C12PRGY33K8LEM Pod 1200 SAS330 3000K, RA80 DALI LED Driver 4193 34.5 3 hr EM LiFeP04 ORGANIC RESPONSE 3 4100 View
    C12PRGY33K8LEP Pod 1200 SAS330 3000K, RA80 DALI LED Driver 4193 34.5 3 hr EP LiFeP04 ORGANIC RESPONSE 3 4100 View
    C12PY23K8 Pod 1200 SAS330 3000K, RA80 DALI LED Driver 3304 26.8 N/A N/A 3300 View
    C12PY23K8LEM Pod 1200 SAS330 3000K, RA80 DALI LED Driver 3304 26.8 3 hr EM LiFeP04 N/A 3300 View
    C12PY23K8LEP Pod 1200 SAS330 3000K, RA80 DALI LED Driver 3304 26.8 3 hr EP LiFeP04 N/A 3300 View
    C12PY33K8 Pod 1200 SAS330 3000K, RA80 DALI LED Driver 4193 34.5 N/A N/A 4100 View
    C12PY33K8LEM Pod 1200 SAS330 3000K, RA80 DALI LED Driver 4193 34.5 3 hr EM LiFeP04 N/A 4100 View
    C12PY33K8LEP Pod 1200 SAS330 3000K, RA80 DALI LED Driver 4193 34.5 3 hr EP LiFeP04 N/A 4100 View
    Accessories
    Number of Parts: 1
    Info & Downloads

    Click on part code below for downloads

    Part Code Optic Ceiling Type Colour Temperature Driver Type Output (lm) Power (W) Emergency Type Integral Controls Nominal Lumens Downloads
    SFTPBF 600 x 600mm N/A N/A N/A View

    Cascade Flex

    Product Info:

    Dimensions Diagram 1
    VERSION L W H KG KG(EM)
    Exposed Tee 584 584 69 4.0 5.5
    Spring Tee 599 599 83 4.0 5.5
    Dimensions Diagram 2
    VERSION L W H KG KG(EM)
    SAS 330 1194 297 68 5.5 7.5

    Photometic Performance

    Photometic Performance Diagram - Pod optic
    Pod optic
    LOR = 100%
    Photometic Performance Diagram - Diffuser optic
    Diffuser optic
    LOR = 100%

    Recessed modular luminaire with strong visual differentiation using a central linear optic. The light engine cartridge is easily replaced without tools for simple future upgrades and replacement ensuring a sustainable lighting solution - as Whitecroft Lighting CASCADE FLEX

Product Downloads

Download

Add to ZIP

PDF Brochure
PDF Cascade Flex Datasheet
PDF Installation leaflet
PDF Part Code Logic
ZIP LDT
ZIP Dialux
ZIP ies
ZIP Revit
PDF Ceiling Compatibility
Back to top

Related Products

    ©2025 Whitecroft Lighting | Company number 3848973
