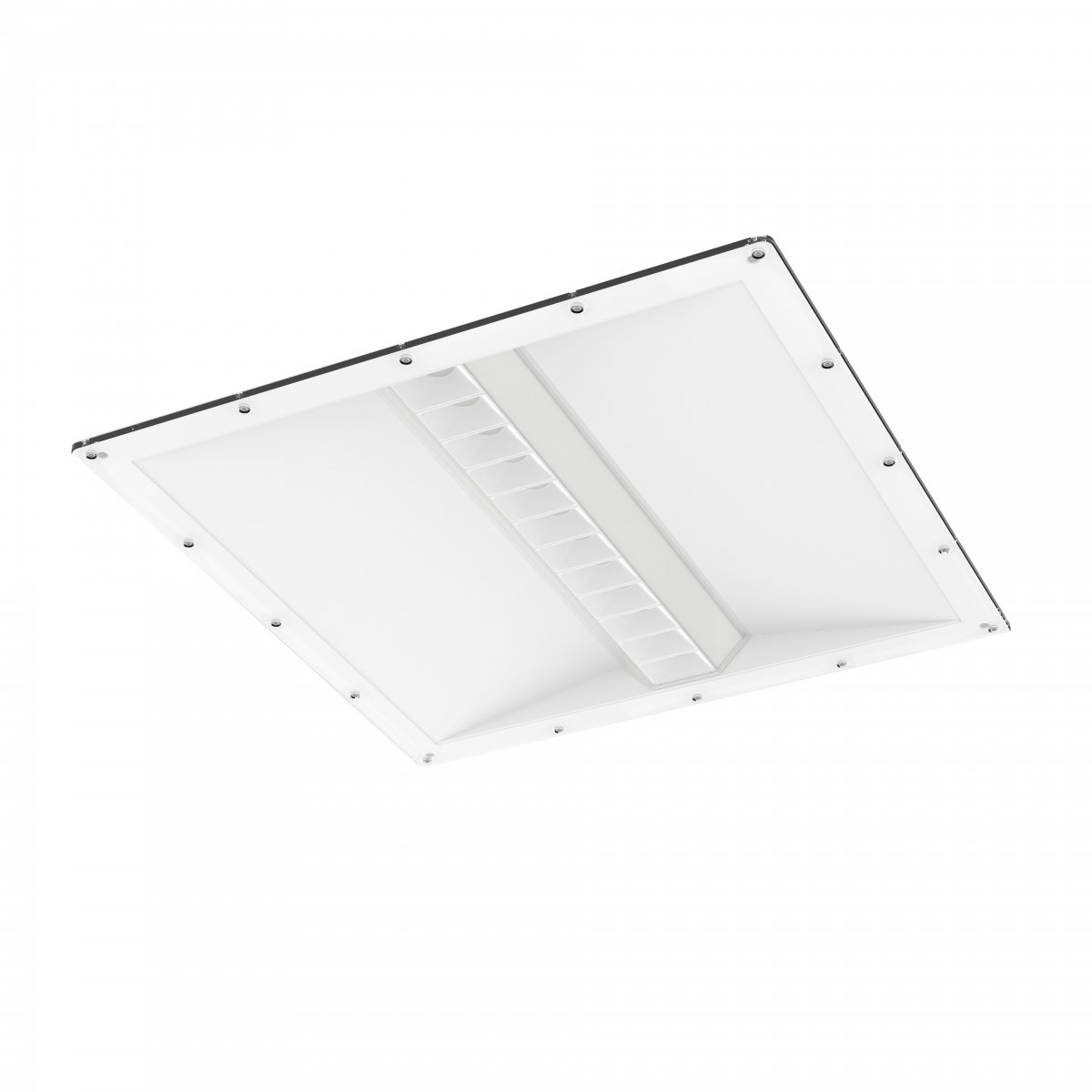

Recessed 600mm MSU Kit + Cascade Flex

Recessed 600mm MSU Kit + Cascade Flex

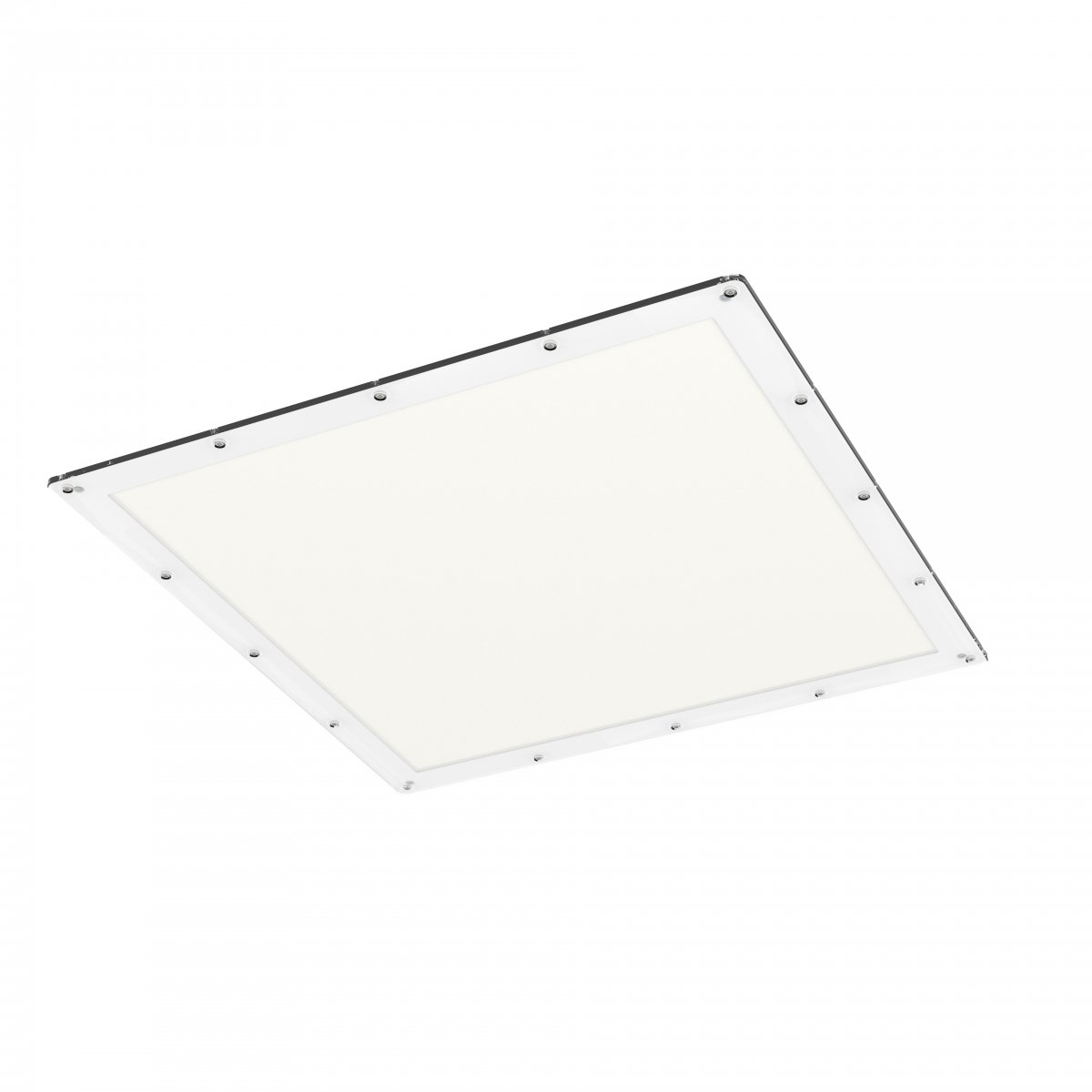

Recessed 600mm MSU Kit + Tegan 2

Recessed 600mm MSU Kit + Tegan 2

Recessed 600mm MSU Kit + Cascade Flex

Recessed 600mm MSU Kit + Cascade Flex

Recessed 600mm MSU Kit + Tegan 2

Recessed 600mm MSU Kit + Tegan 2

Overview

A robust protective kit comprising mounting frames, polycarbonate diffuser and tamperproof fixings. Independently tested and approved to comply the rigorous requirements of the Department of Health, Medium Secure Specification (MSS). Over and above IK10 impact rated and anti-ligature, the kit enables use of a standard luminaire in a Medium Secure Unit (MSU) environment.

Optics

  • 6mm clear polycarbonate
  • Tp(a) rated
  • 10% reduction in light output for calculation purposes

Body

  • To be used in conjunction with a standard 600 x 600mm (nominal) luminaire
  • Luminaire to be specified separately (see relevant product web page)
  • Compatible 600 x 600mm (nominal) recessed luminaires:
    • Cascade Flex (XT version)
    • Tegan 2 (XT version)
    • Tegan Tunable White (XT version)
    • Duo 2 Evo (XT version)
  • 1.2mm thick sheet steel ceiling plates above and below the ceiling
  • Retained by tamperproof fixing screws and integrated cage nuts
  • Maximum ceiling thickness 40mm
  • Ceiling plates finished white RAL 9003
  • IP40 ingress protection
  • Requires special access tool for installation and maintenance

600 Recessed MSU Kit

Description Order Code
600x600mm Recessed Kit Only MSKIT600

Luminaire to be ordered separately

Accessories

Description Order Code
Special access tool HAL-KEY3
VERSION KG Cut Aperture
600x600mm Recessed Kit Only 5.0 588 x 588mm

Requires void depth of 200mm from ceiling face for installation.
See Cascade Flex or Tegan 2 web page for luminaire dimensions.

Photometic Performance

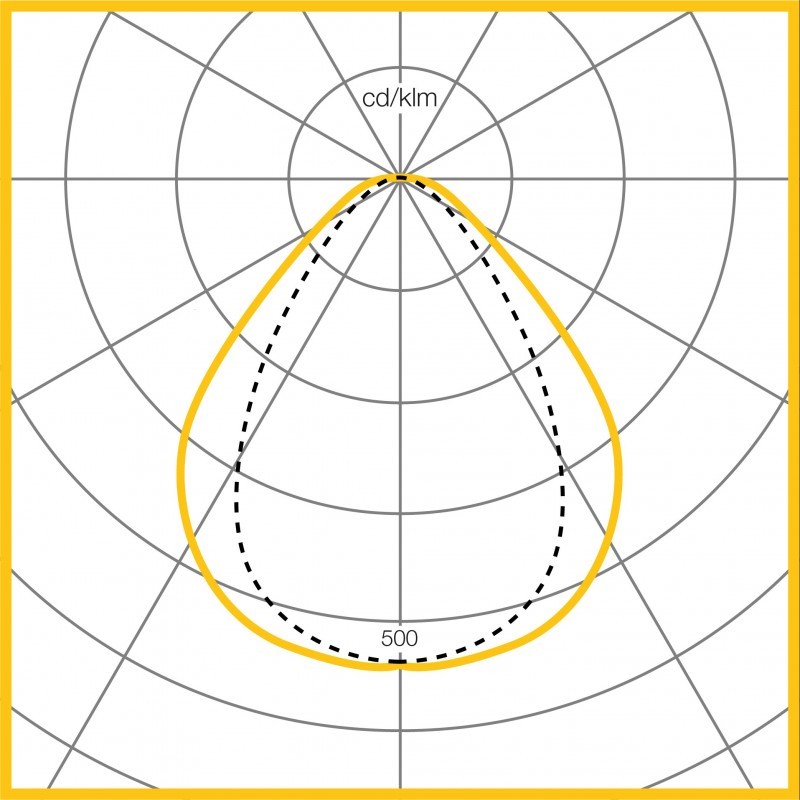

Photometic Performance Diagram - 4000K LED, 2970 lumen, Pod Optic
4000K LED, 2970 lumen, Pod Optic
LOR = 100%
SHR MAX = 1.6

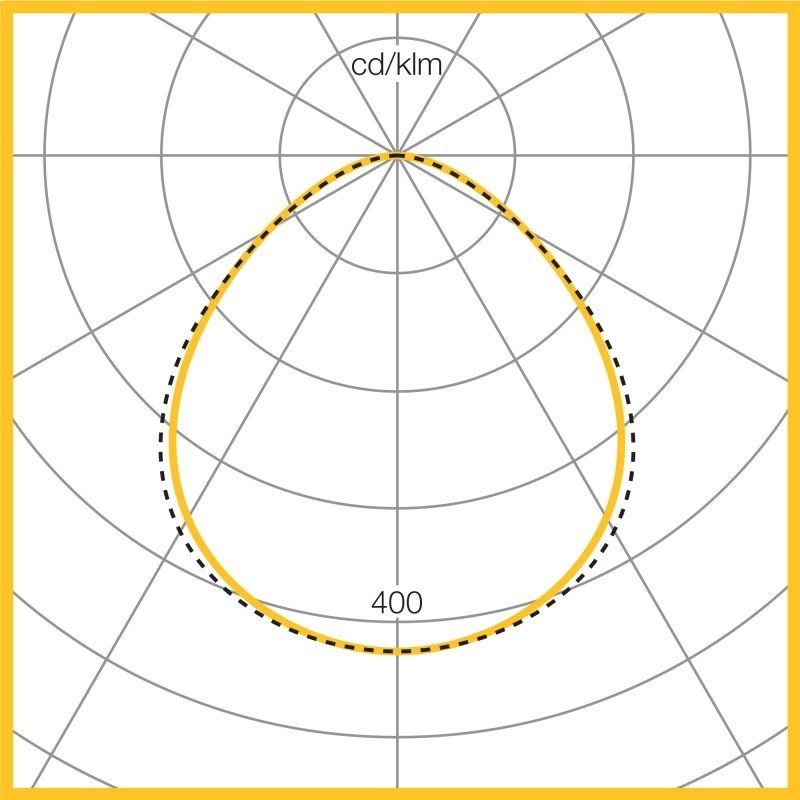

Photometic Performance Diagram - 4000K LED, 2997 lumen, Prismatic
4000K LED, 2997 lumen, Prismatic
LOR = 100%
SHR MAX = 1.6

Robust and protective kit for use with 600 x 600mm (nominal) recessed luminaires in Medium Secure Units. Independently tested and approved in compliance with Department of Health, Medium Secure Specification - as Whitecroft Lighting MSU 600 RECESSED KIT
