Avenue Micro Recessed

Recessed continuous or standalone slim linear feature luminaire

IP40 Made in Britain
Avenue Micro Recessed

Avenue Micro Recessed

Explore our product range

Avenue Micro Recessed

Overview

Avenue Micro offers unparalleled flexibility for linear lighting in any application. Lines of unbroken LED light trace ceilings and walls, bringing buildings to life.

Optics

  • Product available in three lengths with three light outputs (4000K, Fixed output);
    • 564mm - 697 lumens (7.6W) - continuous
    • 1122mm - 1394 lumens (13.6W) - continuous
    • 2244mm - 2787 lumens (27.1W) - continuous
    • 1130mm - 1394 lumens (13.6W) - standalone
  • Micropolymer clip in diffuser for uniform light diffusion
  • Tp(a) rated diffuser
  • 3000K or 4000K LED

Body

  • Recessed linear system for ceiling mounting
  • Available as continuous or standalone
  • Continuous luminaires are supplied complete with continuous mounting kit and brackets and are through-wired as standard
  • IP40 from below (IP20 from behind )
  • LEDs run the entire length of each luminaire, eliminating dark spots and shadows
  • Slim extruded aluminium body finished in textured white
  • RAL Colour: White RAL9003
  • End cap kit to be ordered separately
  • Suitable for Exposed T and plasterboard ceilings
  • Not suitable for wall mounting
  • Avenue Micro Suspended also available, see dedicated web page
  • Available with integral emergency (excluding 600mm long):
    • 3 hour self contained
    • 3 hour addressable test
  • Emergency outputs - 370 lumens
Family Datasheet
 Product Downloads

Enquire about Avenue Micro Recessed

Submit

*Mandatory fields

full width image

  • Continuous
    Continuous Fixed Output LL/CW L70 B50
    L80    		 L90
    697 lumens (7.6W) AMRH1W 84 60K 60K 50K
    1394 lumens (13.6W) AMRH2W 102 60K 60K 50K
    2787 lumens (27.1W) AMRH3W 102 60K 60K 50K

    Note: Luminaire code AMRY3W has 2 drivers and requires 2 DALI addresses

    Standalone
    Standalone Fixed Output LL/CW L70 B50
    L80    		 L90
    1394 lumens (13.6W) AMRSTH2W 102 60K 60K 50K

    Accessories
    End cap kit, (pair) AMRECW

    Options
    DALI Replace H with Y i.e AMRY1W
    3000K Add '3' after 1, 2 or 3 i.e AMRH13W
    3 hour emergency Add suffix 'EM' i.e AMRH2WEM
    3 hour COMEPS emergency Add suffix 'EP' i.e AMRH2WEP

    Note: emergency option not available for 600mm long luminaires

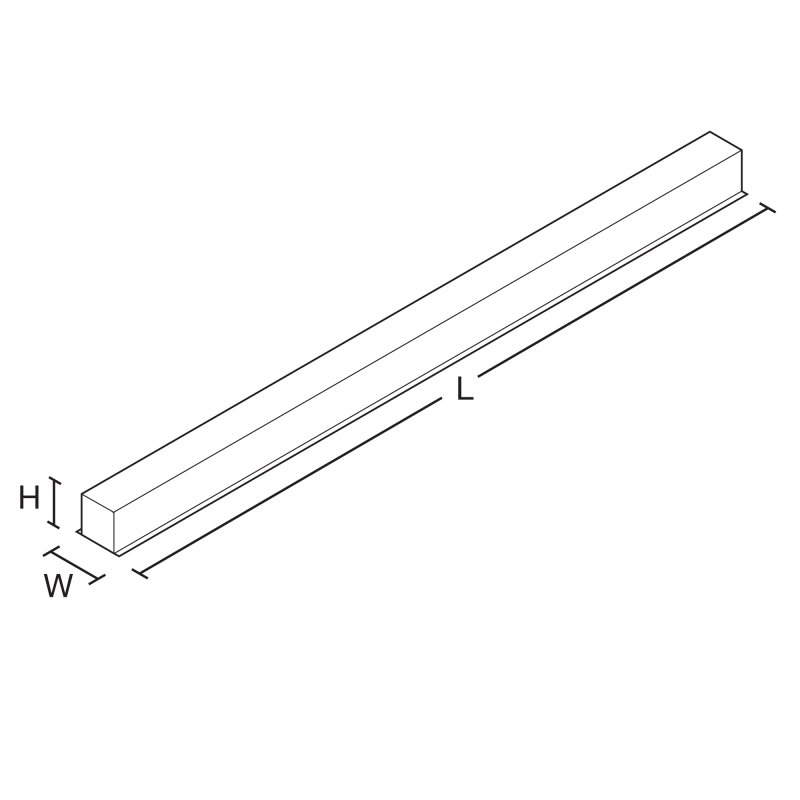

  • Dimensions Diagram 1
    VERSION L W H KG Cut Aperture
    697lm 564 59.6 66 1.3 50 *
    1394lm 1122 59.6 66 2.3 50 *
    2787lm 2244 59.6 66 4.6 50 *

    * 50mm with +4 / -0mm tolerance.
    Cut aperture varies in the length, see installation leaflet for detailed dimensions.

  • Photometic Performance

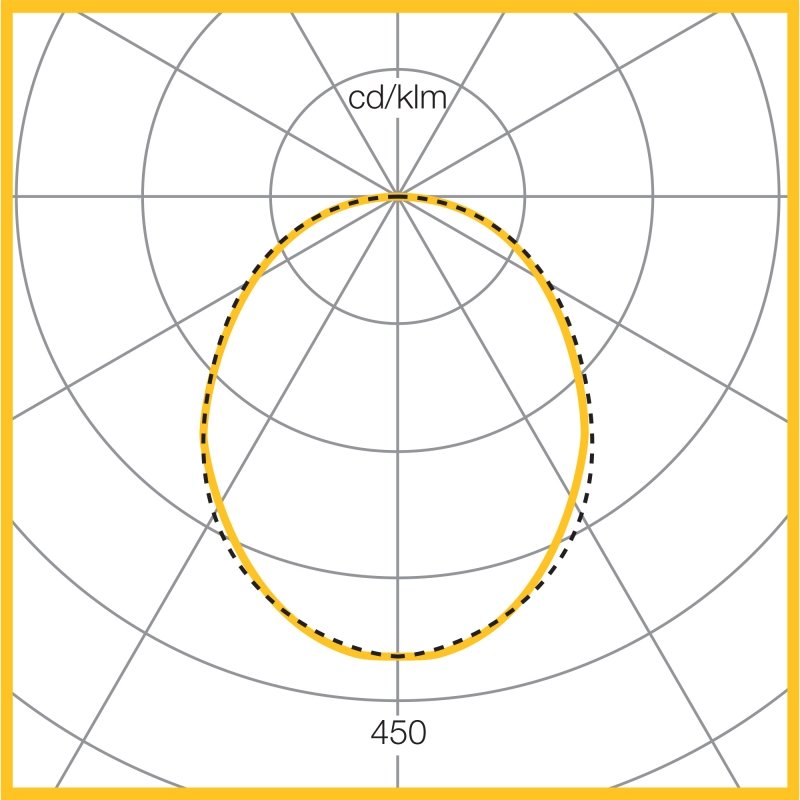

    Photometic Performance Diagram - 697 Lumens 7.6W LED
    697 Lumens 7.6W LED
    LOR = 100.0%
    SHR MAX = 1.49

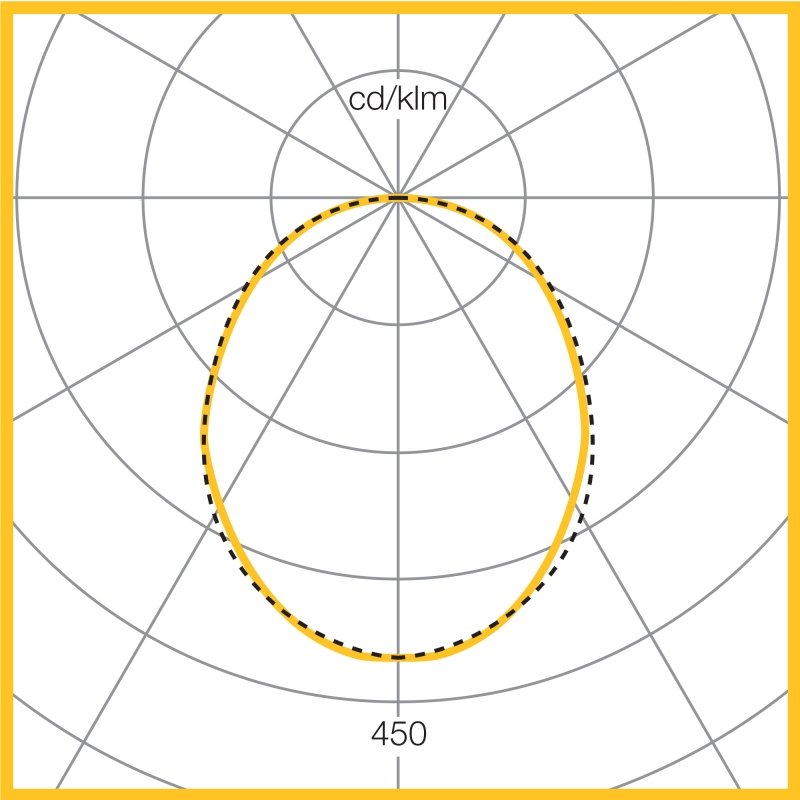

    Photometic Performance Diagram - 1394 Lumens 13.6W LED
    1394 Lumens 13.6W LED
    LOR = 100.0%
    SHR MAX = 1.49

    LED Performance

    Colour Temp RA (CRI) Colour consistency
    4000K >80 MacAdam 3 SDCM

  • Slim-line recessed linear LED luminaire for continuous or standalone application in ceilings. Micropolymer Tp(a) reated diffuser – as Whitecroft Lighting AVENUE MICRO RECESSED.

Product Downloads

Download

Add to ZIP

PDF Avenue Micro Recessed Datasheet
PDF Installation Leaflet
PDF Ceiling Compatibility
PDF Maintenance Factors
ZIP LDT
ZIP Revit
ZIP Dialux
ZIP ies
PDF Thermoplastic Lighting Diffusers
