Overview

A robust protective kit comprising mounting frames, polycarbonate diffuser and tamperproof fixings. Independently tested and approved to comply the rigorous requirements of the Department of Health, Medium Secure Specification (MSS). Over and above IK10 impact rated, the kit enables use of a standard luminaire in a Medium Secure Unit (MSU) environment.

Optics

  • Photometric performance as standard Kolo 400mm diameter

Body

  • To be used in conjunction with a standard Kolo Surface 400mm diameter luminaire
  • Luminaire to be specified separately (see Kolo Surface web page)
  • 1.2mm thick spun steel outer bezel
  • Retained by tamperproof fixing screws
  • Bezel finished white RAL 9003
  • IP44 ingress protection (as standard Kolo luminaire)

Kolo Surface MSU Kit

Description Order Code
Kolo MSU Kit Only MSKITKOLO

Luminaire to be ordered separately

Accessories

Description Order Code
Special access tool HAL-KEY

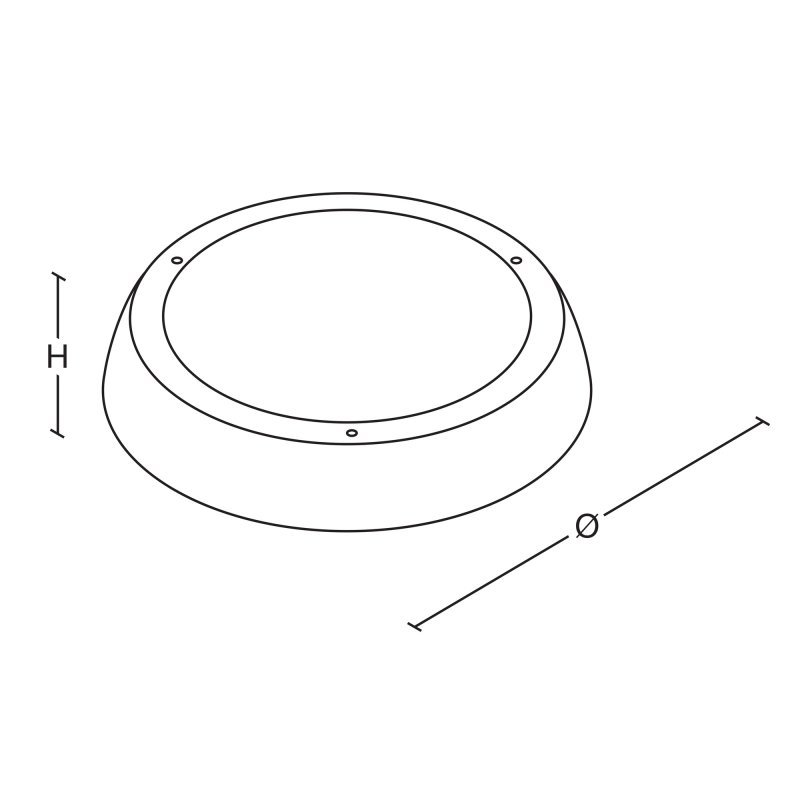

Dimensions Diagram 1
VERSION H KG Ø
Kolo MSU Kit Only 95 2.0 485

See Kolo Surface web page for luminaire dimensions.

Photometic Performance

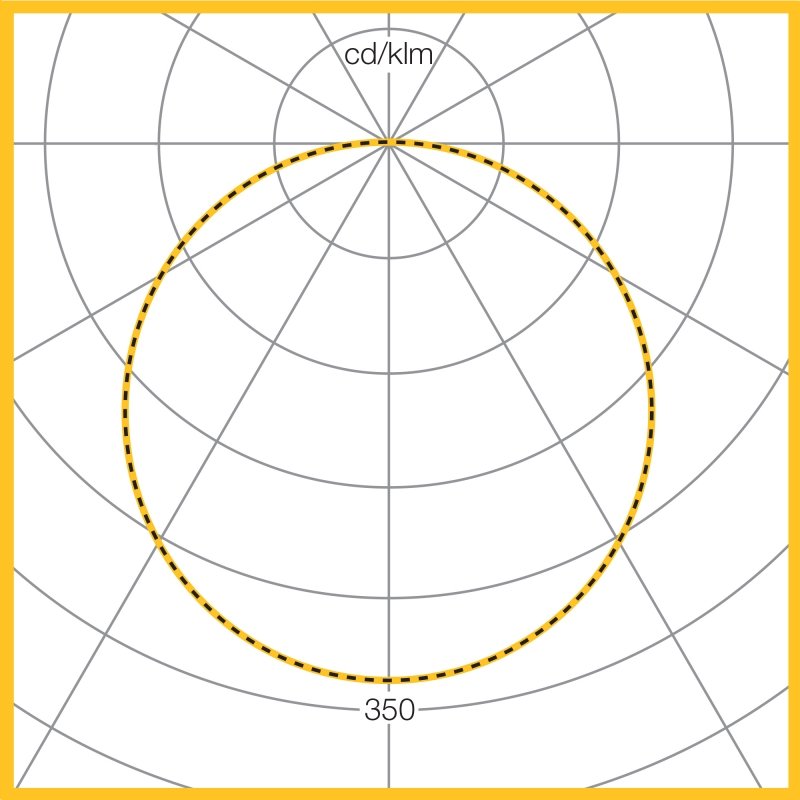

Photometic Performance Diagram - 4000K LED, 2359 lumen
4000K LED, 2359 lumen
LOR = 100%
SHR MAX = 1.64

Robust and protective kit for use with Kolo Surface luminaire in Medium Secure Units. Independently tested and approved in compliance with Department of Health, Medium Secure Specification - as Whitecroft Lighting KOLO MSU KIT
