Overview

Indoor sports facilities such as school sports halls, gymnasia and fitness centres require versatile lighting solutions to suit mounting heights typically between 4m and 8m and to protect from damage from sports equipment including footballs and tennis balls.

Flight Sport is a new generation of sports luminaire offering IK10 protection, a wide distribution pattern and excellent glare control using lens technology.

Suitable for new build or renovation projects, Flight offers a durable installation with low cost of ownership.

Flight is constructed from high quality, sustainable materials and the lightweight body with first fix brackets and plug-in connections ensure a quick yet safe, one-person installation.

High efficacy, long life LEDs with high transmission optics combine to deliver an energy efficient scheme with minimal maintenance. Whitecroft’s commitment to the Circular Economy includes Cradle to Cradle Certified® independent accreditation in Flight Vitality versions.

Optics

  • Wide beam distribution to suit mounting heights from 4m to 12m
  • Light outputs nominal 12,000, 18,000 and 24,000 lumens
  • High efficiency, long life LED light engines, made in our own facility, delivering up to 179 ll/cw for low energy consumption
  • Removable light engine cartridges for easy future upgrades
  • 4000K, Ra80 LED
  • Supports UGR compliance and glare control using Whitecroft’s dedicated lens design
  • Emergency output 869 lumens



Lifetime Data

Version L70B50 L80B50 L90B50
12 & 18 klm >100k >100k 54k
24 klm >100k >100k 53k

Body

  • Extruded aluminium LED housing for optimum strength, thermal management and sustainability
  • Plug and socket connectors are supplied as standard ensuring safe and rapid electrical terminations
  • Surface, suspended, busbar, conduit and trunking mounting methods are all catered for. Suspended only requires an additional suspension kit (FGSUSKIT with 6m wire drop - to be ordered separately)
  • Suspension kit to be ordered separately
  • Luminaire body can be unplugged and unclipped allowing safe and easy maintenance at ground level
  • Light, compact body - does not require support during secondary operation allowing a one-person installation
  • Emergency lighting options with integral 3 hour batteries include self-contained for simple key switch testing or COMEPS DALI addressable for automatic testing and reporting
  • Emergency LiFePO4 Lithium batteries offering a longer life, reducing the number of replacements through life and which can be recycled at the end of useful life
  • DALI drivers as standard
  • Suitable for ambient temperature ranges:
    • -30 to 40ºC - standard IP20
    • -30 to 35ºC - standard IP65
    • 0 to 30ºC - emergency EM/EP IP20/65
full width image

Click on part code below for downloads

Part Code Distribution IP Rating Output (lm) Power (W) Driver Type Emergency Type Length (mm) Controls Nominal Lumens
FVSWY14K Wide IP40 11972 67 DALI LED Driver N/A 585 N/A 12000
FVSWY14KEM Wide IP40 11972 67 DALI LED Driver 3 hr EM LiFeP04 585 N/A 12000
FVSWY14KEP Wide IP40 11972 67 DALI LED Driver 3 hr EP LiFeP04 585 N/A 12000
FVSWY24K Wide IP40 18173 103.4 DALI LED Driver N/A 585 N/A 18000
FVSWY24KEM Wide IP40 18173 103.4 DALI LED Driver 3 hr EM LiFeP04 585 N/A 18000
FVSWY24KEP Wide IP40 18173 103.4 DALI LED Driver 3 hr EP LiFeP04 585 N/A 18000
FVSWY34K Wide IP40 24150 143 DALI LED Driver N/A 585 N/A 24000
FVSWY34KEM Wide IP40 24150 143 DALI LED Driver 3 hr EM LiFeP04 585 N/A 24000
FVSWY34KEP Wide IP40 24150 143 DALI LED Driver 3 hr EP LiFeP04 585 N/A 24000

Click on part code below for downloads

Part Code Distribution IP Rating Output (lm) Power (W) Driver Type Emergency Type Length (mm) Controls Nominal Lumens
FGSUSKIT N/A N/A N/A N/A N/A N/A N/A

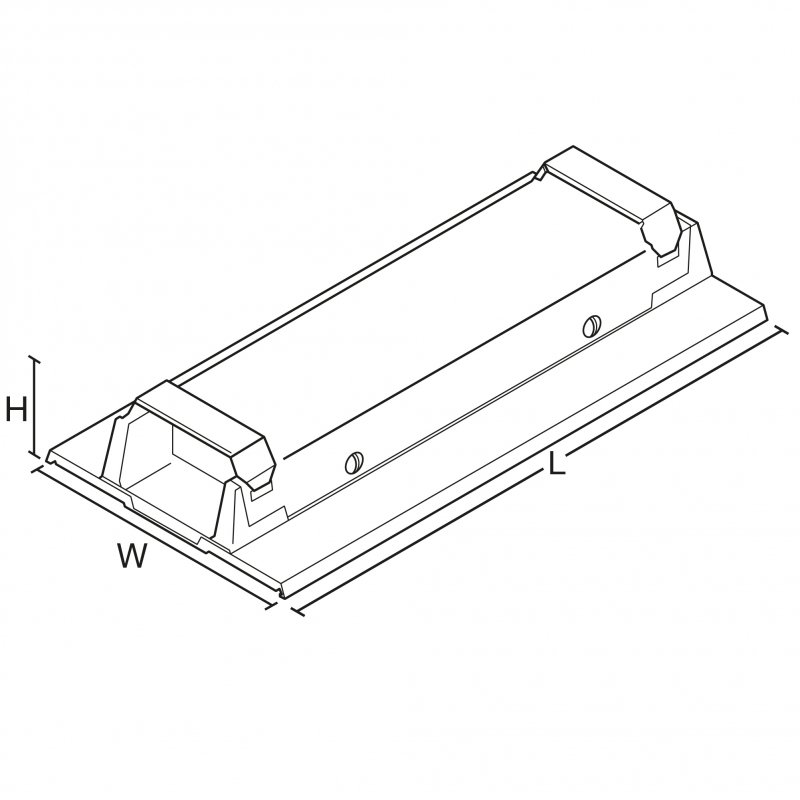

Dimensions Diagram 1
FLIGHT SPORT VITALITY VERSIONS L W H KG KG(EM)
All 585 285 75 4.9 5.3

Photometic Performance

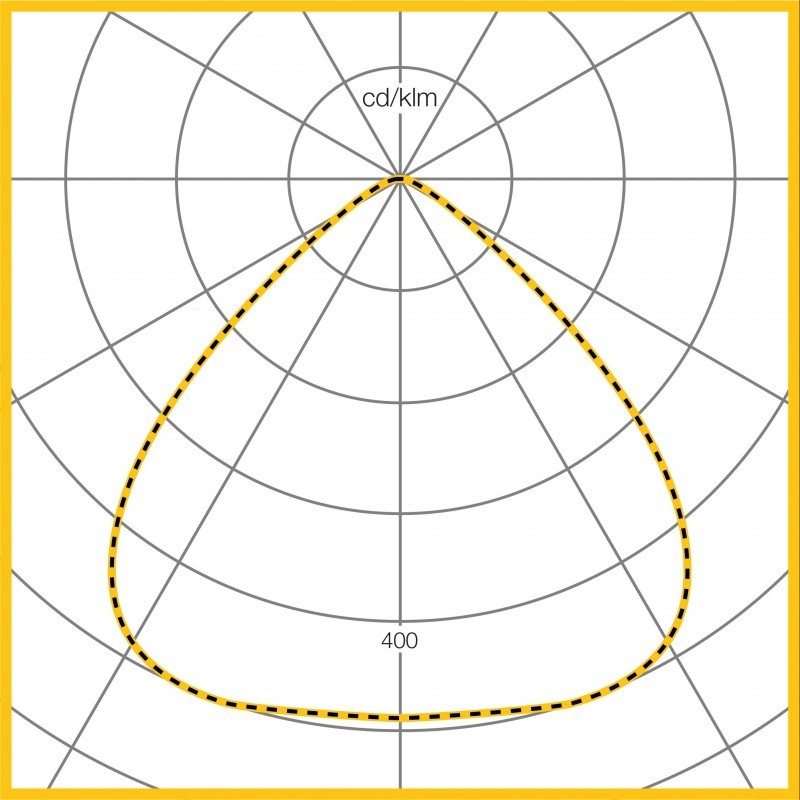

Photometic Performance Diagram - Wide Beam
Wide Beam
LOR = 100%
Photometic Performance Diagram - N/A
N/A
LOR = N/A%

Surface or suspended IK10 impact protected LED luminaire with extruded aluminium LED housing and clear polycarbonate lens optics. Supplied with first fix bracket and plug connector for easy installation. The LED module is easily replaced for simple future upgrades and replacement ensuring a sustainable lighting solution. Materials and manufacturing facility with independent Cradle to Cradle Certified® accreditation - as Whitecroft Lighting FLIGHT SPORT VITALITY
