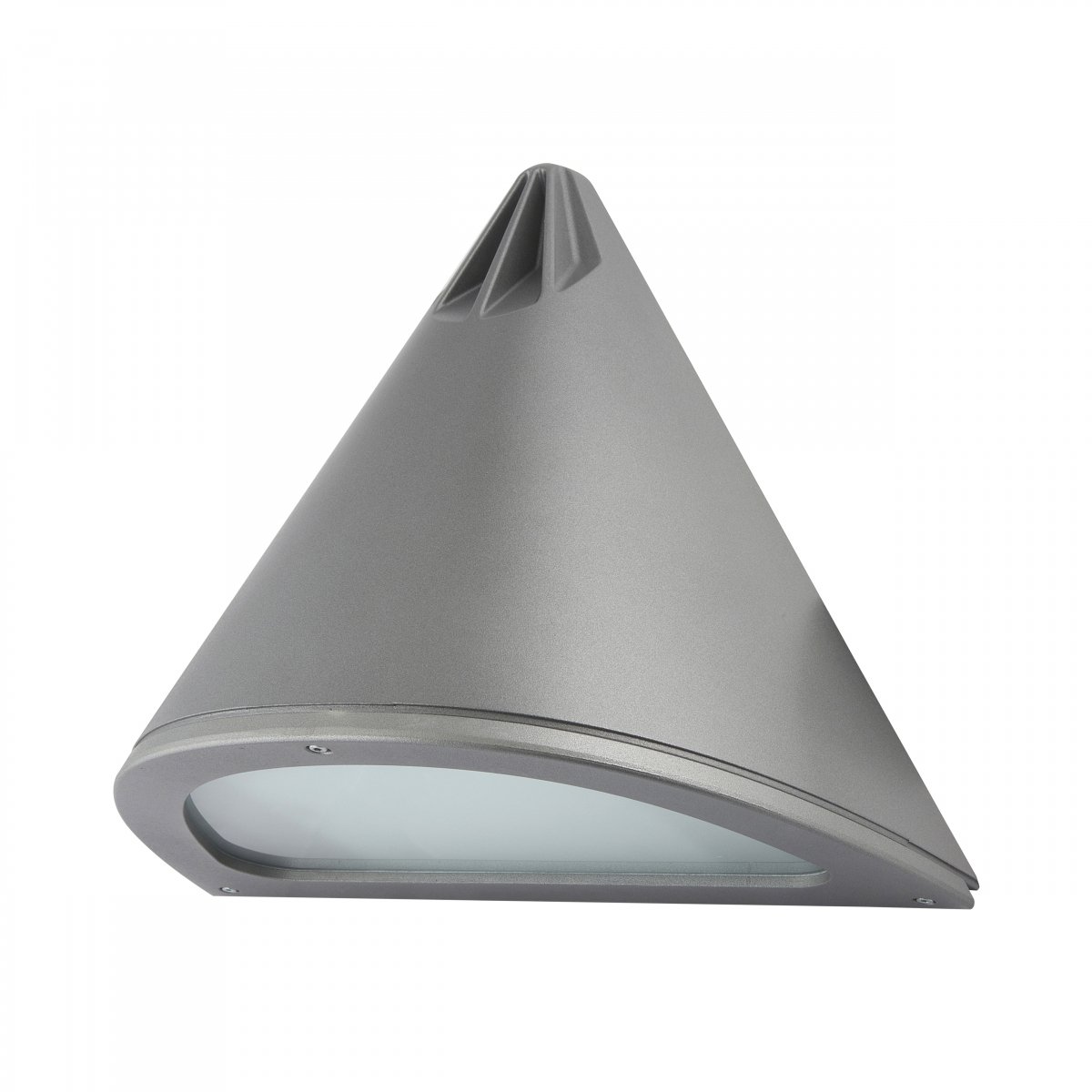

Spectre WX

Spectre WX

Spectre WX

Spectre WX

Optics

  • Light output:
    • 1526 lumens (4000K - 17W)
    • 1419 lumens (4000K - 17W)
    • 1119 lumens (4000K - 9W)
    • 1007 lumens (3000K - 9W)
  • 4000K and 3000K LED options
  • Emergency Output (BLF):
    • All variants - 704 Lumens
  • Forward throw downward distribution
  • 4mm thick, thermal shock resistant, tempered clear flat glass

Body

  • Die cast aluminium
  • Coated for corrosion and saline environment resistance
  • For outdoor applications within 3km of the coast, an enhanced paint finish can be offered on request
  • IP65 IK07 rated protection
  • 1st fix wall mounting backplate
  • Finished in polyester powder coated Graphite Grey (RAL7024)
  • Fixed output as standard, DALI optional
  • Suitable for ambient temperatures between:
    • -20°C to +40°C (standard versions)
    • -5°C to +25°C (emergency versions)
  • Choice of integrated emergency options:
    • 3 hour self contained
    • 3 hour COMEPS addressable

Spectre WX

Description Code - Fixed Output, Graphite 3hr Emergency LL/CW L70
LED 1119 lumen (4000K, 9W) SPXAH14KG SPXAH14KGEM 124 60k
LED 1007 lumen (3000K, 9W) SPXAH13KG SPXAH13KGEM 111 60k
LED 1526 lumen (4000K, 17W) SPXAH24KG SPXAH24KGEM 89 60k
LED 1419 lumen (3000K, 17W) SPXAH23KG SPXAH23KGEM 83 60k

Options

COMEPS Add suffix /EP i.e SPXAH14KG/EP
DALI driver* Change 'H' to 'Y' i.e. SPXAY14KG
3000K LED Change '4K' to '3K' i.e. SPXAH13KG

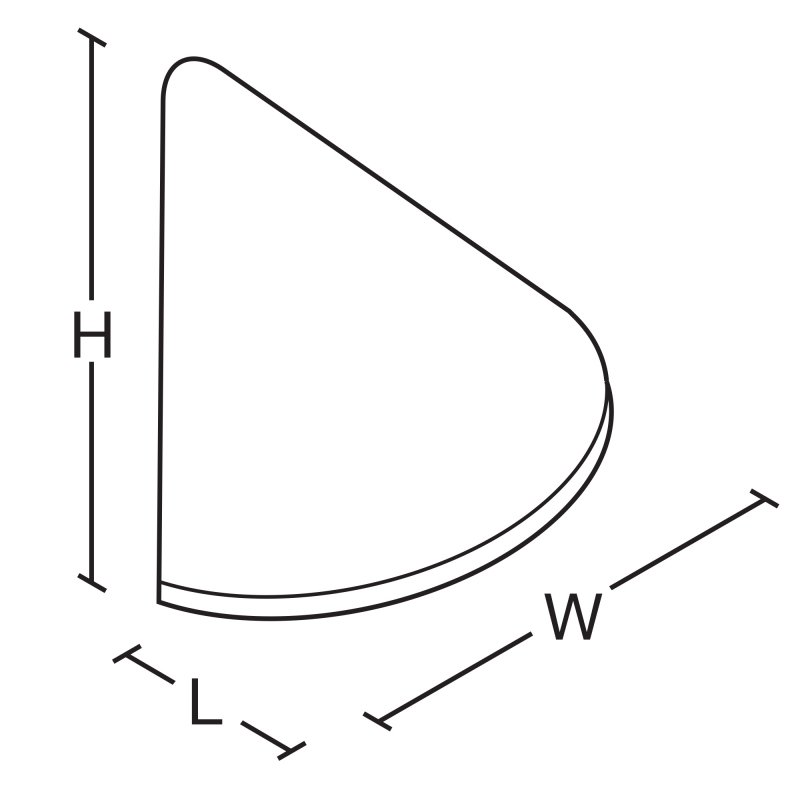

Dimensions Diagram 1
L W H KG KG(EM)
224 375 329 4 4.5

Photometic Performance

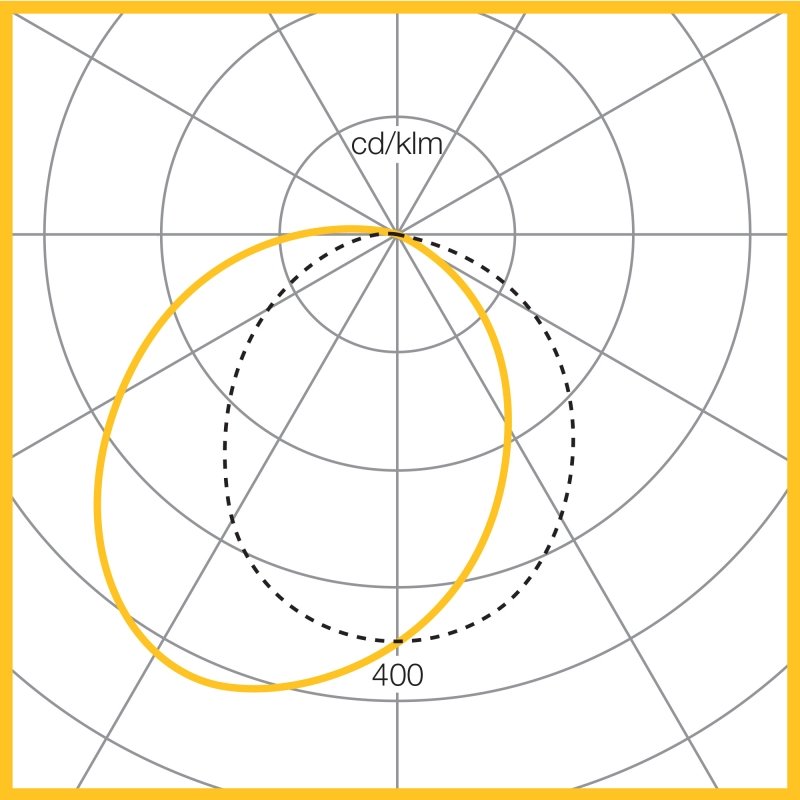

Photometic Performance Diagram - 17.9W 1119 Lumen
17.9W 1119 Lumen
LOR = 100.0%

LED Performance

Colour Temp RA (CRI) Colour consistency
4000K >80 MacAdam 4 SDCM

IP65 Wall mounted conical LED luminaire with die cast aluminium body. With forward throw downward distribution having less than 2% upward light – as Whitecroft Lighting SPECTRE WX
